Brief introduction:
Universal Electronic Engine Governor ControllerThe EG2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed...MORE >>
Classification:Speed Controller
Size:20X15X10 cm
Weight:1KG
Price:
Introduction

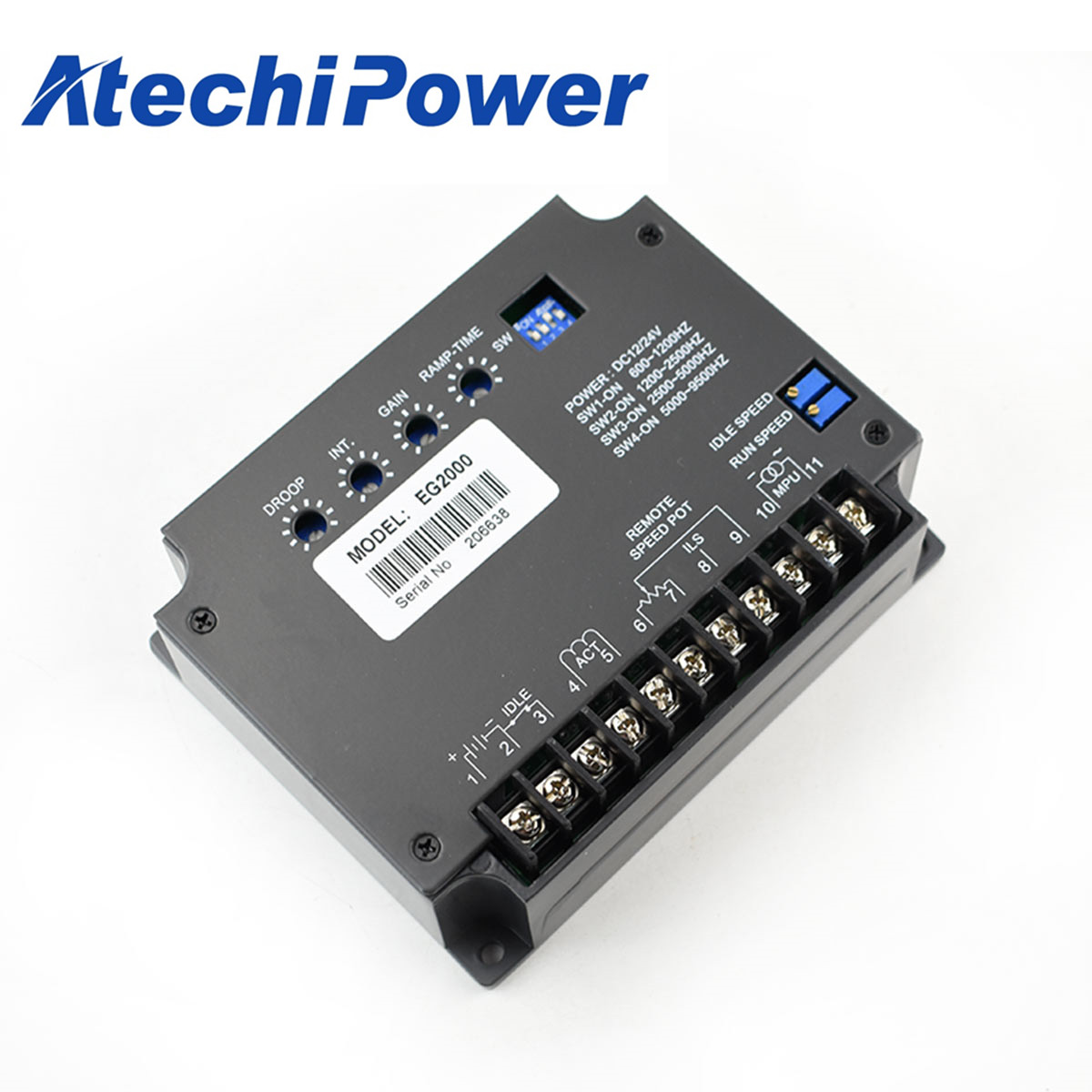

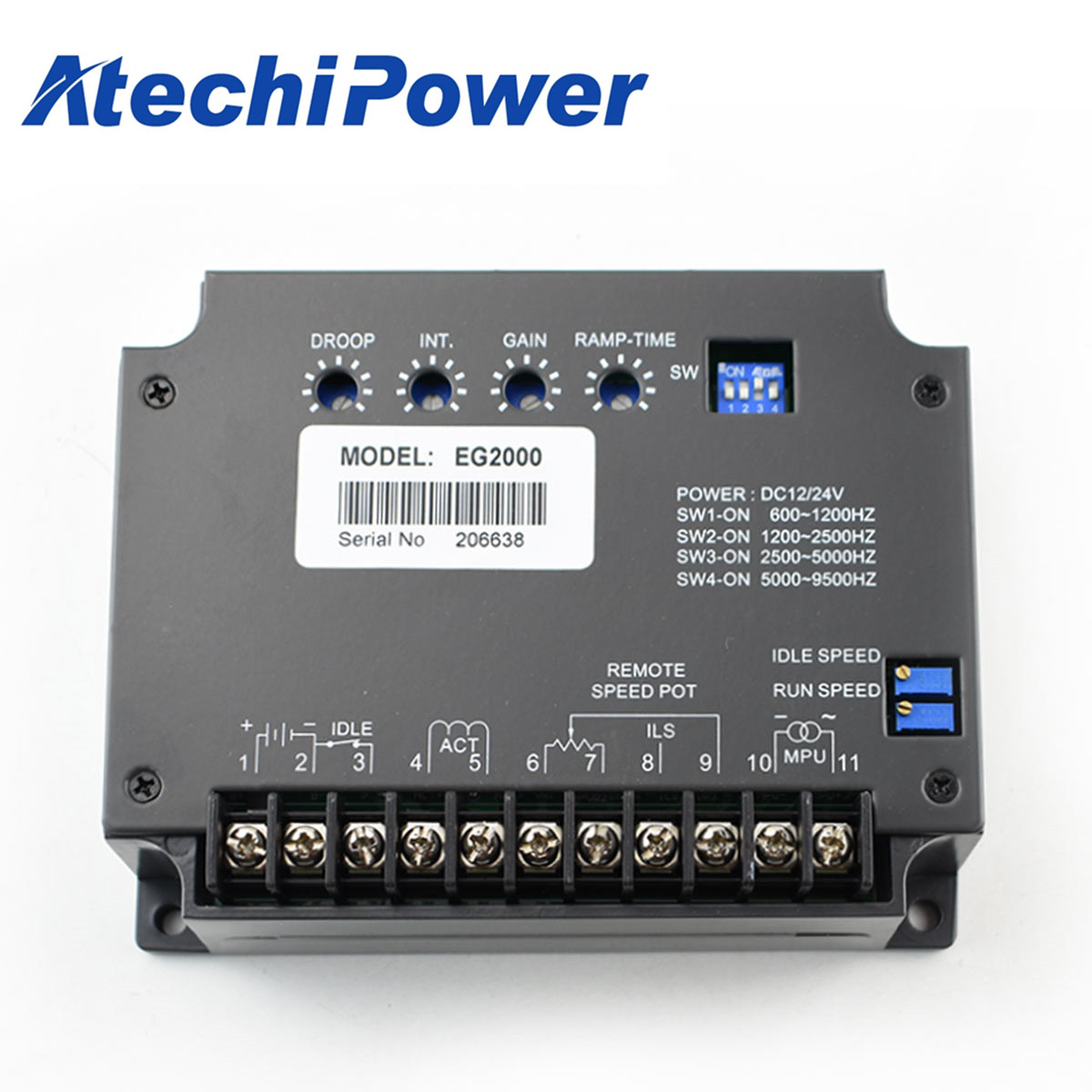

Universal Electronic Engine Governor Controller
The EG2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators.
Features
· Works on a wide ranges of MPU/flywheel frequencies
· 15 Amp Max Output
· Suitable for all types of diesel and Gas engines
· High Sensitivity and stable at Low Frequency Variations
· Moisture, vibration, and rust protected, Epoxy encapsulated electronics
· For Use With Isochronous Generators & Automatic Paralleling PLC controls
· Idle Speed Adjustment and connections for a Remote Speed POT
The EG2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators.
*Works on a wide ranges of MPU/flywheel frequencies
*15 Amp Max Output
*Suitable for all types of diesel and Gas engines
*High Sensitivity and stable at Low Frequency Variations
*Moisture, vibration, and rust protected, Epoxy encapsulated electronics
*For Use With Isochronous Generators & Automatic Paralleling PLC controls
*Idle Speed Adjustment and connections for a Remote Speed POT
Operating Voltage | 12 or 24 VDC ±20% |
Output Current | 0.5 ~ 15 A |
Run Speed Adjustment range | Speed adjustment Potentiometer (30 turn); 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz. |
Idle Speed Adjustment Range | Run Speed 30 ~ 85% |
Ramp Time | 3 ~ 20 Sec |
Remote Speed Pot | Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 Connect a 5K potentiometer ±5% adjustment range. |
Temp. Stability | <0.01% |
Run Speed Stability | ± 0.25 % at steady state |
MPU input signal | 1 ~ 120VAC RMS |
Droop | 4.00% |
Adjustment | Run Speed, Idle Speed, Ramp Time, Droop, Integration, Gain |
Mechanical Vibration | 1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz |
Relative Humidity | < 95% |
Operating Temperature | -40 ~ 85℃ |
Storage Temperature | -40 ~ 85℃ |
Dimensions | 147mm L * 114mm W * 50mm H |
Weight | 690g ± 2% |
