Brief introduction:
The PER5111 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.Isochro...MORE >>
Classification:Speed Controller
Size:20X15X10 cm
Weight:1KG
Price:
Introduction

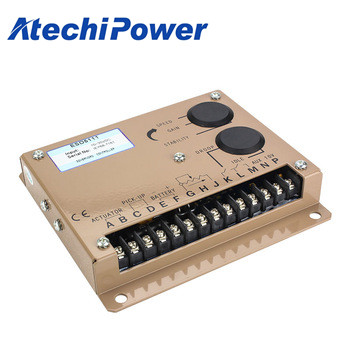

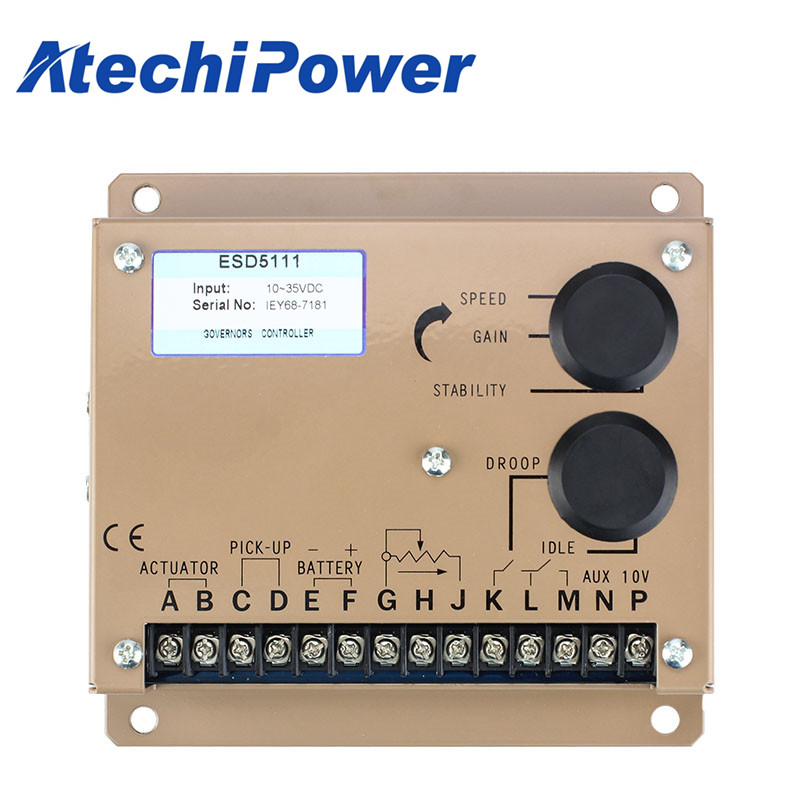

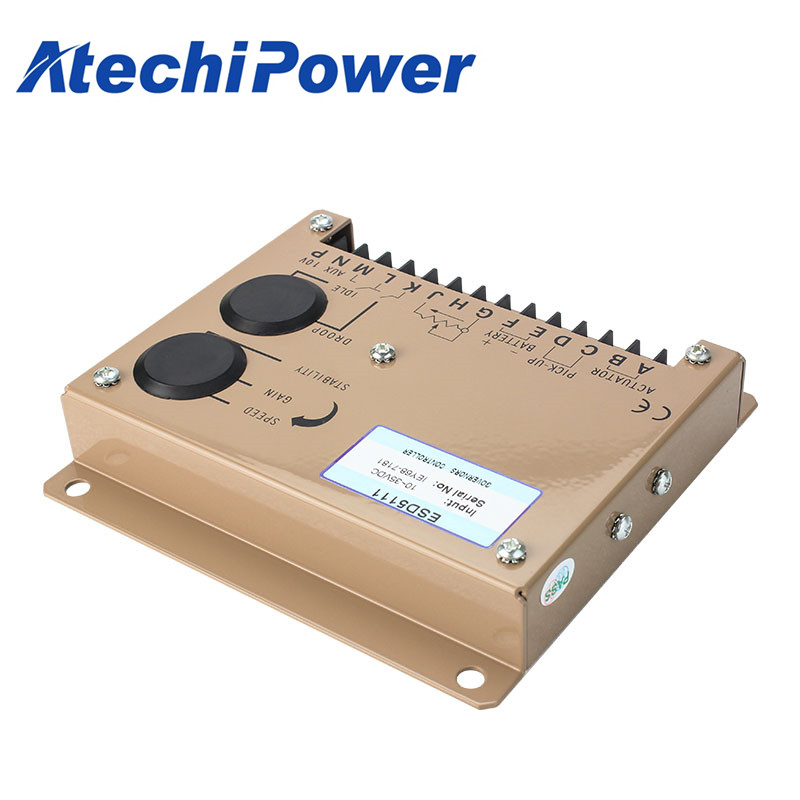

The PER5111 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
Isochronous Operation/Steady Stability: +/-0.25% or better
Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
Power Consumption: 50 ma continuous plus acutator current
Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
PERFORMANCE |
||
Isochronous Operation/Steady State Stability |
± 0.25% or better |
|
Speed Range/Governor |
1K-7.5K Hz continuous |
|
Speed Drift with Temperature |
± 1% Maximun |
|
Idle Adjust CW |
Min. 1200Hz. below set speed |
|
Idle Adjust CCW |
Min. 4100Hz. below set speed |
|
Droop Range |
1-5% regulation |
|
Droop Adj. Max. (K-L Jumpered) |
875Hz., ± 75Hz. per 1.0 A change |
|
Droop Adj. Min. (K-L Jumpered) |
15Hz., ± 6Hz. per 1.0 A change |
|
Speed Trim Range |
± 200Hz. |
|
Remote Variable Speed Range |
500 -7.5Hz. or any part thereof |
|
Terminal Sensitivity |
J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance |
|
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance |
||
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance |
||
P: 10V DC Supply @ 20ma Max. |
||
Speed Switch Adjustment Range |
1000-10000Hz. |
|
ENVIRONMENTAL |
||
Ambient Operating Temperature Range |
-40°c to +85°c |
|
Relative Humidity |
up to 95% |
|
Storage Temperature |
-55°c ~ 90°c |
|
Shock |
20-100HZ 500mm/Sec. |
|
INPUT POWER |
||
Supply |
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) |
|
Polarity |
Negative Ground(Case Isolated) |
|
Power Consumption |
50mA continuous plus actuator current |
|
Maximum Actuator Current at 25 |
10Amps continuous |
|
Speed Sensor Signal |
0.5-120 Volts RMS |
|
PHYSICAL |
||
Weight |
630g |
