Brief introduction：
AVR ETC-1 Original Generator Spare Parts ETC-1 AVR Automatic Voltage Regulator EVOTEC
Other model: ETC-A1
Product DescriptionInput Voltage Jumper selectable 95-...MORE >>
Classification：
Size：
Weight：
Price：
Introduction

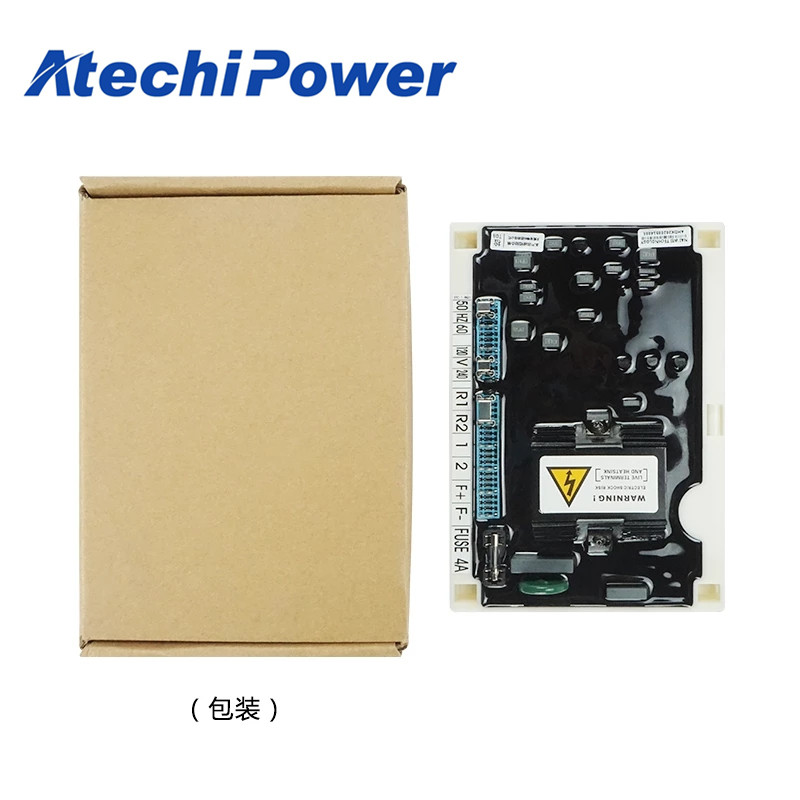

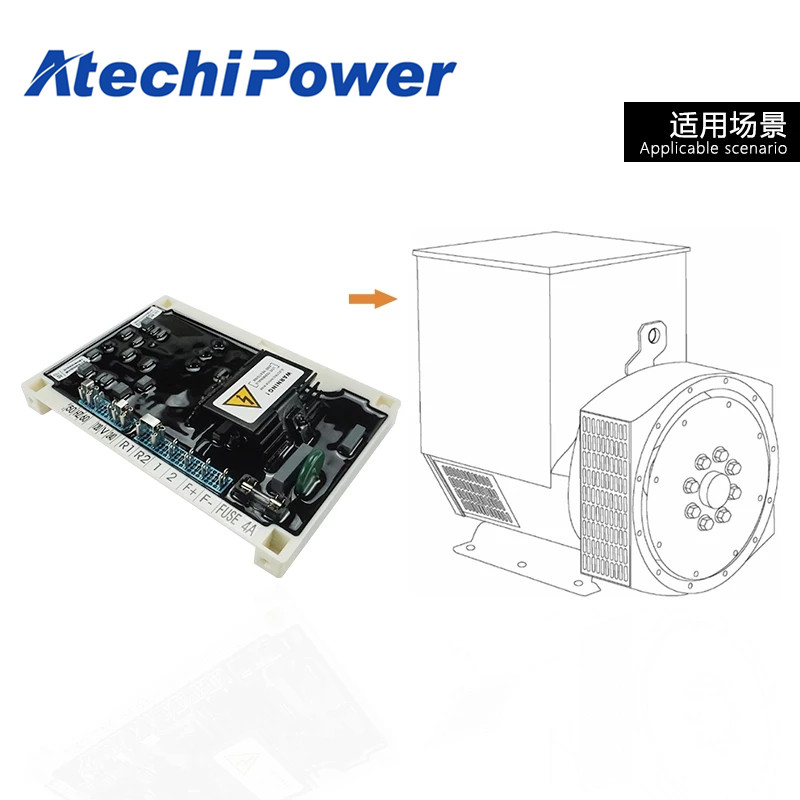

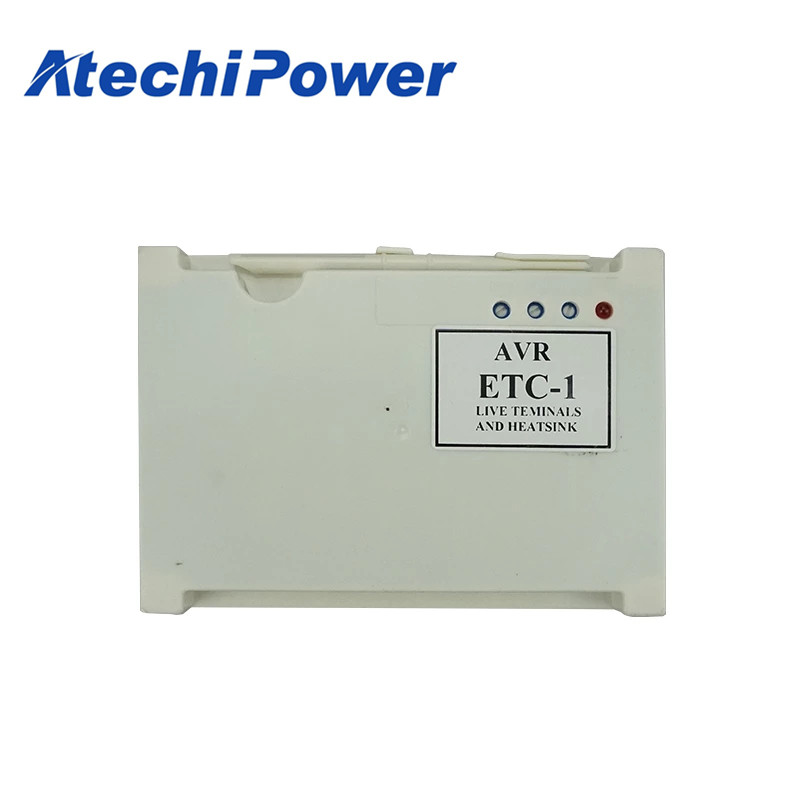

AVR ETC-1 Original Generator Spare Parts ETC-1 AVR Automatic Voltage Regulator EVOTEC
Other model: ETC-A1
Product Description
Input Voltage Jumper selectable 95-132V ac or 190-264V ac Frequency 50-60Hz 2Phase/2wire Output Voltage max 90V dc at 207V ac input Current continuous 4 A dc Intermittent 7.5 A for 10secs Resistance 15 ohms minimum Regulation ±1.5%(With 4% engine governing) Typical System Response AVR response 20 ms External Voltage Adjustment ±5% with 1 k ohm 1 watt trimmer Under Frequency Protection set point 47 Hz Unit Power Dissipation 10 watts maximum Build Up Volitage 5 volts @ AVR terminals
Atechi Power Machinery Co., Ltd., located in Shanghai, China, is a professional supplier of generator spare parts and accessories. We provide full range of spare parts and accessories for generating set which include control module, sensors, meters, fuel pumps, mains floating charger, relay, engine starter, DC alternator, solenoid, lock and hinges, soundproof material, ATS etc. In one word, Atechi aims to provide one-stop service for your generator spare part demand. The quality of our spare parts is very reliable because we have used original and genuine spare parts used by the original engine manufacturer.
