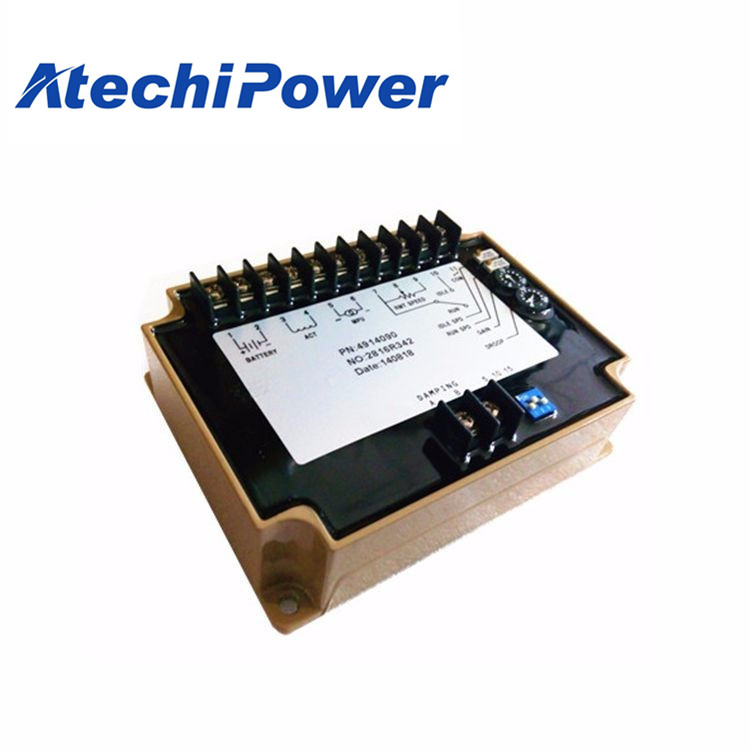

Brief introduction:
The generator set speed governor 4914091 is designed for Compatible with Compatible with diesel generator sets with delay start and speed regulating function.....MORE >>
Classification:Speed Controller
Size:20X15X10 cm
Weight:1KG
Price:
Introduction
The generator set speed governor 4914091 is designed for Compatible with Compatible with diesel generator sets with delay start and speed regulating function..
1. Application Features
A. Low smoke displacement, soft noise
B. Easily start in cold, plateau and Ww pressure areas, especially for N-G-250kw and K-G-300kw sets.
C. High ability to anti-disturbance Stable operation due to the large power walkie-talkie·
D. Actuator can not be damaged in case of short circuit due to
The output protector.
E. Diesel with water pump cam start with wad, the range of round per minute cam be ± 600, that is 1000-1200 rpm.
2. Principles
The oil valve of the speed regulator is totally
Open and if the supercharger low-speed and with little
Air input, So it is difficult to ignite the fuel and cannot
Completely ignite and have thick smoke displacement. It starry400-1200rpm, It need 3-5or 10-20 minute
To accelerate.
It can easily start if we decrease the oil input. After it start, then increase' The oil input, the speed and the diesel generator temperature will increase gradually. Thus, the smoke displacement is Ww and the noise is soft.
The operation of and use of the set after start is same as other regulators.
Specification
RPM Stability: | <±0.25% |
Speed Range: | 1KHz ~ 6.5KHz |
Thermal Stability: | Max ±0.7% |
IDLE Regulation: | 260 ±20Hz |
DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
Maximum: 400Hz ±75Hz/ 1 Amp | |
External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
Impedance: | 1MΩ |
ENVIRONMENT: | |
Working Humidity Range: | Maximum 95% |
Environment Temprature: | '-15 ~ 55 °C |
Shocking: | 25HZ 2mm |
INPUT POWER SUPPLY: | |
Voltage: | 24V DC |
Grounding Pole: | Negative pole |
Power Supply: | Negative pole |
Actuator Continuous Current: | Maximum 2.5A |
Insulating strength | ≥500MΩ |
