Brief introduction:
Engine Speed Controller Governor 4914090 for Generator PartsProduct DescriptionFEATURE 4914090 RPM Stability: <±0.25% Speed Range: 1...MORE >>
Classification:Speed Controller
Size:20X15X10 cm
Weight:1KG
Price:
Introduction

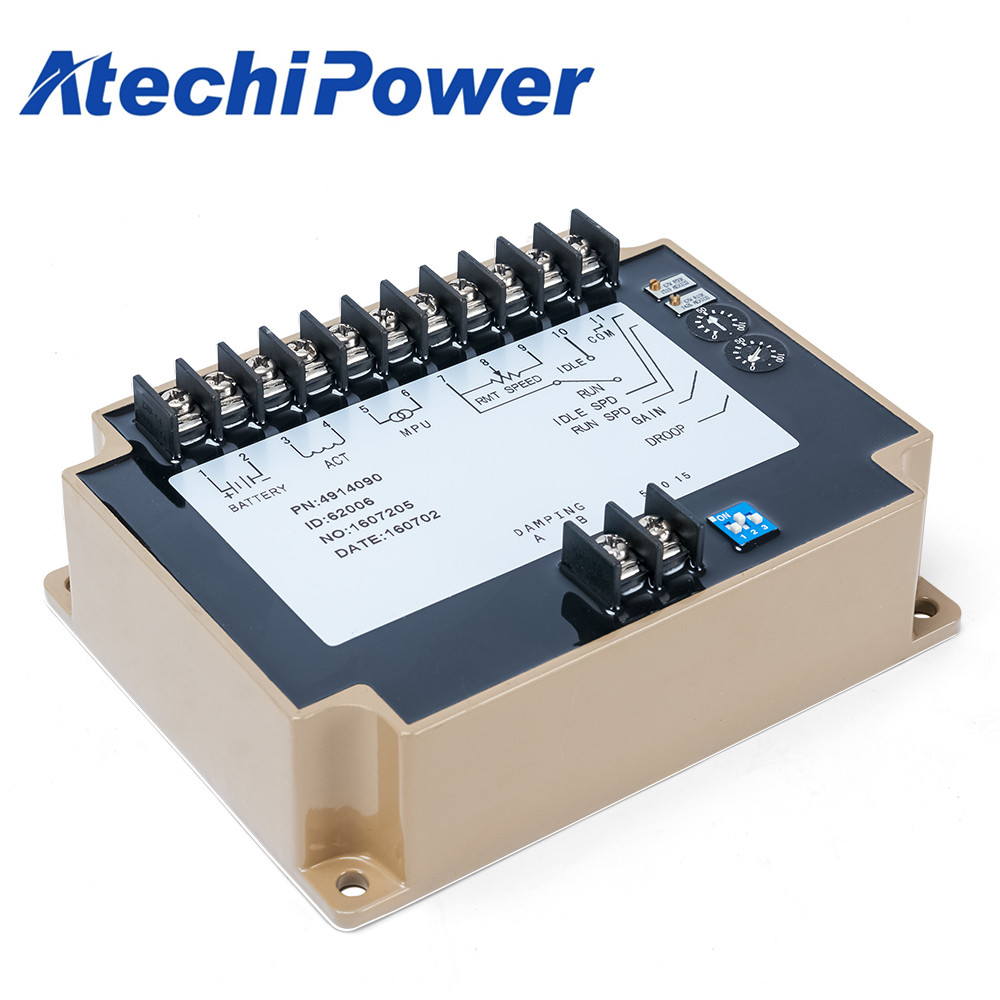

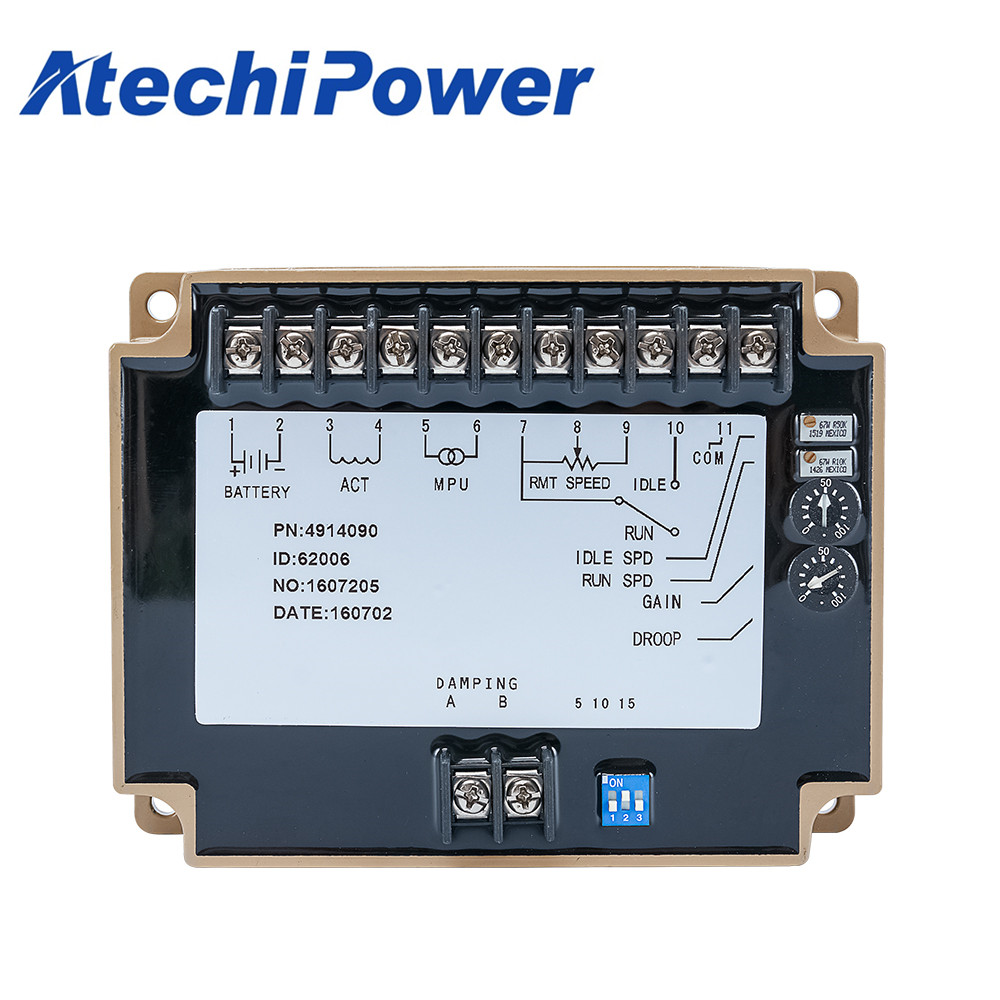

Engine Speed Controller Governor 4914090 for Generator Parts
Product DescriptionFEATURE
4914090 | |
RPM Stability: | <±0.25% |
Speed Range: | 1KHz ~ 6.5KHz |
Thermal Stability: | Max ±0.7% |
IDLE Regulation: | 260 ±20Hz |
DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp |
Maximum: 400Hz ±75Hz/ 1 Amp | |
External Speed Regulation: | ±200Hz (with 1 KΩ connected) |
AUX Input Sensitivity: | 148Hz / 1V., ±10Hz |
Impedance: | 1MΩ |
ENVIRONMENT: | |
Working Humidity Range: | Maximum 95% |
Environment Temprature: | -15 ~ 55 °C |
Shocking: | 25HZ 2mm |
INPUT POWER SUPPLY: | |
Voltage: | 12 or 24V DC |
Grounding Pole: | Negative pole |
Power Supply: | Negative pole |
Actuator Continuous Current: | Maximum 2.5A |
insulating strength | ≥500MΩ |
Atechi Power Machinery Co., Ltd., located in Shanghai, China, is a professional supplier of generator spare parts and accessories. We provide full range of spare parts and accessories for generating set which include control module, sensors, meters, fuel pumps, mains floating charger, relay, engine starter, DC alternator, solenoid, lock and hinges, soundproof material, ATS etc. In one word, Atechi aims to provide one-stop service for your generator spare part demand. The quality of our spare parts is very reliable because we have used original and genuine spare parts used by the original engine manufacturer.
Tel :+8618603828127
Add.:No.5780 Hunan RD,Pudong Shanghai 201317,China
Email :info@Atechipower.com
