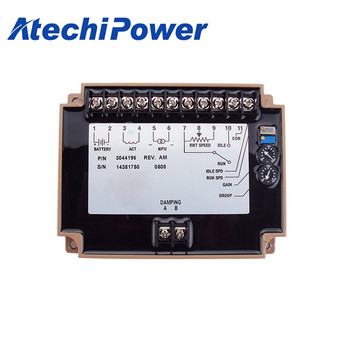

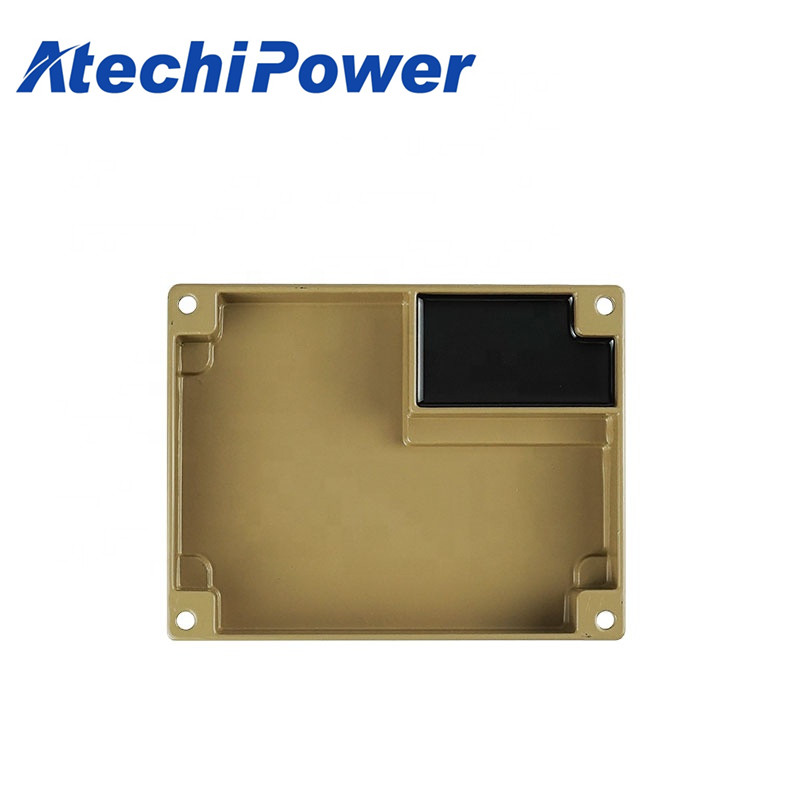

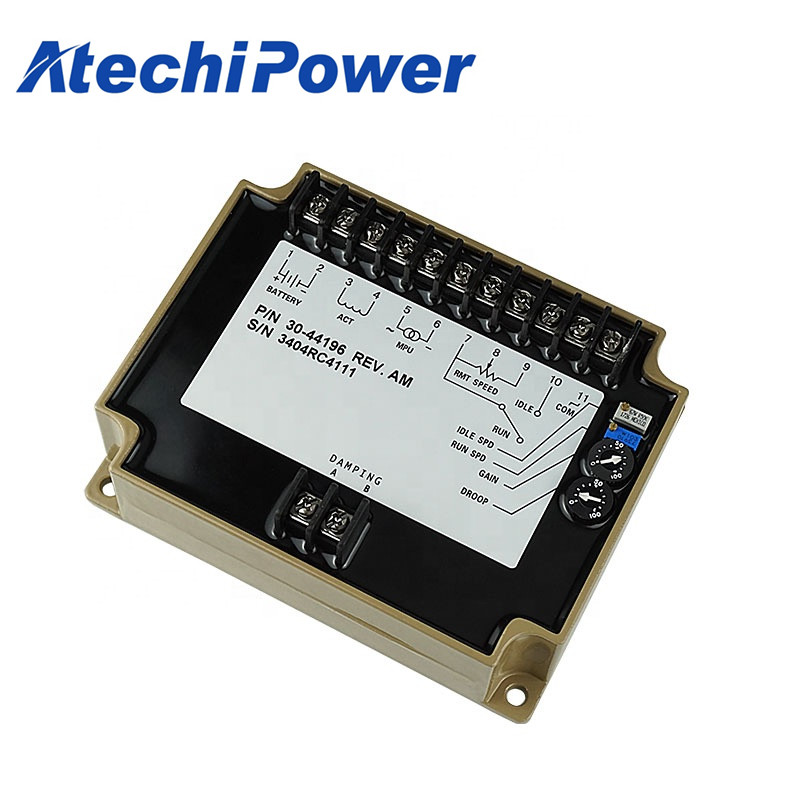

3044196 speed governor

Brief introduction：

EFC3044196 is a engine speed controller designed by all electronic device for 's actuator.* It can fast and precise response to transient load changes.* It ...MORE >>

Classification：Speed Controller

Size：20X15X10 cm

Weight：1KG

Price：

Introduction

EFC3044196 is a engine speed controller designed by all electronic device for 's actuator.

* It can fast and precise response to transient load changes.

* It has a wide speed control range.

* For these controllers, separate circuits allow adjustments of proportional, integral and derivative values.

*These parameters all work together to provide a control that results in fast and stable engine response to load changes

3044196
Input	Supply	24 VDC ±20%
	Polarity	Negative Ground (Case Isolated)
	Power Consumption	40 MA
	Maximum Actuator Current	4.5 A continuous
	Speed Sensor Signal	2-120 Volts RMS
Performance	Isochronous Operation/Steady State Stability	±0.25% or better
	Speed Range/Governor	1K to 6.5K Hz continuous
	Speed Drift with Temperature	±1 Max
	Idle Regulation	260±20 Hz
	Droop Adj. Max.	400 Hz., ±75Hz. Per 1.0A change
	Speed Trim Range	±200 Hz with 1 ohm connected
	Remote Variable Speed Range	25 to 100% of rated speed
	Impedance	1m ohms
Environmental	Ambient Operating Temperature Range	-40 to +85 Deg. C
	Relative Humidity	Up to 95%
	All Surface Finishes	Fungus Proof and Corrosion Resitant
Reliability	Vibration	20 to 100 Hz. 500mm/sec
