Brief introduction：
Rpm stability: <± 0.25%
Speed range: 1KHz ~ 6.5KHz
Thermal stability: Max ± 0.7%
Idle regulation: 260 ± 20Hz
Droop regulation: Minim...MORE >>
Classification：Speed Controller
Size：20X15X10 cm
Weight：1KG
Price：
Introduction
Rpm stability: <± 0.25%
Speed range: 1KHz ~ 6.5KHz
Thermal stability: Max ± 0.7%
Idle regulation: 260 ± 20Hz
Droop regulation: Minimum 15Hz ± 6Hz/ 1 amp
Maximum: 400Hz ± 75Hz/ 1 amp
External speed regulation: ± 200Hz (with 1 kω Connected)
Aux input sensitivity: 148Hz / 1v., ± 10Hz
Impedance: 1mω
Working temp range: -40 ~ 85
2)Environment:
Working humidity range: Maximum 95%
Stocking temp: -55 ~ 92
Shocking: 20-100Hz 500mm/sec.
Input power supply
Voltage: 24v
Grounding pole: Negative pole
Power supply: 40ma
Actuator continuous current: Minimum 1a, maximum 4.5a
3)Mpu
Signal: 2 ~ 120v RMS
Note: Above-mentioned parameters are tested with a 3800Hz working frequency.

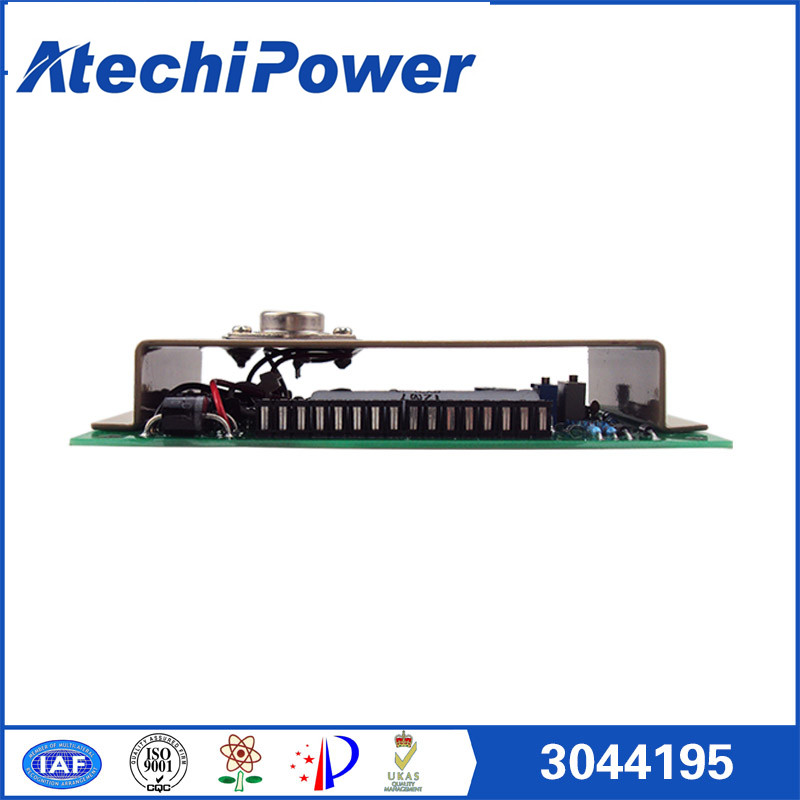

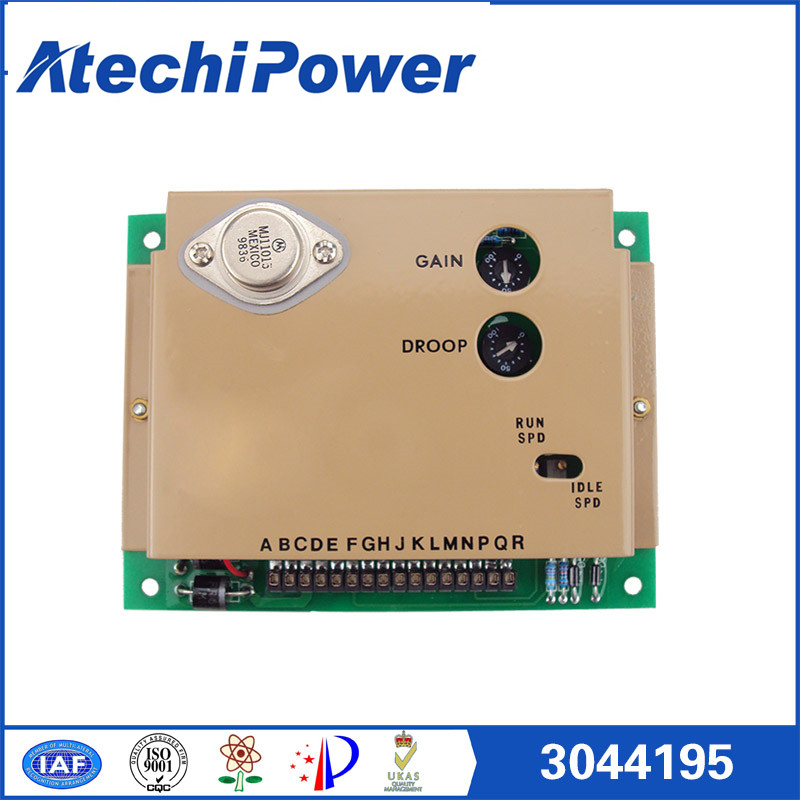

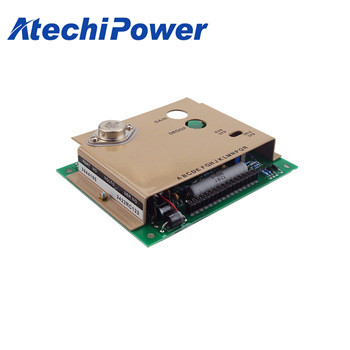

| 3044195 | ||
| Input | Supply | 24 VDC ±20% |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 40 MA | |
| Maximum Actuator Current | 4.5 A continuous | |
| Speed Sensor Signal | 2-120 Volts RMS | |
| Performance | Isochronous Operation/Steady State Stability | ±0.25% or better |
| Speed Range/Governor | 1K to 6.5K Hz continuous | |
| Speed Drift with Temperature | ±1 Max | |
| Idle Regulation | 260±20 Hz | |
| Droop Adj. Max. | 400 Hz., ±75Hz. Per 1.0A change | |
| Speed Trim Range | ±200 Hz with 1 ohm connected | |
| Remote Variable Speed Range | 25 to 100% of rated speed | |
| Impedance | 1m ohms | |
| Environmental | Ambient Operating Temperature Range | -40 to +85 Deg. C |
| Relative Humidity | Up to 95% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | 20 to 100 Hz. 500mm/sec |
