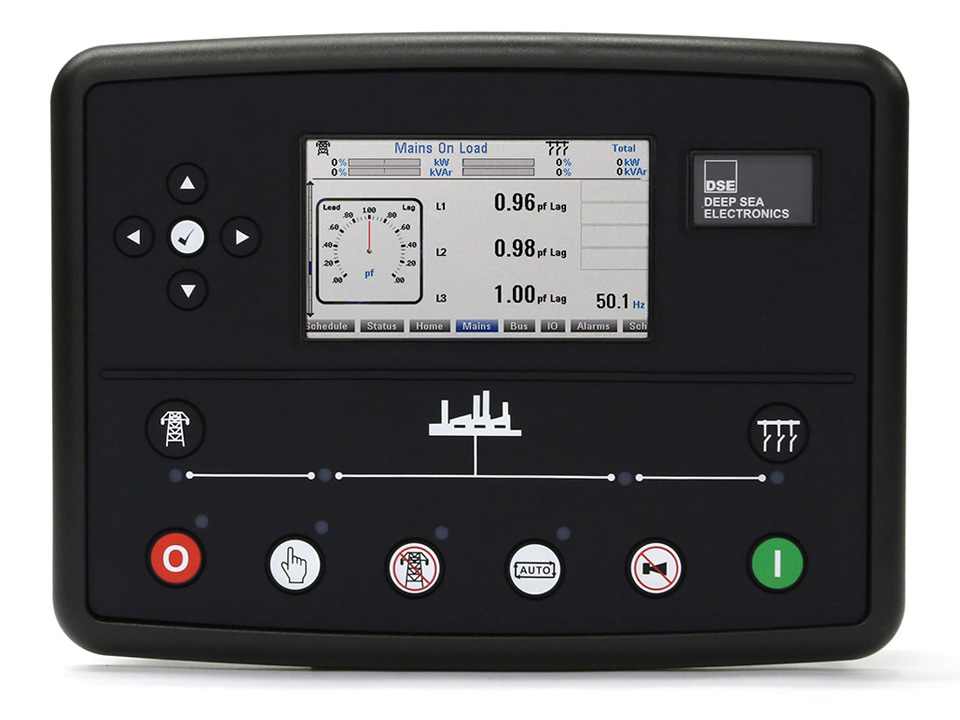

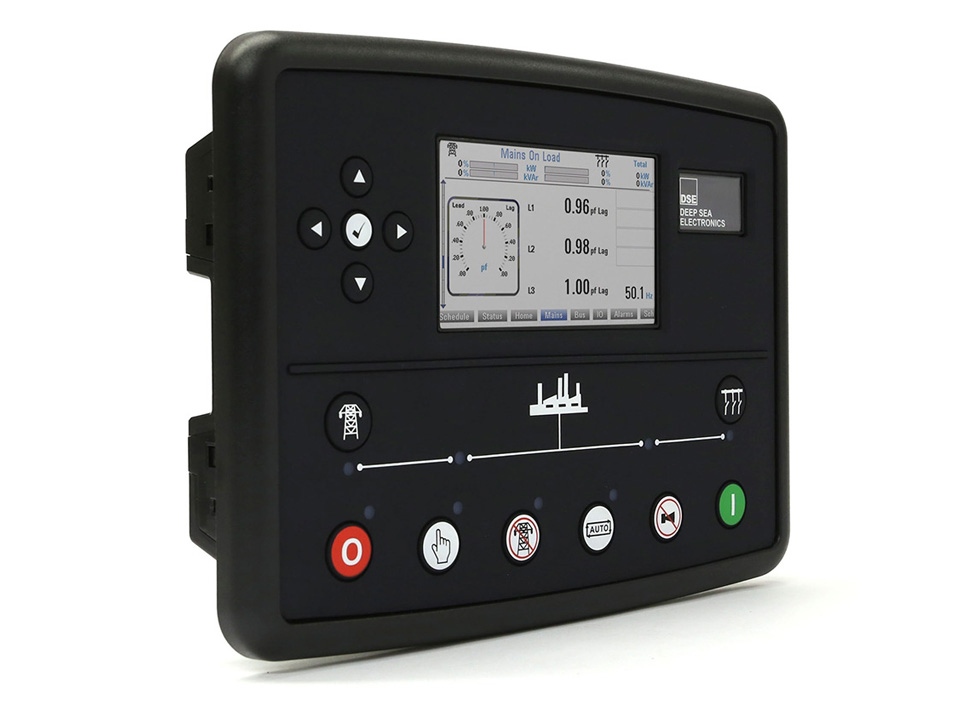

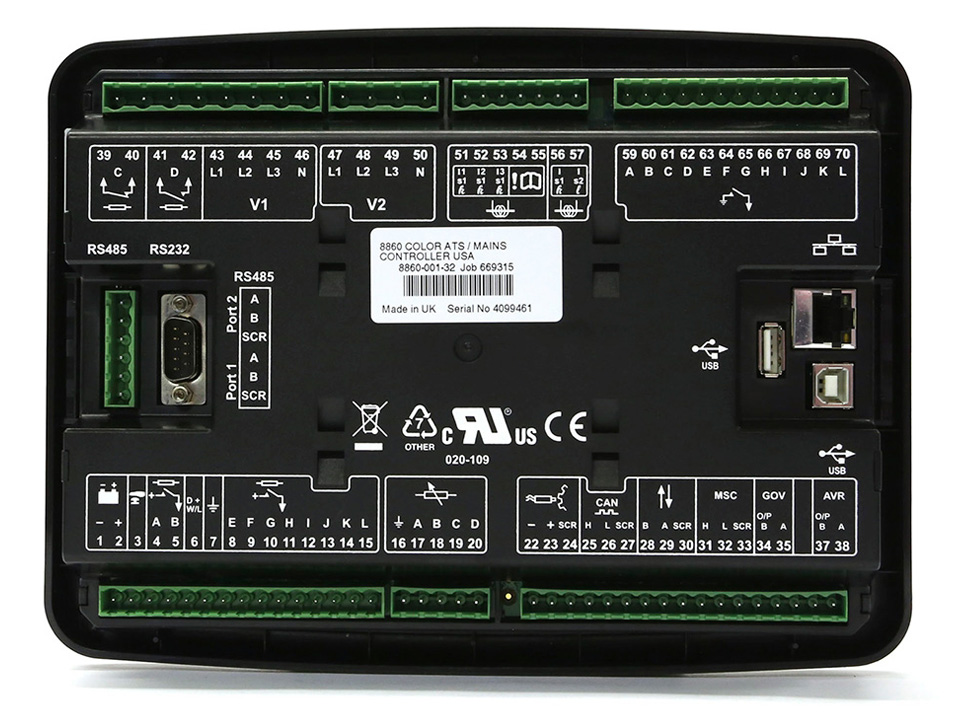

Deep Sea Electronics DSE8860 Auto Transfer Switch & Mains Utility Graphical Color Display Control Module

The DSE8860 is an intelligent graphical colour display single or multi-mains (utility) controller with automatic transfer switch capabilities. The control module synchronises single or multiple set systems in conjunction with DSE synchronising & load share control modules.

OVERALL SIZE
245 mm x 184 mm x 50 mm (9.6” x 7.2” x 2.0”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.88kg

Key Features and Benefits:

• Multiple mains (utility) capability (with additional module).
• To monitor alternative mains supplies to ensure generator power is supplied at the exact time required.
• Mains (Utility) failure detection, mains (utility) power monitoring (kW, kV Ar, kV A & pf) monitoring, mains (utility) decoupling protection, mains (utility) kW export protection.
• Gives full mains (utility) back-up and provides no break synchronisation that includes peak lopping and peak shaving options with mains (utility) power monitoring.
• Sequential set start.
• Allows control over the number of sets starting at any one time. E.g. All start or start on load demand.
• Configurable inputs/outputs (11/8).
• Provides multiple installation options.
• kW & kV Ar load sharing.
• Provides controlled power delivery.
• Remote communications (RS232, RS485, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.
• Provides clear accurate power measurement information.
• Data logging (HDD/USB).
• Provides current and historical status information.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
• Tier 4 CAN engine support.
• Ensures the control module can be used with the latest in modern electronic engine technology.

Deep Sea Electronics DSE8860 Auto Transfer Switch & Mains Utility Graphical Color Display Control Module

The DSE8860 is an intelligent graphical colour display single or multi-mains (utility) controller with automatic transfer switch capabilities. The control module synchronises single or multiple set systems in conjunction with DSE synchronising & load share control modules.

OVERALL SIZE
245 mm x 184 mm x 50 mm (9.6” x 7.2” x 2.0”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.88kg

Key Features and Benefits:

• Multiple mains (utility) capability (with additional module).
• To monitor alternative mains supplies to ensure generator power is supplied at the exact time required.
• Mains (Utility) failure detection, mains (utility) power monitoring (kW, kV Ar, kV A & pf) monitoring, mains (utility) decoupling protection, mains (utility) kW export protection.
• Gives full mains (utility) back-up and provides no break synchronisation that includes peak lopping and peak shaving options with mains (utility) power monitoring.
• Sequential set start.
• Allows control over the number of sets starting at any one time. E.g. All start or start on load demand.
• Configurable inputs/outputs (11/8).
• Provides multiple installation options.
• kW & kV Ar load sharing.
• Provides controlled power delivery.
• Remote communications (RS232, RS485, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.
• Provides clear accurate power measurement information.
• Data logging (HDD/USB).
• Provides current and historical status information.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
• Tier 4 CAN engine support.
• Ensures the control module can be used with the latest in modern electronic engine technology.

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.  LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
600mA at 12V, 300mA at 24V (operating current adjustable with backlight intensity)

MAXIMUM STANDBY CURRENT
330mA at 12V, 160mA at 24V

MAINS (UTILITY) AND BUS

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUTS C & D
8 A at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H, I & J
2 A DC at supply voltage
