Generator Auto Start Load Share Control Module DSE5510

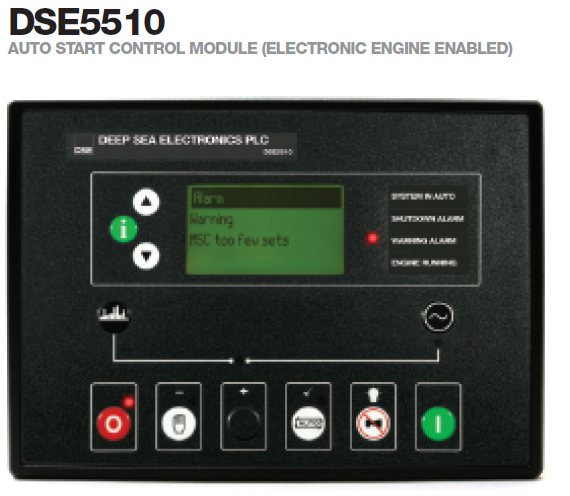

Generator controller DSE5510

The DSE5510 is an automatic engine control modiule, designed to provide advanced load share functionlity for diesel and gas generating sets that include non-electronic and electronic engines. The module aslo provides excellent engine monitoring and protection features. The modules also share functions include, automatic synchronising with built in synchroscope and closing onto dead bus.Direct and flexible outputs from the module are provided to allow connection to the most commonly used speed governors and automatic voltage regulator. The module has been designed to combine a maximum of 16 generators and 16 mains (utility)supplies up to a maximum of 20 in one system,e.g.16 generators and 4 mains(utility)supplies(DSE5560 required to synchronise with the mains). The module has the ability to monitor under/over generator volts, over current, under/over generator freqyency, under speed, over speed, charge fail, emergency stop, low oil pressure, high engine temperature, fail to start, low/high DC battery volts, fail to stop, generator short circuit protection, reverse power, generator phase rotation error, earth fault protection, loss of speed signal, fail to open, fail to close, out of sync and MPU open circuit failure, negative phase sequence and loss of excitation.
