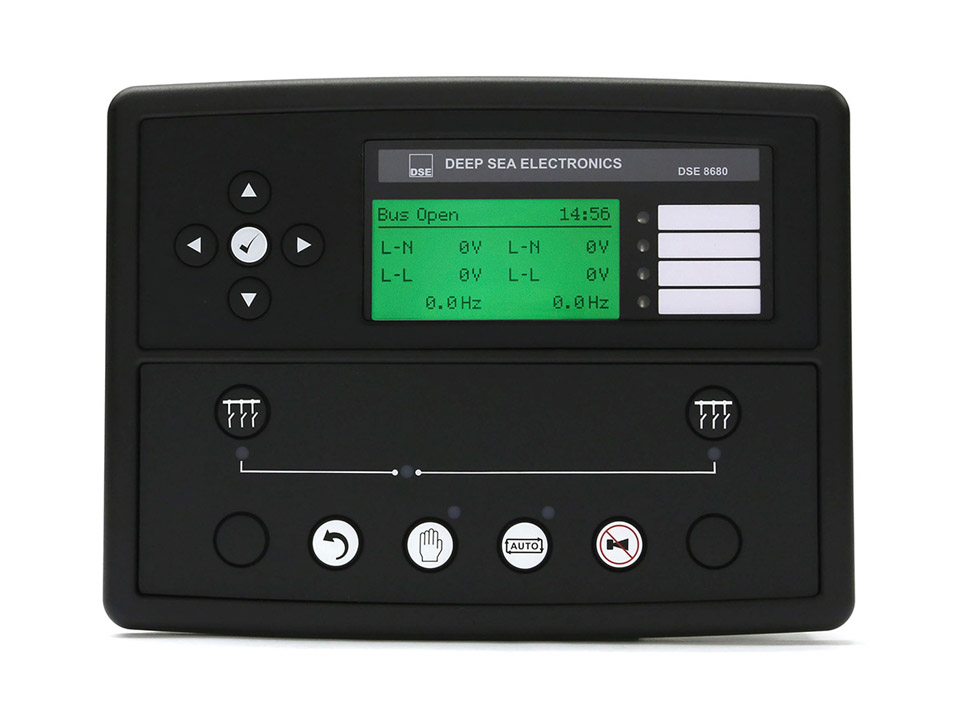

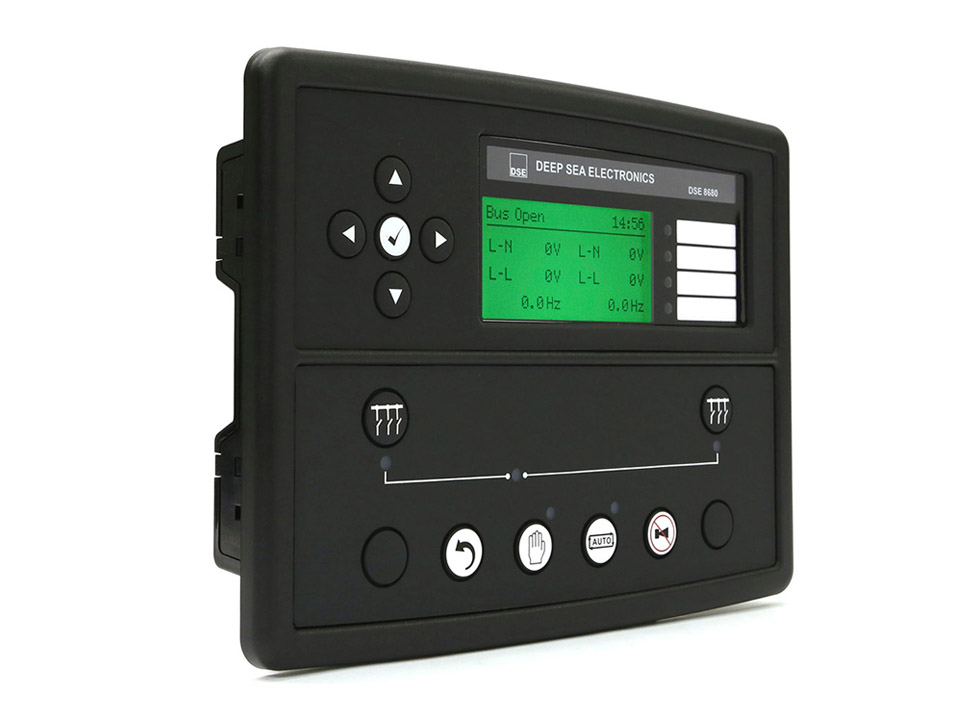

Deep Sea Electronics DSE8680 Synchronising Generator Bus Tie Control Module

The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.86kg

Key Features and Benefits:

• Connects to two DSE MSC links (Bus 1 & Bus 2).
• Provides excellent system flexibility.
• Automatic control of the DSE MSC link.
• Provides control when the breaker is opened or closed for synchronising.
• Up to 2 8680’s are supported when one to fourteen 8×60’s are in the system.
• This provides a fully integrated standalone solution without the need for an external PLC.
• Configurable inputs/outputs (11/8).
• Provides multiple installation options.

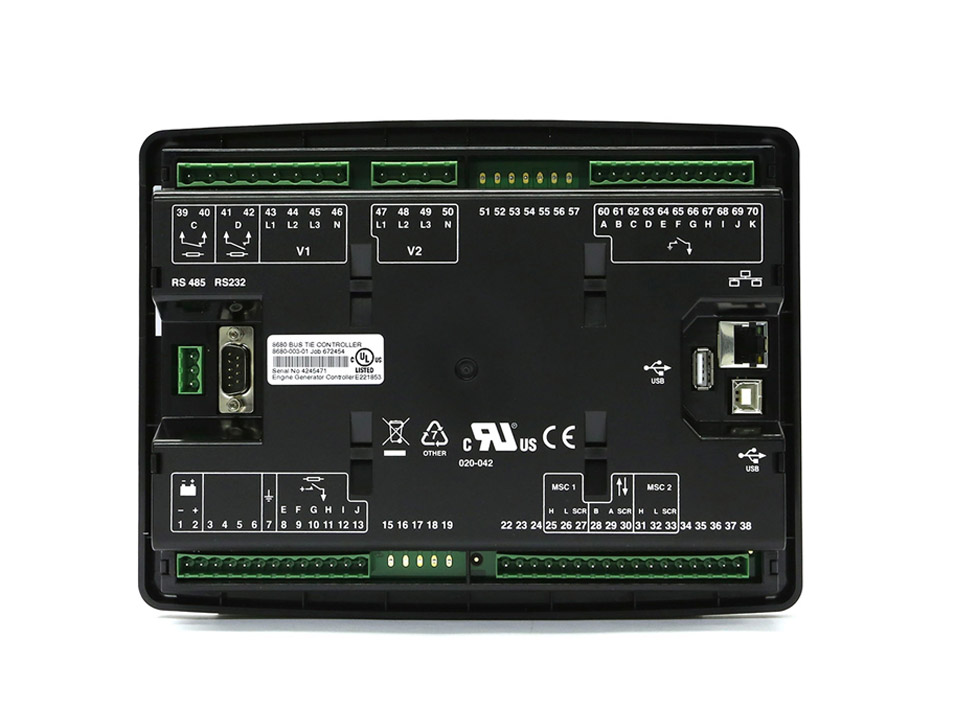

• Remote communications (RS232, RS485 x2, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• Data logging (HDD/USB).
• Provides current and historical status information.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
• Compatible with DSE55xx, 75xx and 86xx control modules.

Deep Sea Electronics DSE8680 Synchronising Generator Bus Tie Control Module

The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.86kg

Key Features and Benefits:

• Connects to two DSE MSC links (Bus 1 & Bus 2).
• Provides excellent system flexibility.
• Automatic control of the DSE MSC link.
• Provides control when the breaker is opened or closed for synchronising.
• Up to 2 8680’s are supported when one to fourteen 8×60’s are in the system.
• This provides a fully integrated standalone solution without the need for an external PLC.
• Configurable inputs/outputs (11/8).
• Provides multiple installation options.
• Remote communications (RS232, RS485 x2, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• Data logging (HDD/USB).
• Provides current and historical status information.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
• Compatible with DSE55xx, 75xx and 86xx control modules.
• Provides flexibility for use within existing and new systems.

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

MAXIMUM OPERATING CURRENT
150 mA at 12 V, 80 mA at 24 V

MAXIMUM STANDBY CURRENT
50 mA at 12 V, 30 mA at 24 V

BUS 1 AND BUS 2

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUTS C & D
8 A at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage
