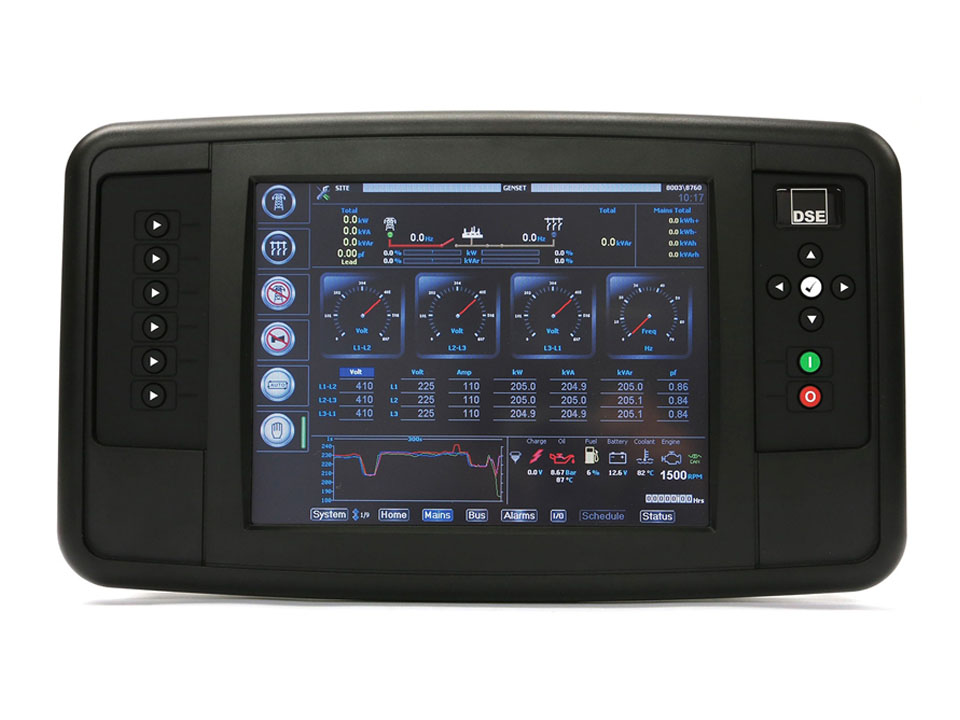

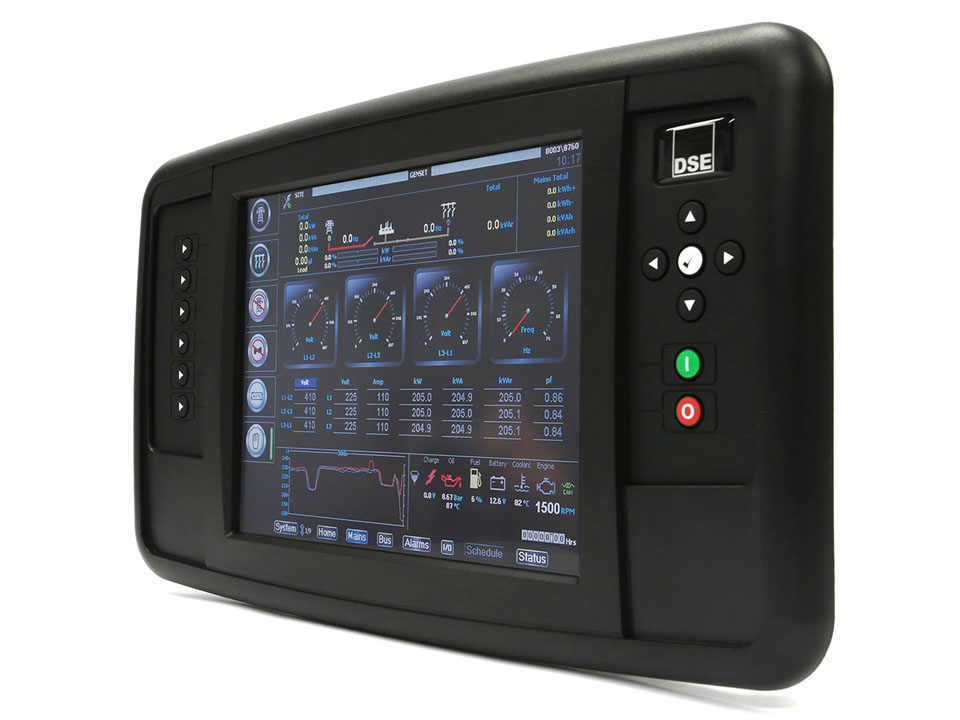

Deep Sea Electronics DSE8004 10 Inch Color Multi Set Remote Overview Display

The DSE8004 is a full colour 10” graphical remote overview display. It has been designed to seamlessly integrate with DSE86xx, 87xx and 88xx load share control modules. Using an RS485 link a single overview display can be connected to multiple control modules over a maximum distance of 1.2km.

OVERALL SIZE
405 mm x 241 mm x 42 mm (15.7” x 9.2” x 1.6”)

PANEL CUTOUT SIZE
359 mm x 204 mm (14.1″ x 8.0″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
1.87kg

Key Features and Benefits:

• Touch screen enabled.
• Simplifies system navigation.
• Front panel mounting.
• Gives options to reduce wiring at the front of a panel when space is limited.
• Remote monitoring.
• Enables fault conditions to be resolved quickly and provides instant system information to aid preventative maintenance.
• Graphical displays showing, charts, meters, power display, graphs and engine status information.
• Information is displayed clearly and in a universal format for all users to quickly understand.
• Up to 20 remote displays can be used within one system.
• This allows systems to be monitored from multiple points within the same site. Protected front panel configuration.

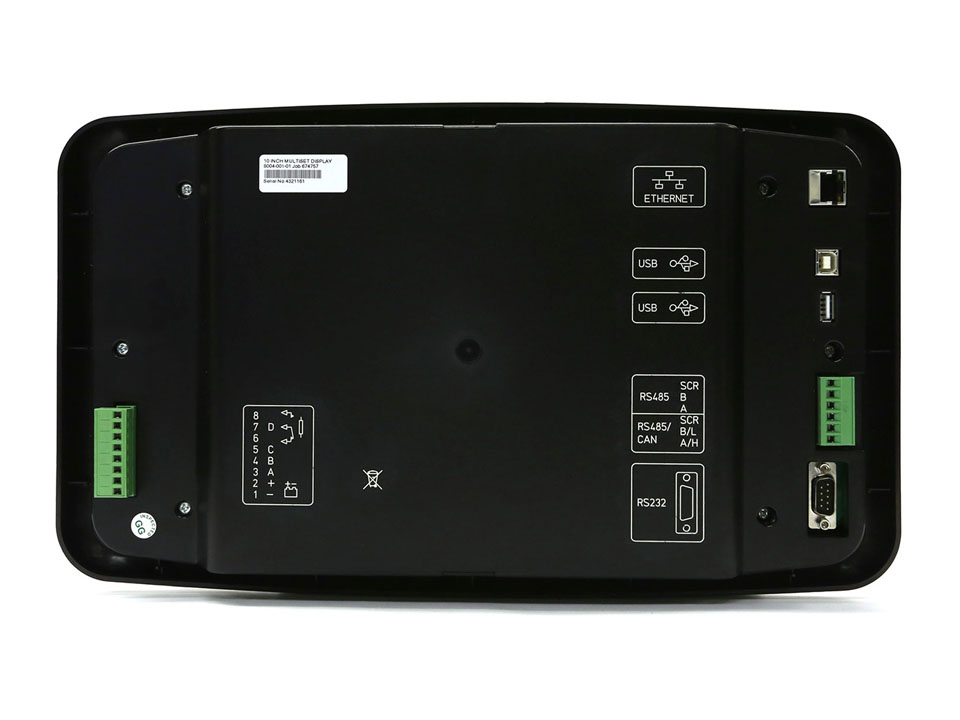

• Remote communications (RS232, RS485, Ethernet)

Deep Sea Electronics DSE8004 10 Inch Color Multi Set Remote Overview Display

The DSE8004 is a full colour 10” graphical remote overview display. It has been designed to seamlessly integrate with DSE86xx, 87xx and 88xx load share control modules. Using an RS485 link a single overview display can be connected to multiple control modules over a maximum distance of 1.2km.

OVERALL SIZE
405 mm x 241 mm x 42 mm (15.7” x 9.2” x 1.6”)

PANEL CUTOUT SIZE
359 mm x 204 mm (14.1″ x 8.0″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
1.87kg

Key Features and Benefits:

• Touch screen enabled.
• Simplifies system navigation.
• Front panel mounting.
• Gives options to reduce wiring at the front of a panel when space is limited.
• Remote monitoring.
• Enables fault conditions to be resolved quickly and provides instant system information to aid preventative maintenance.
• Graphical displays showing, charts, meters, power display, graphs and engine status information.
• Information is displayed clearly and in a universal format for all users to quickly understand.
• Up to 20 remote displays can be used within one system.
• This allows systems to be monitored from multiple points within the same site. Protected front panel configuration.
• Remote communications (RS232, RS485, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout  and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM STANDBY CURRENT
824 mA at 12V, 412 mA at 24V

MAXIMUM OPERATING CURRENT
883 mA at 12V, 436 mA at 24V

INPUTS/OUTPUTS

A to C INPUTS
Negative switching

A to C OUTPUTS
2 A DC at supply voltage

OUTPUT D
Changeover volt-free output
8 A AC at 250 V AC
