Deep Sea Electronics DSE857 USB to RS485 Communications Device

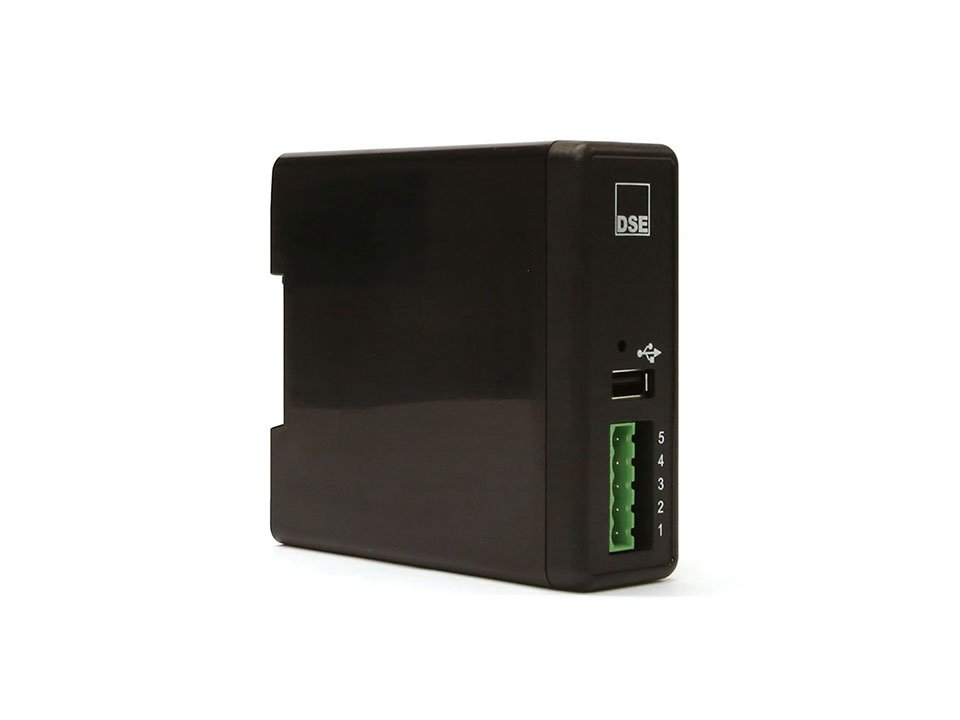

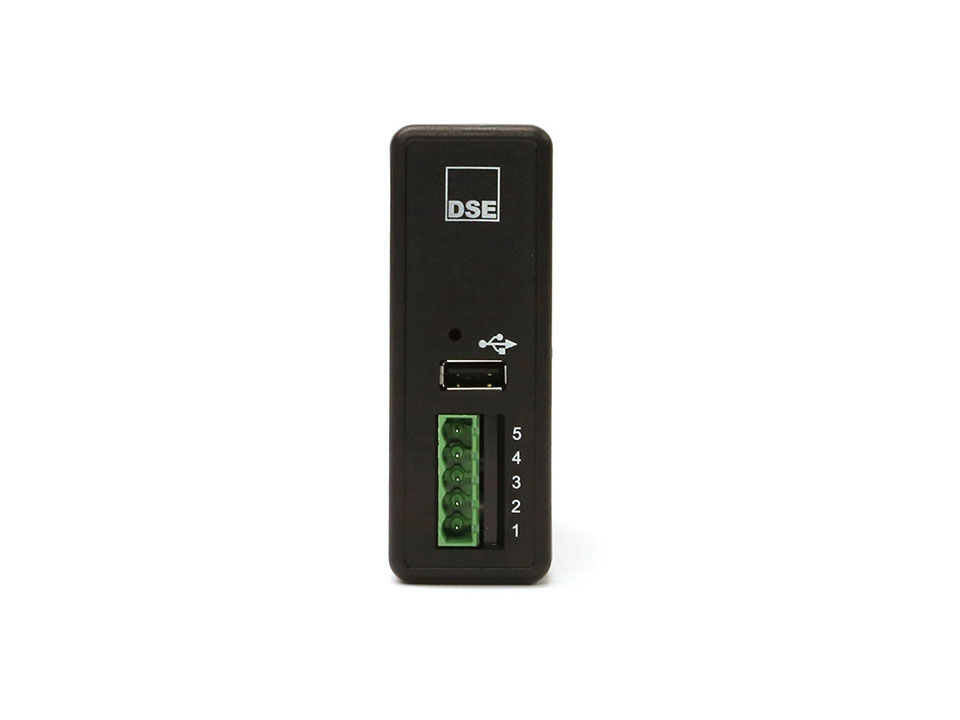

The DSE857 communications device allows monitoring of a single DSE controller with USB connectivity by converting it to an RS485 connection. To achieve this the DSE857 connects to an RS485 MODBUS RTU master over 1.2km away. The MODBUS RTU master can be an external PLC, Building Management System (BMS) or a Windows PC running the DSE Configuration Suite Software.

Works with:

Auto Start:

DSEL401MKII/DSE4310/DSE4410/DSE4510/DSE4610/DSE6010MKII/
DSE6110/DSE6610/DSE7110 MKII/DSE7210/DSE7310

Auto Mains (Utility) Failure:

DSE4320/DSE4420/DSE4520/DSE4620/DSE6020/DSE6120MKII/
DSE6620/DSE7120MKII/DSE7220/DSE7320

OVERALL SIZE
35 mm x 97 mm x 102 mm (1.4” x 3.8” x 4.0”)

WEIGHT
0.16kg

Key Features and Benefits:

• Converts a USB port to an RS485 port.
• Remote control & monitoring for all connected modules.
• Access permission settings.
• Supports MODBUS RTU using the RS485 port.
• Full building management system integration.
• Firmware upgradeable.

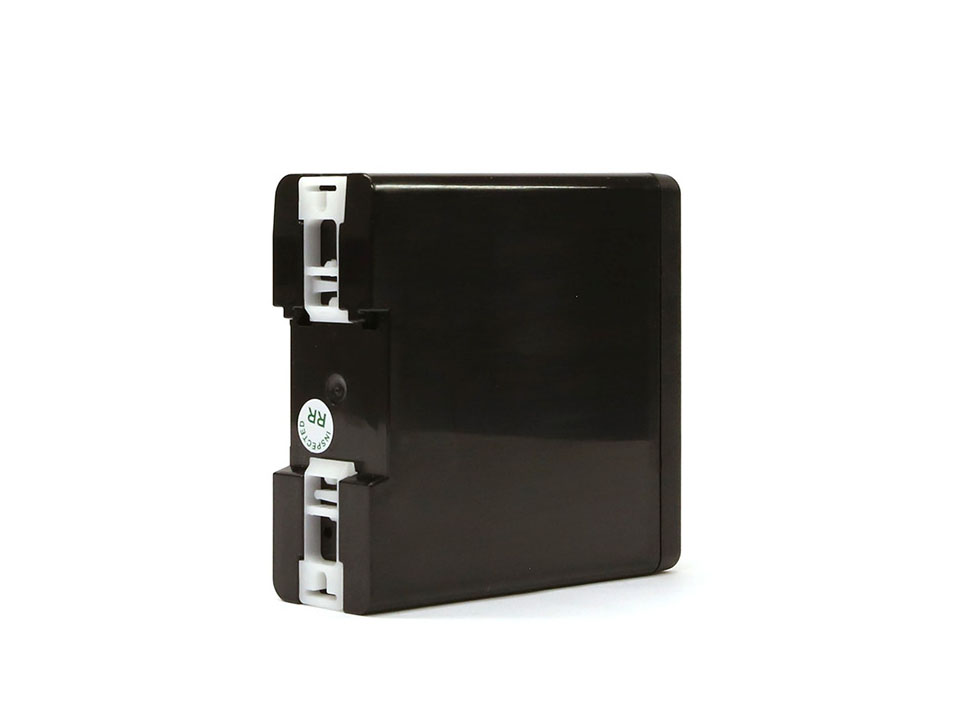

• DIN rail mount.

• Deep Sea Electronics DSE857 USB to RS485 Communications Device

  The DSE857 communications device allows monitoring of a single DSE controller with USB connectivity by converting it to an RS485 connection. To achieve this the DSE857 connects to an RS485 MODBUS RTU master over 1.2km away. The MODBUS RTU master can be an external PLC, Building Management System (BMS) or a Windows PC running the DSE Configuration Suite Software.

  Works with:

  Auto Start:

  DSEL401MKII/DSE4310/DSE4410/DSE4510/DSE4610/DSE6010MKII/
  DSE6110/DSE6610/DSE7110 MKII/DSE7210/DSE7310

  Auto Mains (Utility) Failure:

  DSE4320/DSE4420/DSE4520/DSE4620/DSE6020/DSE6120MKII/
  DSE6620/DSE7120MKII/DSE7220/DSE7320

  OVERALL SIZE
  35 mm x 97 mm x 102 mm (1.4” x 3.8” x 4.0”)

  WEIGHT
  0.16kg

  Key Features and Benefits:

• Converts a USB port to an RS485 port.
• Remote control & monitoring for all connected modules.
• Access permission settings.
• Supports MODBUS RTU using the RS485 port.
• Full building management system integration.
• Firmware upgradeable.
• DIN rail mount.

• DC SUPPLY

  CONTINUOUS VOLTAGE RATING
  8 V to 35 V Continuous

  CRANKING DROPOUTS
  Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

  MAXIMUM OPERATING CURRENT
  123 mA at 12 V
  71 mA at 24 V

  MAXIMUM STANDBY CURRENT
  104 mA at 12 V
  63 mA at 24 V

  COMMUNICATIONS

  USB (Single DSE Controller)
  RS485
