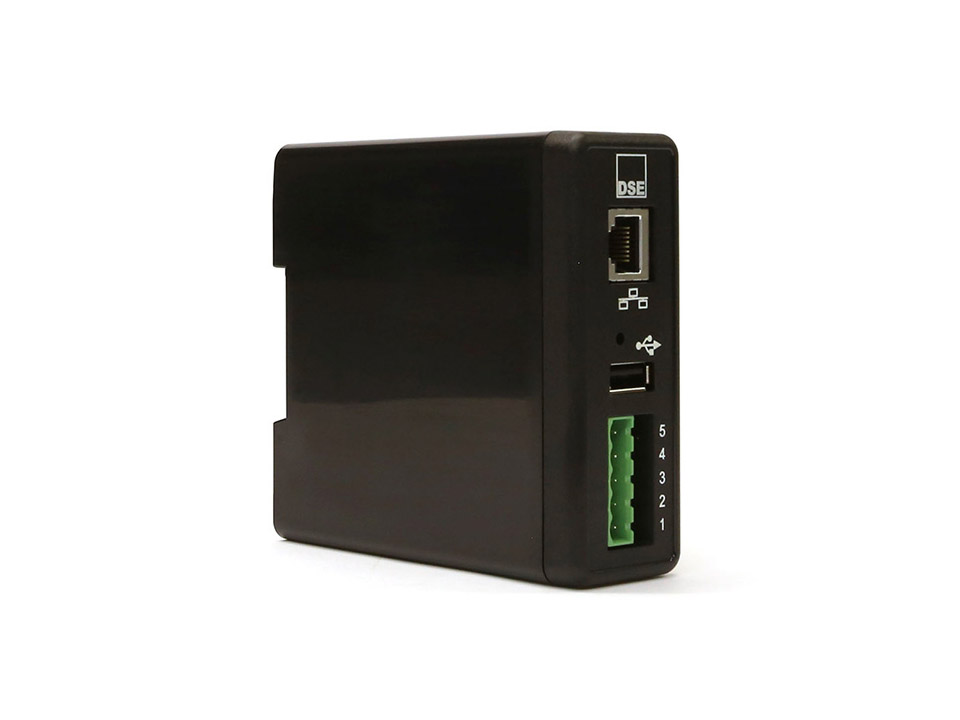

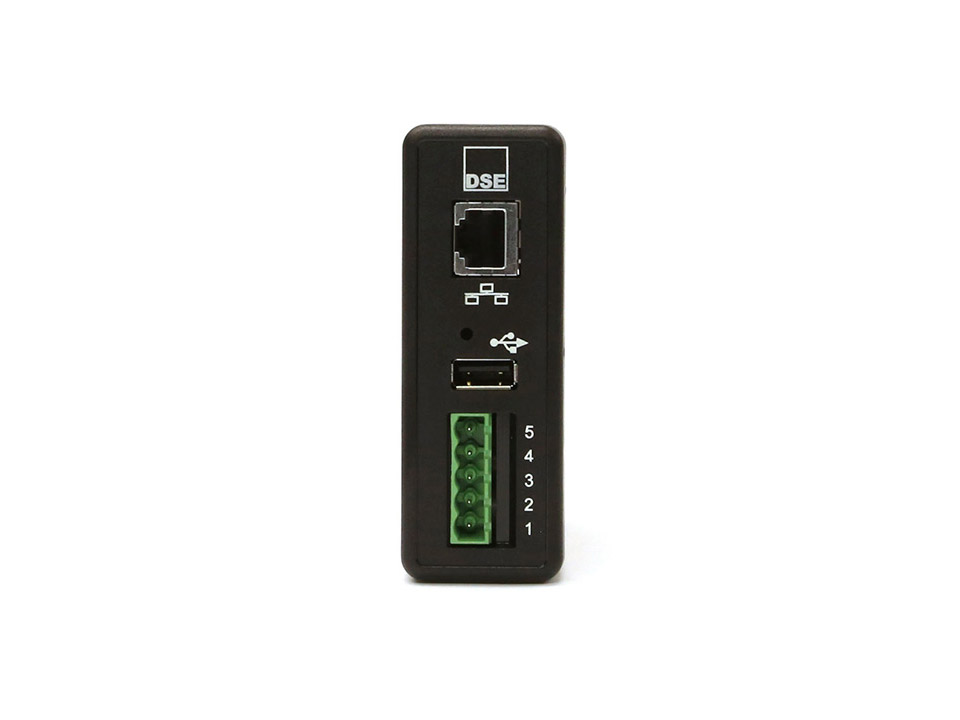

Deep Sea Electronics DSE855 USB to Ethernet Communications Device

The DSE855 communications device allows monitoring of a single DSE controller with USB connectivity over a LAN or WAN connection. To achieve this the DSE855 utilises its in-built web server or MODBUS TCP. In order to use over a LAN connection the on-site router must be configured to be accessible from any global location.

Works with:

Auto Start:

DSEL401MKII/DSE4310/DSE4410/DSE4510/DSE4610/DSE6010MKII
DSE6110/DSE6610/DSE7110 MKII/DSE7210/DSE7310

Auto Mains (Utility) Failure:

DSE4320/DSE4420/DSE4520/DSE4620/DSE6020/DSE6120MKII
DSE6620/DSE7120MKII/DSE7220/DSE7320

Deep Sea Electronics DSE855 USB to Ethernet Communications Device

The DSE855 communications device allows monitoring of a single DSE controller with USB connectivity over a LAN or WAN connection. To achieve this the DSE855 utilises its in-built web server or MODBUS TCP. In order to use over a LAN connection the on-site router must be configured to be accessible from any global location.

Works with:

Auto Start:

DSEL401MKII/DSE4310/DSE4410/DSE4510/DSE4610/DSE6010MKII/DSE6110/DSE6610/DSE7110 MKII/DSE7210/DSE7310

Auto Mains (Utility) Failure:

DSE4320/DSE4420/DSE4520/DSE4620/DSE6020/DSE6120MKII/DSE6620/DSE7120MKII/DSE7220/DSE7320

OVERALL SIZE
35 mm x 97 mm x 102 mm (1.4” x 3.8” x 4.0”)
WEIGHT
0.16kg

KEY Features and Benefits

• Converts a USB port to an Ethernet port.
• In-built web server.
• Simple Internet browser configuration.
• Remote control & monitoring for all connected modules.
• MODBUS TCP support via Ethernet.
• Can be viewed from four separate locations simultaneously.
• Full building management system integration.
• Firmware upgradeable.
• DIN rail mount

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
123 mA at 12 V
71 mA at 24 V

MAXIMUM STANDBY CURRENT
104 mA at 12 V
63 mA at 24 V

COMMUNICATIONS

USB (Single DSE Controller)
Ethernet

OVERALL SIZE
35 mm x 97 mm x 102 mm (1.4” x 3.8” x 4.0”)
WEIGHT
0.16kg
