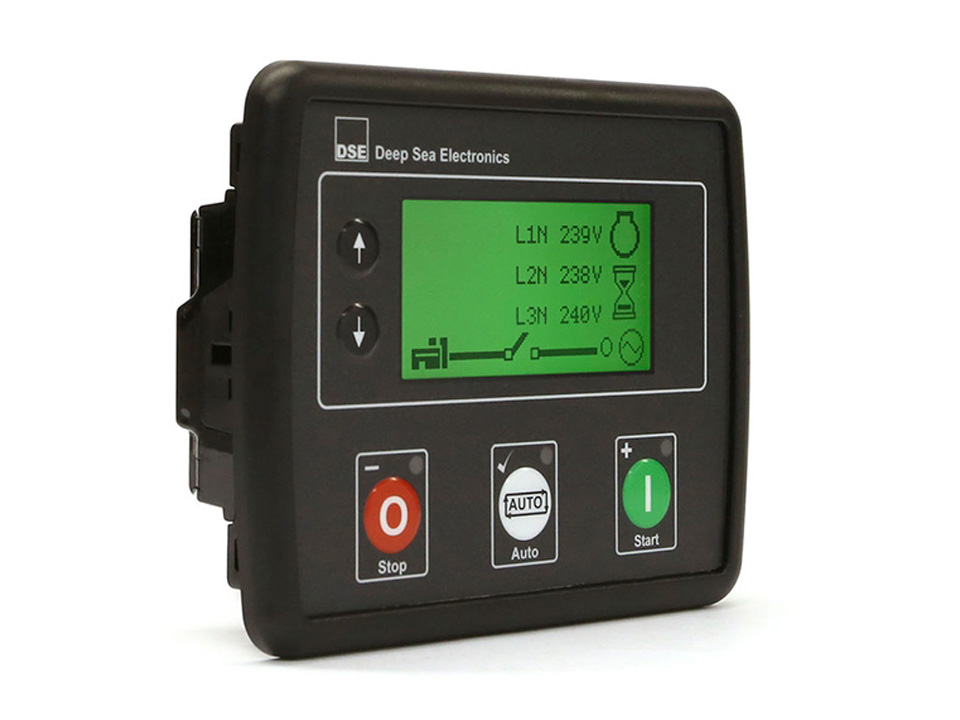

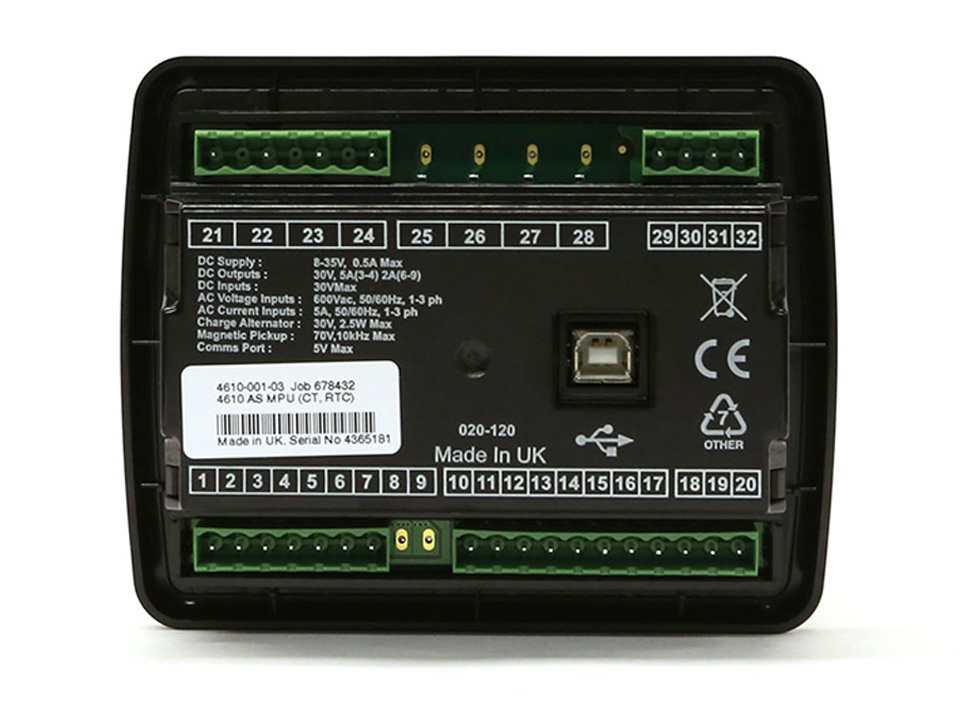

Deep Sea Electronics DSE4610 Auto Start Control Module

The DSE4610 is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

OVERALL SIZE
140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)

PANEL CUTOUT SIZE
118 mm x 92 mm (4.6″ x 3.6″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.28kg

KEY Features and Benefits

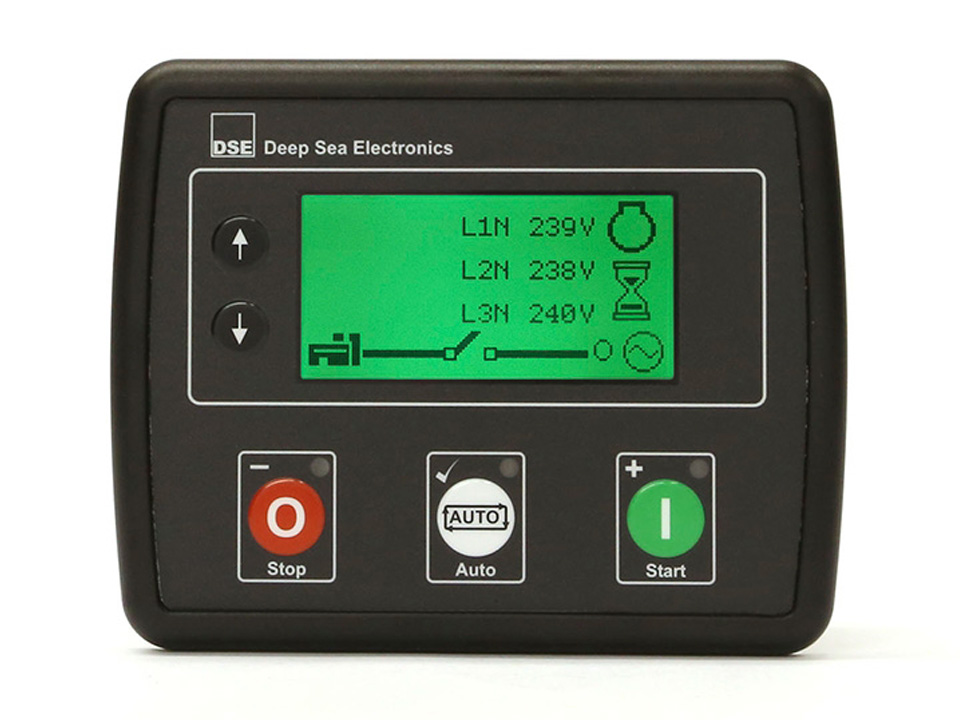

• Large back-lit icon LCD display.
• Displays information to the operator in a clear and concise format.
• 3-phase generator sensing.
• Provides true generator sensing.
• 600 V ph-ph nominal system compatibility.
• Provides global flexibility.
• Generator & load power monitoring (kW, kV A, kV Ar, pf).
• Provides clear accurate power measurement information.
• Generator overload protection (kW).
• Provides engine overload protection.
• Configurable inputs & outputs.
• Provides multiple installation options.
• Configurable DC, volt-free and staged loading outputs.
• Provides multiple installation options.
• Fuel & crank outputs.
• Provides controlled engine starting and stopping.
• Magnetic pick-up speed sensing.
• Provides full monitoring flexibility.
• Engine speed protection, engine hours counter, engine pre-heat, engine run-time scheduler, engine idle control for start/stop.
• Ensures the engine is fully monitored for improved operating performance.
• Battery voltage monitoring.
• Ensures the battery maintains enough power at all times.
• Configurable event log (50).
• Provides access to historical alarms and operational status.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

• Deep Sea Electronics DSE4610 Auto Start Control Module

  The DSE4610 is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

  OVERALL SIZE
  140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)

  PANEL CUTOUT SIZE
  118 mm x 92 mm (4.6″ x 3.6″)

  MAXIMUM PANEL THICKNESS
  8.0 mm (0.3”)

  WEIGHT
  0.28kg

  KEY Features and Benefits

• Large back-lit icon LCD display.
• Displays information to the operator in a clear and concise format.
• 3-phase generator sensing.
• Provides true generator sensing.
• 600 V ph-ph nominal system compatibility.
• Provides global flexibility.
• Generator & load power monitoring (kW, kV A, kV Ar, pf).
• Provides clear accurate power measurement information.
• Generator overload protection (kW).
• Provides engine overload protection.
• Configurable inputs & outputs.
• Provides multiple installation options.
• Configurable DC, volt-free and staged loading outputs.
• Provides multiple installation options.
• Fuel & crank outputs.
• Provides controlled engine starting and stopping.
• Magnetic pick-up speed sensing.
• Provides full monitoring flexibility.
• Engine speed protection, engine hours counter, engine pre-heat, engine run-time scheduler, engine idle control for start/stop.
• Ensures the engine is fully monitored for improved operating performance.
• Battery voltage monitoring.
• Ensures the battery maintains enough power at all times.
• Configurable event log (50).
• Provides access to historical alarms and operational status.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

•

  SPECIFICATION

  DC SUPPLY

  CONTINUOUS VOLTAGE RATING
  8 V to 35 V Continuous

  CRANKING DROPOUTS
  Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

  MAXIMUM OPERATING CURRENT
  85 mA at 12 V, 96 mA at 24 V

  MAXIMUM STANDBY CURRENT
  51 mA at 12 V, 47 mA at 24 V

  MAXIMUM SLEEP CURRENT
  35 mA at 12 V, 32 mA at 24 V

  MAXIMUM DEEP SLEEP CURRENT
  <10 uA at 12 V, <10 uA at 24 V

  OUTPUTS

  OUTPUT A (FUEL)
  10 A short term, 5 A continuous,
  at supply voltage

  OUTPUT B (START)
  10 A short term, 5 A continuous,
  at supply voltage

  AUXILIARY OUTPUTs C & D
  2 A DC at supply voltage ­

  GENERATOR

  VOLTAGE RANGE
  15 V to 415 V AC (Ph-N)
  26  to 719 V AC (Ph – Ph)

  FREQUENCY RANGE
  3.5 Hz to 75 Hz

  MAGNETIC PICK-UP

  VOLTAGE RANGE
  +/- 0.5 V to 70 V

  FREQUENCY RANGE
  10,000 Hz (max)
