Brief introduction:
The DSE7570 Sync Lock Controller has been designed to integrate with generators being controlled by a DSE7510, DSE8610 or DSE8610 MKII and provides a user-frien...MORE >>
Classification:deepsea controller
Size:20X15X10 cm
Weight:1KG
Price:
Introduction

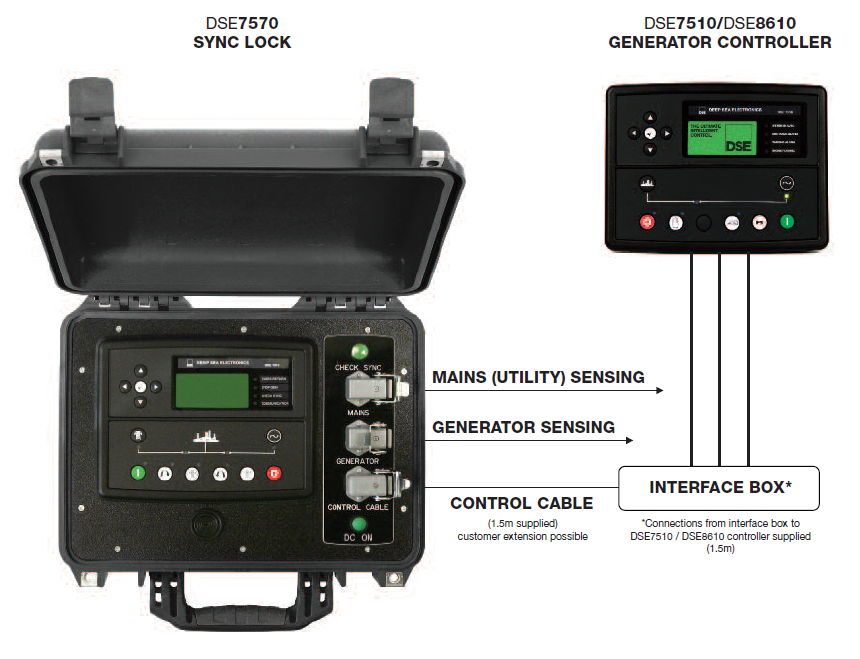

The DSE7570 Sync Lock Controller has been designed to integrate with generators being controlled by a DSE7510, DSE8610 or DSE8610 MKII and provides a user-friendly zero synchronising/phase locking solution.
The controller provides forward & backward synchronising with a mains (utility) supply and is connected and disconnected manually from the mains (utility). The DSE7570 is ideally suited to temporary generator installations.
For installations where access is restricted the DSE Sync Lock Interface Box can be used to increase the working distance between the controller and DSE7510 to a maximum of 200 meters.
SYNC LOCK CASE
122 mm x 120 mm x 55 mm (4.8” x 4.7” x 2.2”)
WEIGHT
4.68kg
INTERFACE BOX
406 mm x 330 mm x 174 mm (16.0" x 13.0" x 6.9")
WEIGHT
0.86kg
PRODUCT VARIANTS
7570-02 - Remote Sync Lock Controller Suitcase
7570-03 - Remote Sync Lock Controller Interface Module
