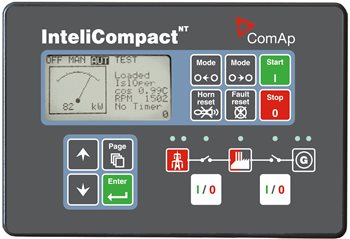

InteliCompact NT SPtM

Gen-set Controller for Gensets in Parallel to Mains Applications

Order code: IC-NT SPTM

• Compact genset controller for single genset operating in Parallel to Mains mode or Auto Mains Failure (AMF) mode with no-break transfers
• Meets all requirements for AMF applications
• Forward and reverse synchronizing
• Peak shaving, Peak lopping
• Load, speed, voltage and power factor control
• High tariff avoidance
• Mains import/export
• Full gen-set monitoring and protection
• Possibility to connect up to 8 gauges to display engine values
• True voltage and current RMS measurement
• Outstanding EFI engine support (CAN/J1939, RS232/Modbus) with diagnostic messages in plain text
• 3 phase generator voltage and current measurement
• 3 phase mains voltage measurement
• 3 phase power measurement
• 1 phase mains current measurement
• Additional 7 binary inputs/outputs via IC-NT CT-BIO7 (in total up to 16 inputs/15 outputs)
• 3 analog inputs
• RS232, RS485, USB, Modbus, GSM/Analog Modem, Internet communication*
• GPRS communication and IC-NT RD (remote display) software
• AirGate and WebSupervisor support
• Support of active SMS Events or Commands
• Event and performance log
• 2 languages (user changeable)
• IC-NT CT-BIO7 extension plug-in module included

* relevant plug-in module is required
