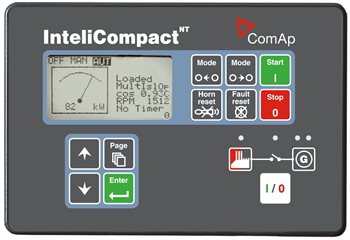

InteliCompact NT MINT

Genset Controller for Gensets in Multiple Parallel Applications

Order code: IC-NT MINT

• Compact genset controller for gensets operating in multiple island and/or parallel to mains mode (together with MainsCompact NT)
• Advanced Power Management for up to 32 gensets allowing
  • Load demand Start/Stop function
  • Load demand Swapping of different size gensets
  • Running Hours equalization
• Active Load and VAr sharing
• Full gen-set monitoring and protection
• Possibility to connect up to 8 gauges to display engine values
• True voltage and current RMS measurement
• Outstanding EFI engine support (CAN/J1939, RS232/Modbus) with diagnostic messages in plain text
• 3 phase generator voltage and current measurement
• 3 phase busbar voltage measurement
• 3 phase power measurement
• 3 analog inputs
• RS232, RS485, USB, Modbus, GSM/Analog Modem, Internet communication*
• GPRS communication and IC-NT RD (remote display) software
• AirGate and WebSupervisor support
• Support of active SMS Events or Commands
• Event and performance log
• 2 languages (user changeable)

* Relevant plug-in module is required

* FW version IC-NT 2.5.0 or newer is needed for the compatibility of Load Sharing and Power Management with InteliGen 200
