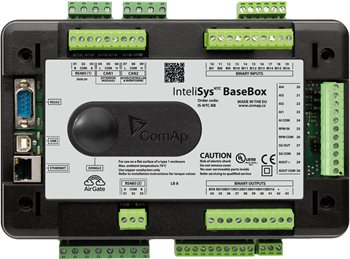

InteliSys NTC BaseBox GeCon Marine

Marine Premium Generator Controller

Order code: IS-NTC-BB

Marine certified controller. Overview of ComAp marine approved products available here.

• Premium generator controller for both single and multiple gensets operating in standby or parallel modes
• Support of complex applications
• To be used in conjunction with detachable / external colour displays InteliVision 8 or InteliVision 5
• Complete integrated generator solution and signal sharing via CAN bus – minimum external components needed
• Many communication options – easy remote supervising and servicing
• Plug&Play Local and Remote monitoring from a range of ComAp HMI display units and dedicated PC tools or Web based services offers you an easy and constant monitoring of the controlled fleet, site or technology.
• Generator performance log for easy problem tracing
• Automatic synchronizing and control breaker
• Baseload, Import / Export, TempByPower, Peak shaving, Voltage and PF control (AVR)
• Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
• Mains measurement: U, I, Hz, kW, kVAr, PF
• Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
• True RMS (TRMS) is used with Voltage, Current and Power measurement
• Inputs and outputs configurable for various customer needs
• Bipolar binary output – possibility to use BO as High or Low side switch
• 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages;  secondary RS485 converter is isolated
• AirGate support
• Ethernet connection (RJ45)
• USB 2.0 slave interface
• Configurable event-based history (up to 4000 records) with extra Pre-mortem part is a valuable tool for troubleshooting and performance analysis.
• Internal built-in PLC interpreter allows you to configure customised logic to meet demanding customer requirements on your own without extra programming knowledge and in a fast way.
• Integrated fixed and configurable protections
• Customized firmware solution

------------------------------------------------------------
Order instruction: To run the GeCon software you need to order InteliSys NTC BaseBox, and then install the correct GeCon software:

• GeCon LandBased (included in standard firmware since version 3.7)
• GeCon Marine (special dedicated firmware) is located in Download Center for IGS-NT-GeCon-MARINE area

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.
