Brief introduction:

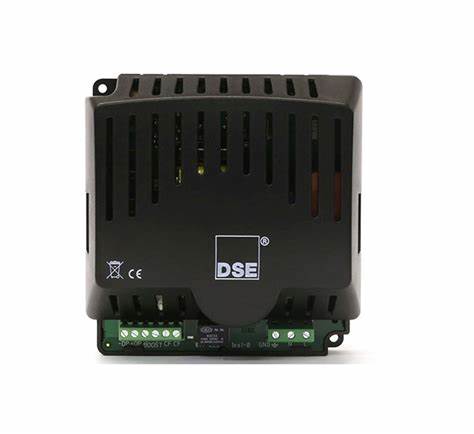

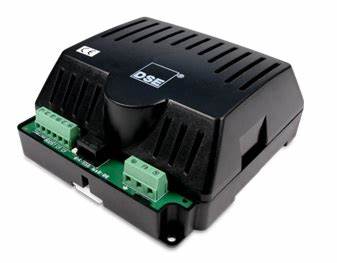

MAIN FEATURESDSE9155 30volt 2amp DC Battery ChargerADVANCED FEATURESMulti-Stage Intelligent Charging
• Constant current- Maximum
current available during c...MORE >>
Classification:deepsea controller
Size:20X15X10 cm
Weight:1KG
Price:
Introduction
ADVANCED FEATURES
Multi-Stage Intelligent Charging
• Constant current- Maximum
current available during charge
recovery phase
• Constant voltage
• Chargers automatically return to float mode when charging is complete
Low Output Ripple
• Makes the chargers ideal for all
battery types
Full Protection
• Reverse polarity protection, short circuit protection and current limiting
• Automatic recovery after the removal of fault conditions
Boost Mode
• Boosts and equalises cell charge improving battery performance and life
• Simple boost connection using on-board terminals
Power Save Mode
• Once the battery is fully charged the chargers switch to Eco-Power to save energy
KEY BENEFITS
• Suitable for a wide range of battery types
• No moving parts for longer battery charger life
• Switched mode design
• Charge fail output
• Minimum 80% efficiency throughout full operating range
Paralleling Feature
• Multiple modules can be linked together to provide larger current output
AC SUPPLY
VOLTAGE RANGE
85 V to 265 V (L-N)
DC OUTPUT
2 A DC 30 V DC at 34.3 V DC
RIPPLE AND NOISE
<1%
EFFICIENCY
>80%
REGULATION
LINE
<0.001% Vo
LOAD
1% Vo
PROTECTIONS
Short Circuit
Over Voltage
Over Current
Reverse Polarity
DIMENSIONS
OVERALL
136 mm x 140 mm x 63 mm
5.4” x 5.5” x 2.5”
WEIGHT
0.5 kg
