Brief introduction:

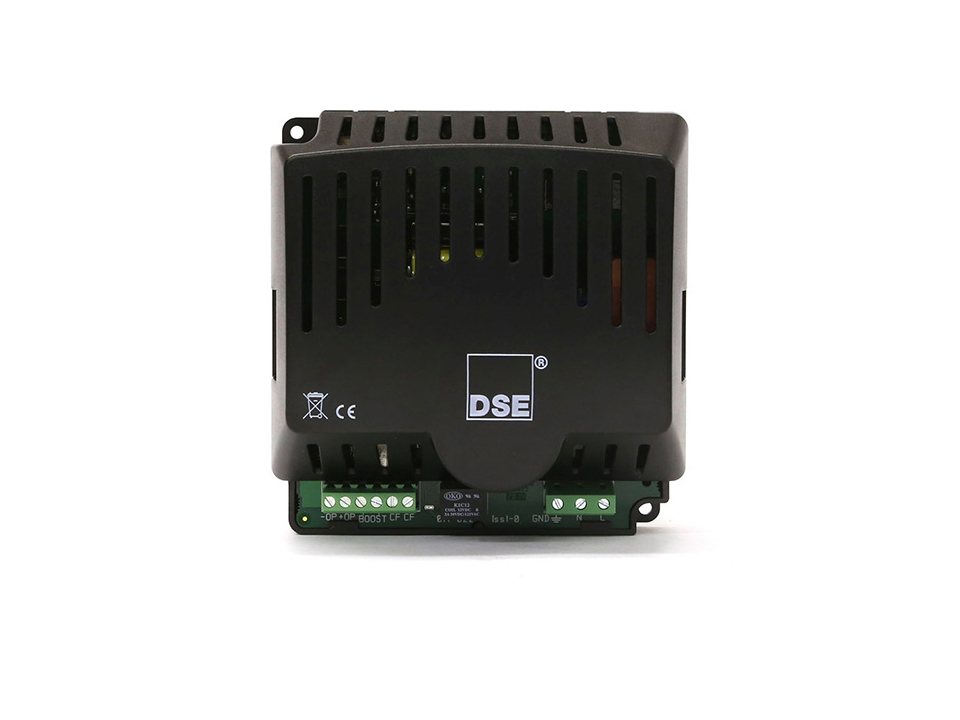

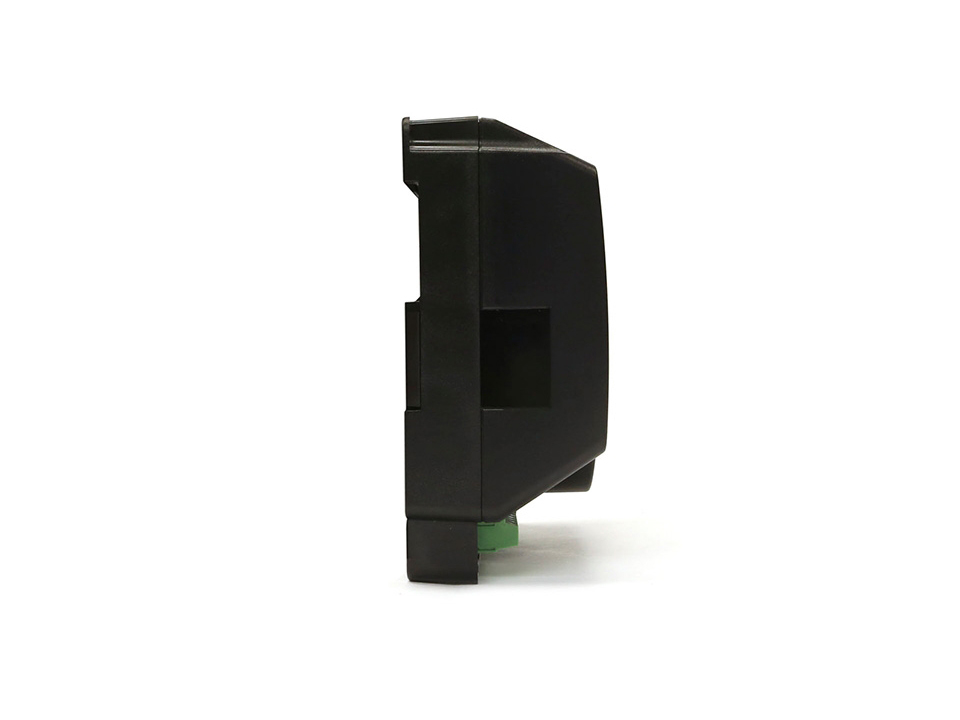

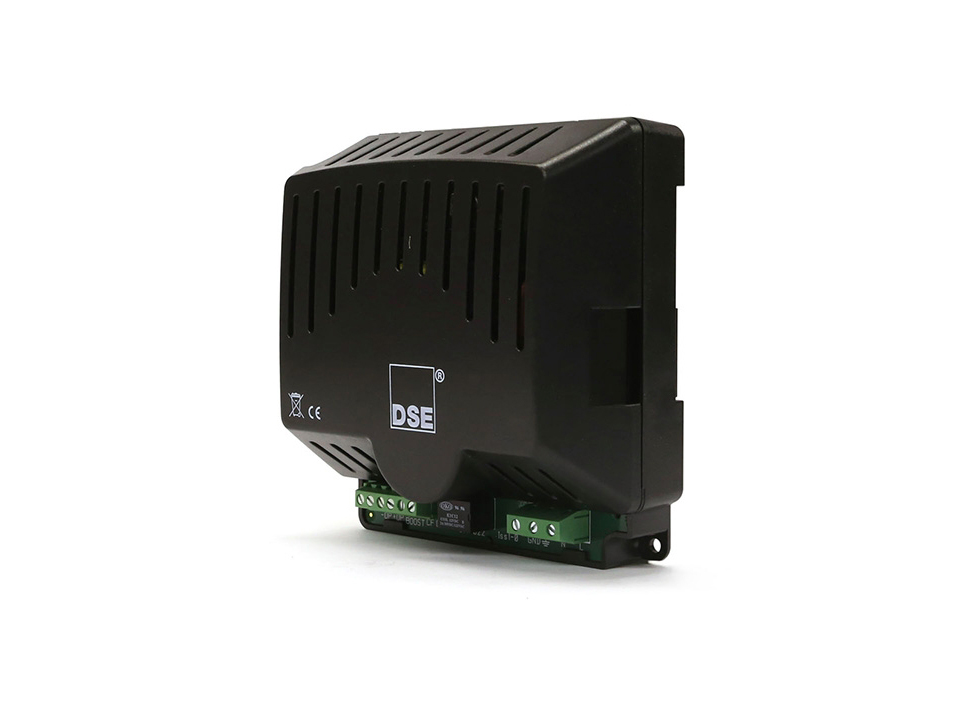

DSE9255 5 Amp 24 Volt Battery Charger
5 Amp Battery Charger has been designed to be permanently connected to a battery, keeping it charged to maximum capacity....MORE >>
Classification:Battery Charger
Size:20X15X10 cm
Weight:1KG
Price:
Introduction
DSE9255 5 Amp 24 Volt Battery Charger
5 Amp Battery Charger has been designed to be permanently connected to a battery, keeping it charged to maximum capacity.
The chargers can be either mounted via DIN rail or to the chassis, using the fixing holes that are built into the case. The chargers stylish design includes an LED indicator onthe front that shows when the charger is in a normal or overload condition.
Advanced features
Multi-Stage Intelligent Charging
• Constant current- Maximum current available during charge recovery phase
• Constant voltage
• Chargers automatically return to float mode when charging is complete
Low Output Ripple
• Makes the chargers ideal for all battery types
Full Protection
• Reverse polarity protection,short circuit protection and current limiting
• Automatic recovery after the removal of fault conditions
Boost Mode
• Boosts and equalises cell charge improving battery performance and life
• Simple boost connection using on-board terminals
Power Save Mode
• Once the battery is fully charged the chargers switch to Eco-Power to save energy
Key benefits
• Suitable for a wide range of battery types
• No moving parts for longer battery charger life
• Switched mode design
• Charge fail output
• Minimum 80% efficiency throughout full operating range
Paralleling Feature
• Multiple modules can be linked together to provide larger current output
