DSE9461 Genset battery charger

Brief introduction：

10 AMP Enclosed Intelligent Battery Charger DSE9461 Description 10 AMP Battery Charger Place of origin U.K AC SUPPLY VOL...MORE >>

Classification：deepsea controller

Size：20X15X10 cm

Weight：2.3KG

Price：

Introduction

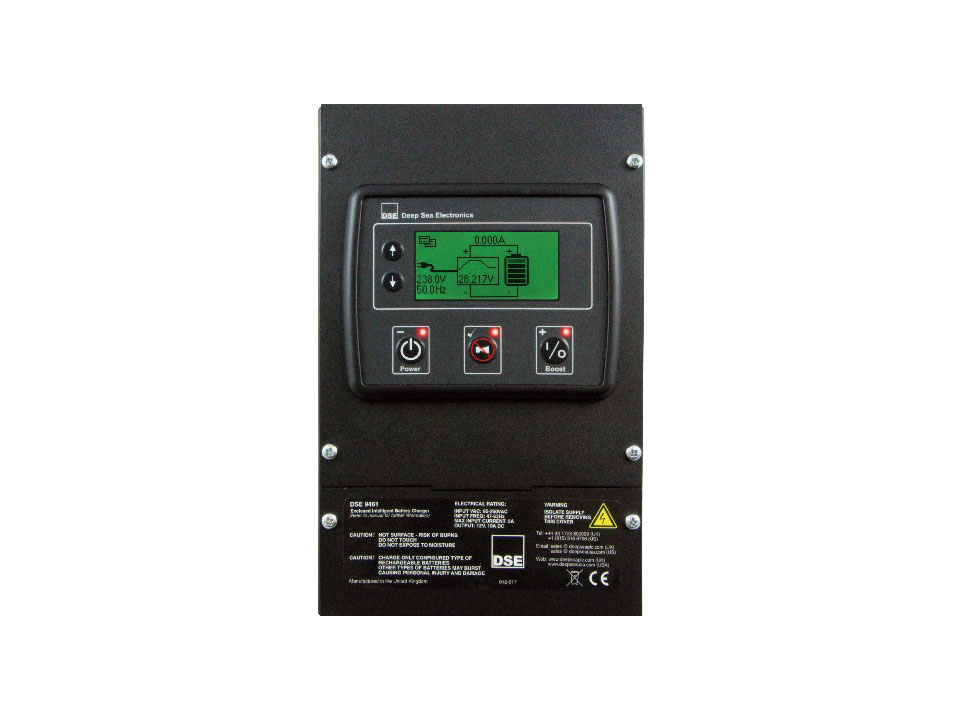

10 AMP Enclosed Intelligent Battery Charger DSE9461

Description	10 AMP Battery Charger
Place of origin	U.K
AC SUPPLY
VOLTAGE RANGE	90 V to 305 V (L-N)
FREQUENCY RANGE	48 Hz to 64 Hz (L-N)
DC OUTPUT RATING
OUTPUT	10 A DC at 12 V & 24 V DC
RIPPLE AND NOISE	<1%
EFFICIENCY	>86%
AUXILIARY OUTPUT	100 mA DC at 12 V
REGULATION
Line	<0.5%
LOAD	2%
TEMPERATURE SENSOR INPUT	PT1000
PROTECTIONS	Short Circuit DC Over Voltage DC Over Current Reverse Polarity Over Temperature AC Under & Over Voltage Battery Charger Failure
CHARGE FAILURE RELAY	3 A at 30 V DC volt free relay
DIMENSIONS
OVERALL	165 mm x 305 mm x 110 mm 6.5” x 12” x 4.3”
WEIGHT	2.3 kg
OPERATING TEMPERATURE RANGE	-30 °C to +55 °C -22 °F to +122 °F
STORAGE TEMPERATURE RANGE	-40 °C to +85 °C -40 °F to +182 °F
