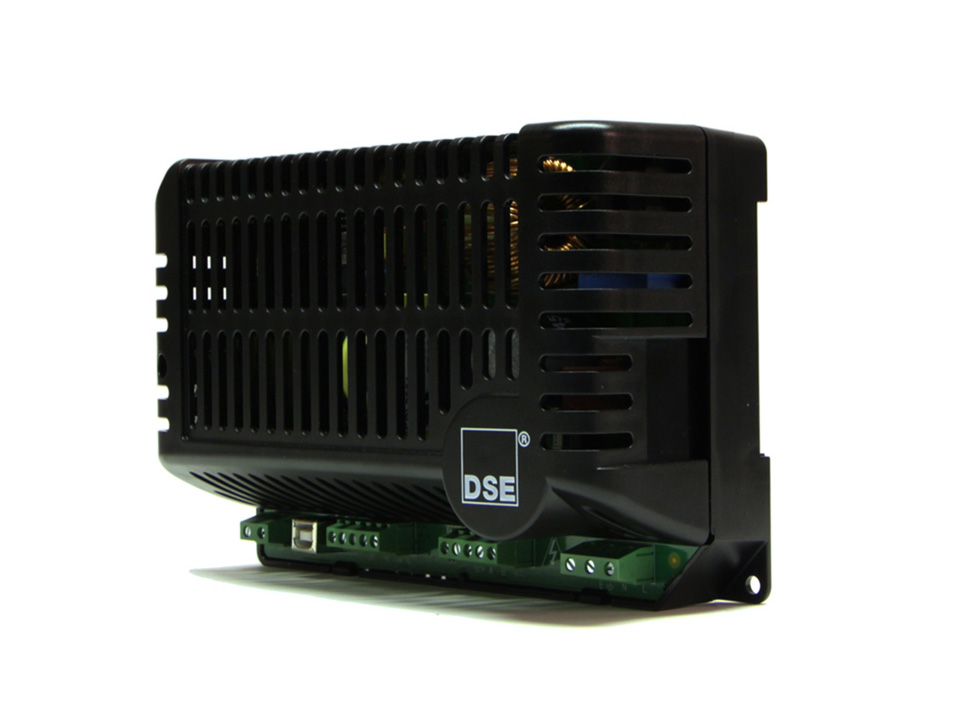

DSE9473 Genset Battery charger

Brief introduction:

The DSE9473 is an intelligent 24 volt, 15 amp switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery l...MORE >>

Classification:deepsea controller

Size:20X15X10 cm

Weight:1.2KG

Price:

Introduction

The DSE9473 is an intelligent 24 volt, 15 amp switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be Chassis or DIN Rail mounted and has three built-in LED’s to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.

OVERALL SIZE
80 mm x 205 mm x 135 mm (3.1″ x 8.1″ x 5.3″)

PRODUCT VARIANTS
9473-01 – 9473 24 volt 15 amp Intelligent Battery Charger (90-305v 50/60Hz)


AC SUPPLY

VOLTAGE RANGE
90 V to 305 V (L-N)

FREQUENCY RANGE
48 Hz to 64 Hz (L-N)

DC OUTPUT

DC OUTPUT
15 A DC 24 V DC

RIPPLE AND NOISE
1%

EFFICIENCY
>90%

REGULATION

LINE
<0.5%

LOAD
2%

TEMPERATURE SENSOR INPUT

PT1000

PROTECTIONS

Short Circuit
DC Over Voltage
DC Over Current
Reverse Polarity
Over Temperature
AC Under & Over Voltage

CHARGE FAILURE RELAY

3 A 30 V DC volt free relay
