The DSE7410 is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

A sophisticated module monitoring an extensive number of engine parameters, the DSE74x10 will
annunciate warnings, shutdown and engine status information on the back-lit LCD screen, illuminated
LED, remote PC, audible alarm and via SMS text alerts. The module includes RS232, RS485 & Ethernet
ports as well as dedicated terminals for system expansion.


Description

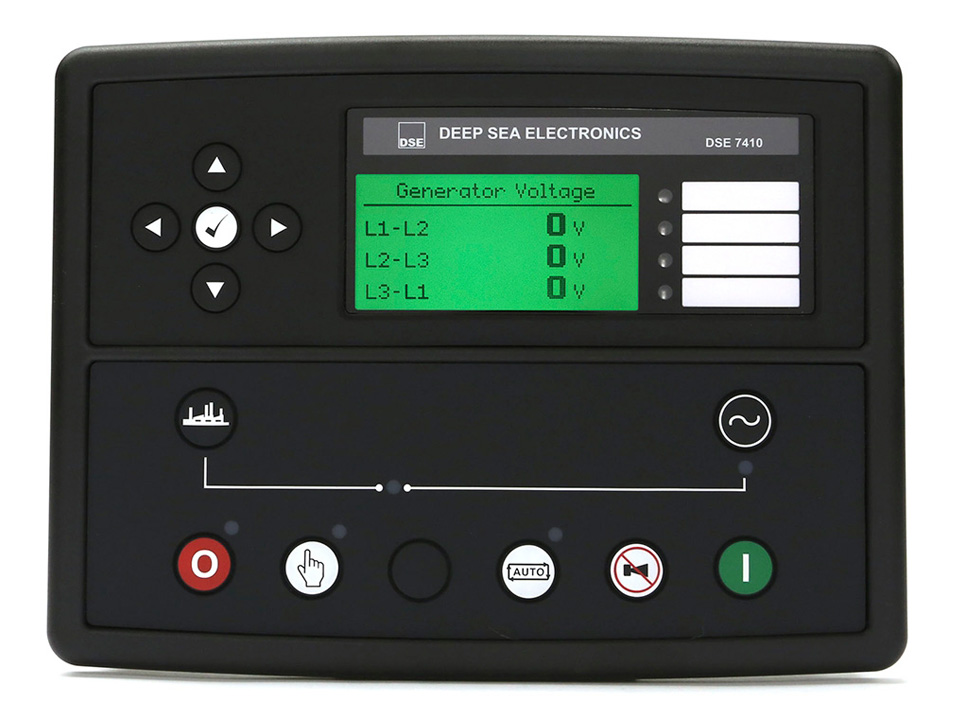

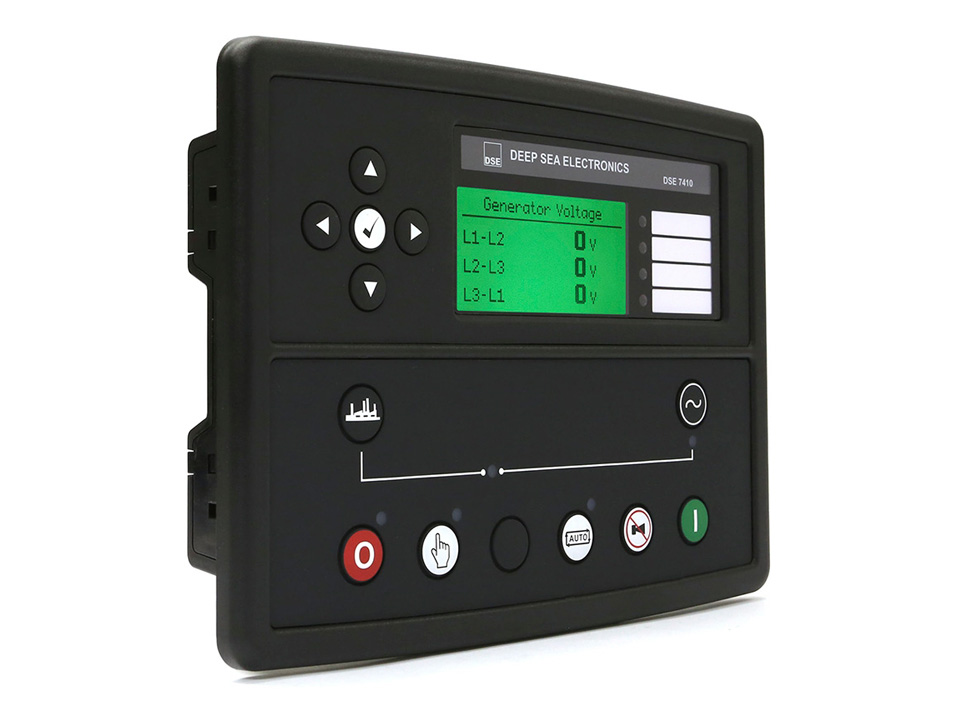

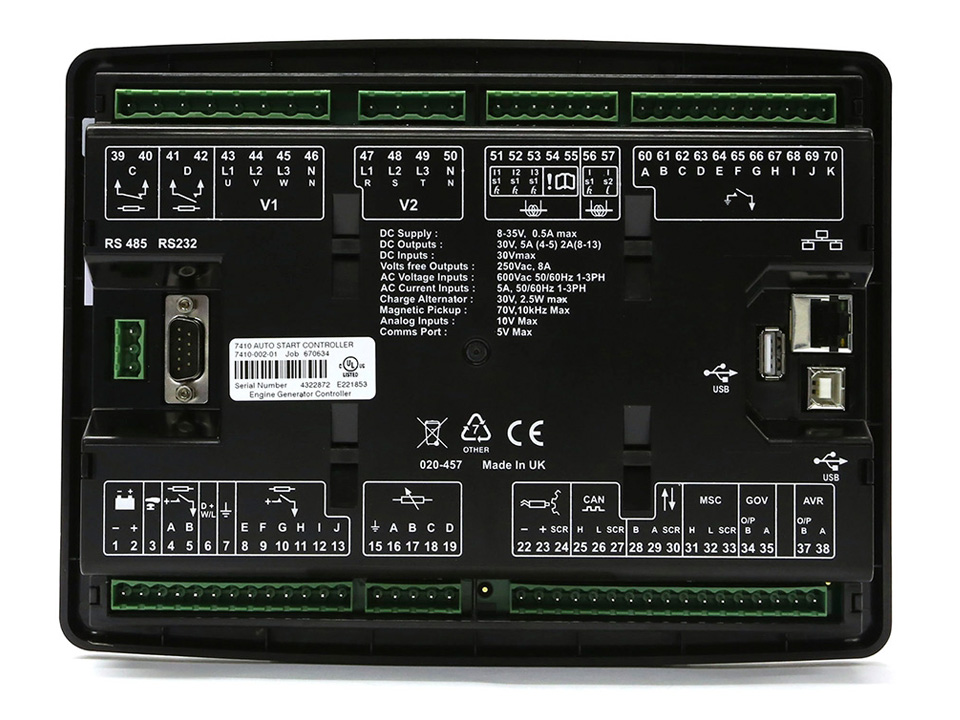

DSE7410 Auto Start Generator Control Panel

KEY FEATURES

• Configurable inputs (11)
• Configurable outputs (8)
• Voltage measurement
• Dedicated load test button
• kW overload alarms
• Comprehensive electrical protection
• RS232, RS485 & Ethernet remote communications
• Modbus RTU/TCP
• PLC functionality
• Multi event exercise timer
• Back-lit LCD 4-line text display
• Multiple display languages
• Automatic start/Manual start
• Audible alarm
• Fixed and flexible LED indicators
• Event log (250)
• Engine protection
• Fault condition notification to a designated PC
• Front panel mounting
• Protected front panel programming
• Configurable alarms and timers
• Configurable start and stop timers
• Five key menu navigation
• Front panel editing with PIN protection

• 3 configurable maintenance alarms
• CAN and Magnetic Pick-up/Alt. sensing
• Fuel usage monitor and low fuel alarms
• Charge alternator failure alarm
• Manual speed control (on compatible CAN engines)
• Manual fuel pump control
• “Protections disabled” feature
• Reverse power protection
• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
• Load switching (load shedding and dummy load outputs)
• Unbalanced load protection
• Independent Earth Fault trip
• Fully configurable via DSE Configuration Suite PC software
• Configurable display languages
• Remote SCADA monitoring via DSE Configuration Suite PC software
• Advanced SMS messaging (additional external modem required)
• Start & stop capability via SMS messaging
• Additional display screens to help with modem diagnostics
• DSENet® expansion compatible
• Integral PLC editor

KEY BENEFITS

• RS232, RS485 & Ethernet can be used at the same time
• DSENet® connection for system expansion
• PLC functionality
• Five step dummy load support
• Five step load shedding support
• High number of inputs and outputs
• Worldwide language support
• Direct USB connection to PC
• Ethernet monitoring
• USB host
• Data logging & trending

SPECIFICATION

DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
260 mA at 12 V, 130 mA at 24 V
MAXIMUM STANDBY CURRENT
120 mA at 12 V, 65 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C & D
8 A AC at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage

GENERATOR
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
BUS
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)

DIMENSIONS
OVERALL
240 mm x 172 mm x 57 mm
9.4” x 6.8” x 2.2”
PANEL CUTOUT
220 mm x 160 mm
8.7” x 6.3”
MAXIMUM PANEL THICKNESS
8 mm
0.3”

STORAGE TEMPERATURE RANGE
-40 °C  to +85 °C
