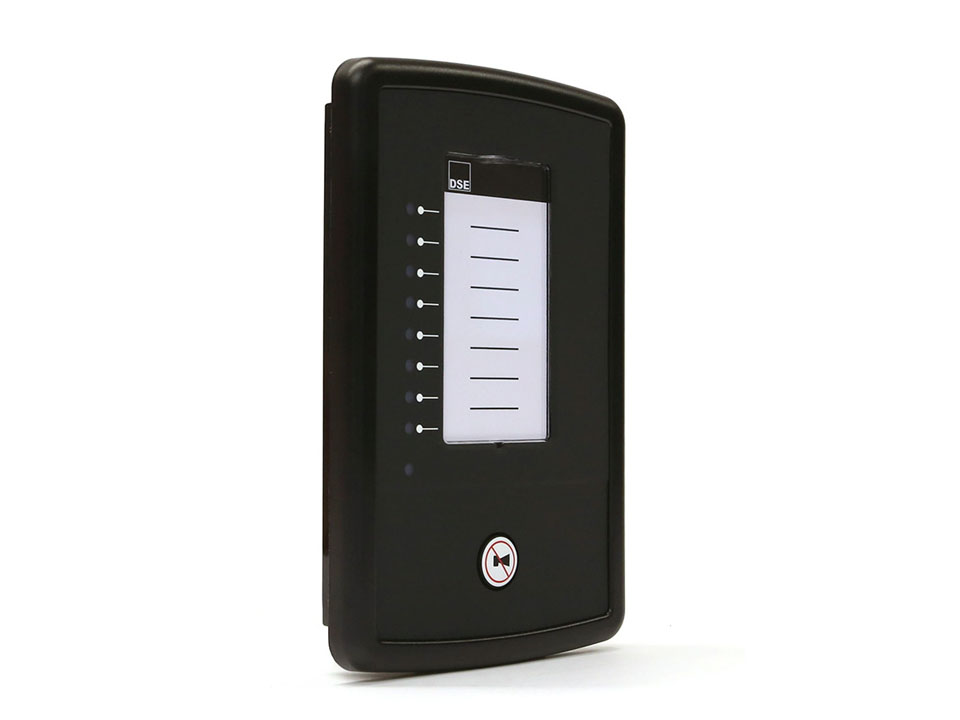

Deep Sea Electronics DSE2548 DSENet® Output Expansion Module

The DSE2548 is an output expansion module (Remote Annunicator) that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module. The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module. NFPA Approved.

OVERALL SIZE – 180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”)

WEIGHT – 0.36kg


The DSE2548 is an output expansion module (Remote Annunicator) that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module. The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module. NFPA Approved.

OVERALL SIZE – 180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”)

WEIGHT – 0.36kg

KEY Features and Benefits

• Panel mount.
• Vertical design.
• In-built alarm.
• Alarm mute button.
• Power on/link lost LED.
• Connect maximum of 10 x DSE2548’s to a single host controller.
• Max of 80 configurable LED’s

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
112 mA at 12 V, 53 mA at 24 V

MAXIMUM STANDBY CURRENT
74 mA at 12 V, 35 mA at 24 V
