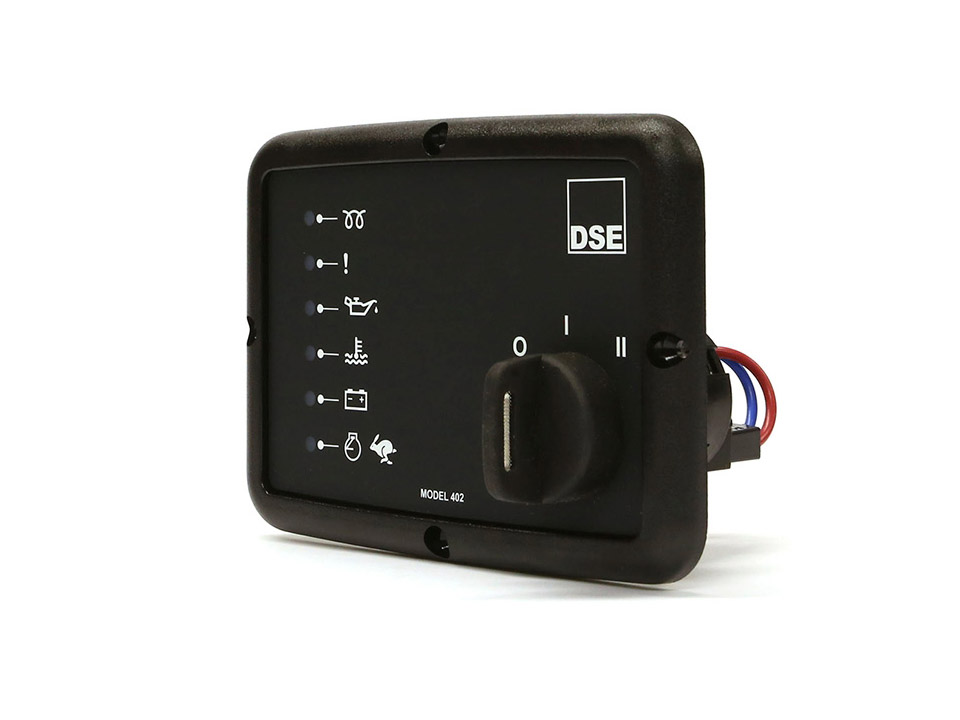

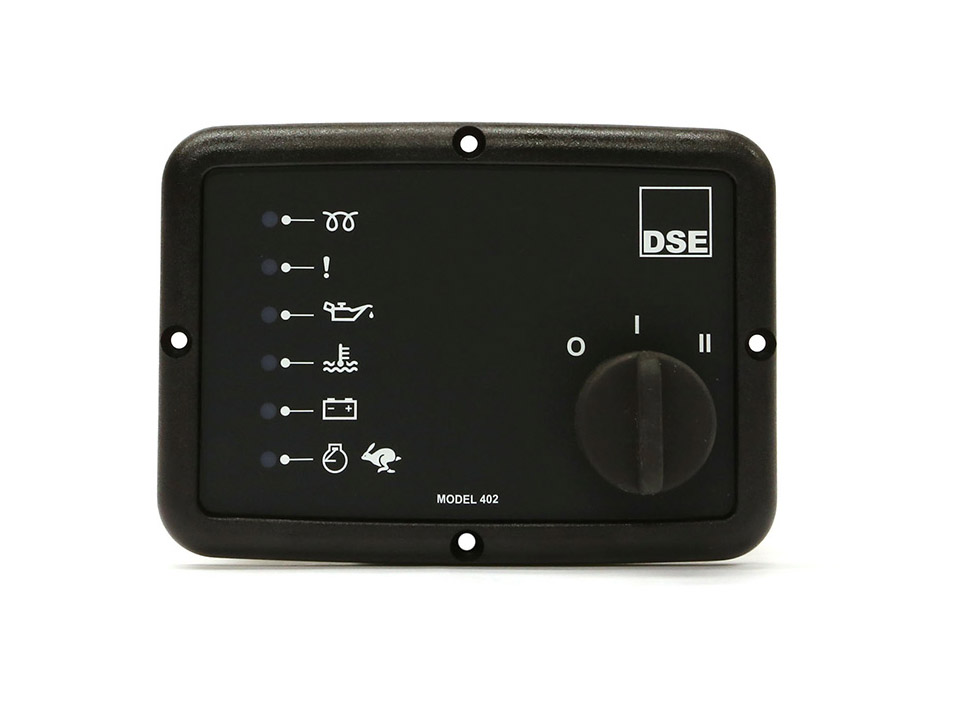

Deep Sea Electronics DSE402 MKII Waterproof Manual & Auto Start Control Module MPU

The DSE402 MKII is a waterproof Auto/Manual Start Control Module designed for generator and engine only applications. The intelligent design combines smart features with a waterproof key switch and enclosure to provide an excellent control option for wet/humid environments.

OVERALL SIZE
157 mm x 111 mm x 60 mm (6.2” x 4.4” x 2.4”)
Excludes Key Switch

PANEL CUTOUT SIZE
132 mm x 84 mm (5.2 ” x 3.4″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.45kg


Description

Deep Sea Electronics DSE402 MKII Waterproof Manual & Auto Start Control Module MPU

The DSE402 MKII is a waterproof Auto/Manual Start Control Module designed for generator and engine only applications. The intelligent design combines smart features with a waterproof key switch and enclosure to provide an excellent control option for wet/humid environments.

OVERALL SIZE
157 mm x 111 mm x 60 mm (6.2” x 4.4” x 2.4”)
Excludes Key Switch

PANEL CUTOUT SIZE
132 mm x 84 mm (5.2 ” x 3.4″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.45kg

KEY Features and Benefits

• Front panel waterproof key switch.
• Ensures the generator can only be operated when the key is used and prevents water ingress.
• Potted electronics.
• Prevents water ingress and vibration damage.
• Low oil pressure protection.
• Protects engine from long-term damage.
• Remote start input.
• Provides a simple connection to operate the generator from a remote location.
• Remote start input.
• Provides simple connection for a remote stop switch.
• Engine pre-heat.
• Warms the engine to a safe temperature at start-up to increase engine life.
• LED status indication.
• Provides instant system status from the front panel.
• Over speed & high engine temperature protection.
• Protects engine from long-term damage.
• DSE Configuration Suite Lite PC Software (DSE813 required).
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.

MAXIMUM OPERATING CURRENT
120 mA at 12 V, 170 mA at 24 V

TYPICAL OPERATING CURRENT
60 mA at 12 V, 75 mA at 24 V In stop position consumption is zero.

CHARGE/FAIL EXCITATION RANGE
0 V to 35 V

OUTPUTS

FUEL
15 A DC at supply voltage

START
15 A DC at supply voltage

PRE-HEAT
2 A DC at supply voltage
