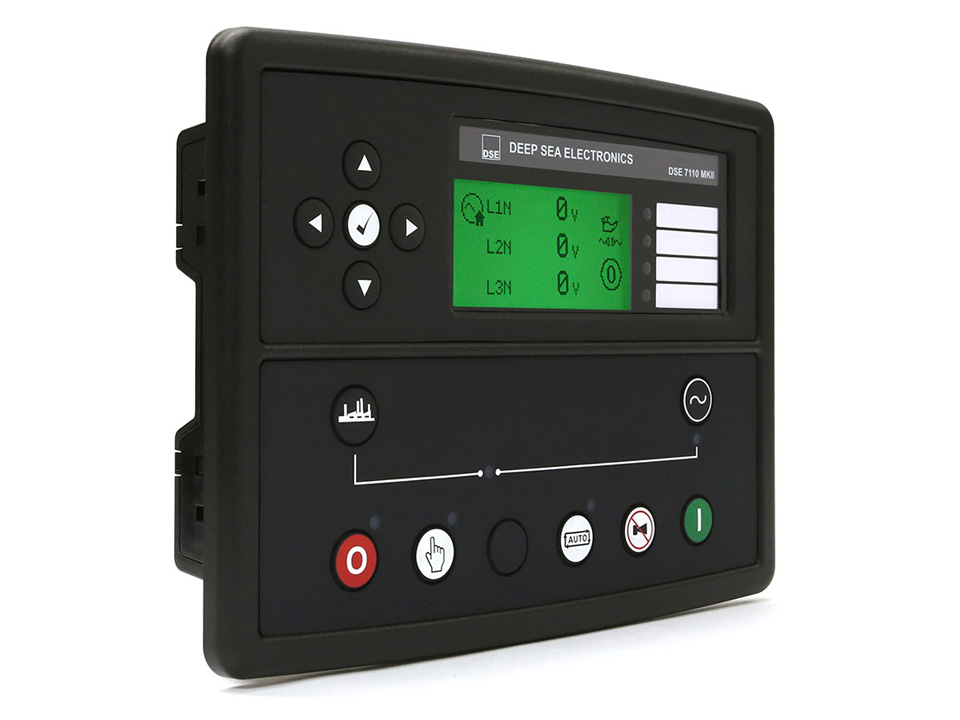

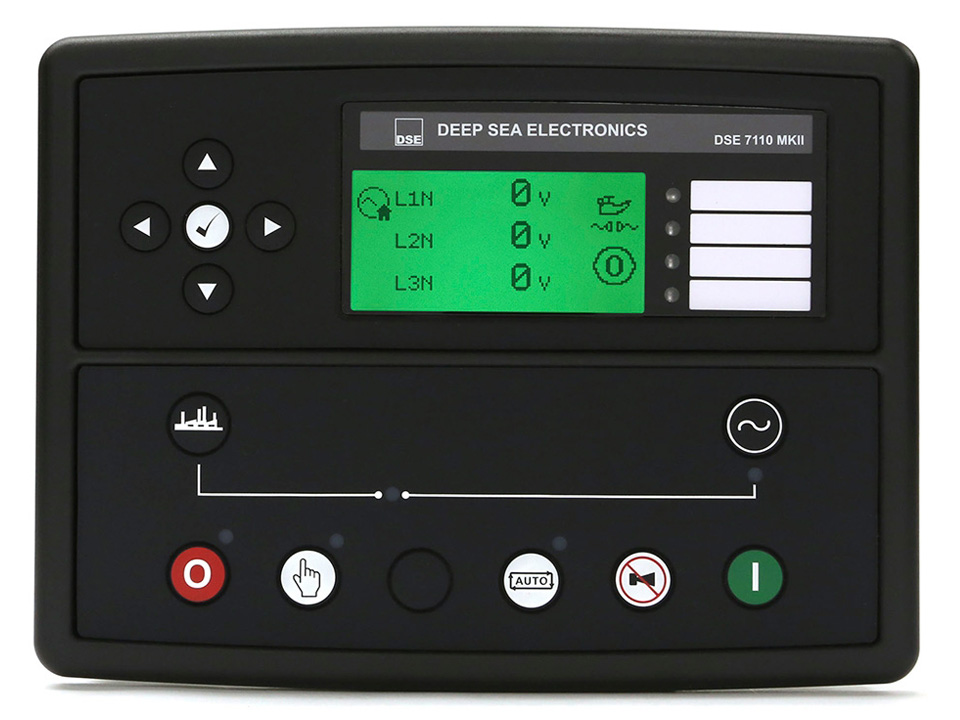

Deep Sea Electronics DSE7110 MKII Auto Start Control Module

The DSE7110 MKII is an Auto Start Control Module with an icon-based display. The control module has been designed to control single diesel or gas gen-set applications.

OVERALL SIZE – 240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE – 220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS – 8.0 mm (0.3”)

WEIGHT – 0.82kg

 Key Features and Benefits:

• Large back-lit icon LCD display
• Heated display option
• 3-phase generator sensing
• Generator & load power monitoring (kW, kV A, kV Ar, pf)
• Generator overload protection (kW)
• Generator/load current monitoring & protection
• Configurable analogue/digital inputs
• Configurable DC, volt-free and staged loading outputs
• CAN, MPU & alternator speed sensing (selectable depending on engine type)
• Tier 4 CAN engine support
• Configurable event log (50)
• DSE Configuration Suite PC Software
• Displays information to the operator in a clear and concise format
• Ensures the display continues to operate in extreme cold weather conditions
• Provides true generator sensing
• Provides clear accurate power measurement information
• Provides engine overload protection
• Provides convenience of monitoring and protection of the generator or monitoring of the load current
• Provides multiple installation options
• Makes the module ideal for standard and electronic engine applications
• Ensures the control module can be used with the latest in modern electronic engine technology
• Provides access to historical alarms and operational status
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring



Ordering Options

Choose an optionDSE7110MKII Auto Start Control ModuleDSE7110MKII Auto Start Control Module + Heated Display

Deep Sea Electronics DSE7110 MKII Auto Start Control Module DSE 7110MKII #7110-31 #7110-32 quantity
ADD TO CART

SKU: N/ACategories: Control Panel, Generator Parts & AccessoriesTags: auto start controller module, Deep sea electronics, DSE7110, DSE7110MKII, Manual Start Control Module

• Description
• Additional information

Description

Deep Sea Electronics DSE7110 MKII Auto Start Control Module

The DSE7110 MKII is an Auto Start Control Module with an icon-based display. The control module has been designed to control single diesel or gas gen-set applications.

OVERALL SIZE – 240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE – 220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS – 8.0 mm (0.3”)

WEIGHT – 0.82kg

Key Features and Benefits:

• Large back-lit icon LCD display
• Heated display option
• 3-phase generator sensing
• Generator & load power monitoring (kW, kV A, kV Ar, pf)
• Generator overload protection (kW)
• Generator/load current monitoring & protection
• Configurable analogue/digital inputs
• Configurable DC, volt-free and staged loading outputs
• CAN, MPU & alternator speed sensing (selectable depending on engine type)
• Tier 4 CAN engine support
• Configurable event log (50)
• DSE Configuration Suite PC Software
• Displays information to the operator in a clear and concise format
• Ensures the display continues to operate in extreme cold weather conditions
• Provides true generator sensing
• Provides clear accurate power measurement information
• Provides engine overload protection
• Provides convenience of monitoring and protection of the generator or monitoring of the load current
• Provides multiple installation options
• Makes the module ideal for standard and electronic engine applications
• Ensures the control module can be used with the latest in modern electronic engine technology
• Provides access to historical alarms and operational status
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring



Additional Features:

• Hours counter
• Multiple display parameters
• Extensive configuration options
• Engine maintenance alarms (3)
• Manual fuel pump control
• Engine protections
• Engine pre-heat
• Run time scheduler
• Battery voltage monitoring
• Start on low battery
• Backed-up real time clock



DC Supply:

• CONTINUOUS VOLTAGE RATING – 8V to 35V Continuous
• CRANKING DROPOUTS – Able to survive 0V for 50 mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
• MAXIMUM OPERATING CURRENT – 290 mA at 12V, 140 mA at 24V
• MAXIMUM STANDBY CURRENT – 75 mA at 12V, 40 mA at 24V
• CHARGE FAIL/EXCITATION RANGE – 0 V to 35V



Generator:

• VOLTAGE RANGE – 15V to 415V AC (Ph to N)
• VOLTAGE RANGE – 26V to 719V AC (Ph to Ph)
• FREQUENCY RANGE – 3.5 Hz to 75 Hz



Outputs:

• OUTPUT A (FUEL) – 10A short term, 5 A continuous, at supply voltage
• OUTPUT B (START) – 10A short term, 5 A continuous, at supply voltage
• OUTPUTS C & D – 8 A AC at ­­­250 V AC (Volt-free)
• AUXILIARY OUTPUTS E, F, G, H – 2 A DC at supply voltage



Magnetic Pick Up:

• VOLTAGE RANGE – +/- 0.5V to 70V
• FREQUENCY RANGE – 10,000 Hz (max)
