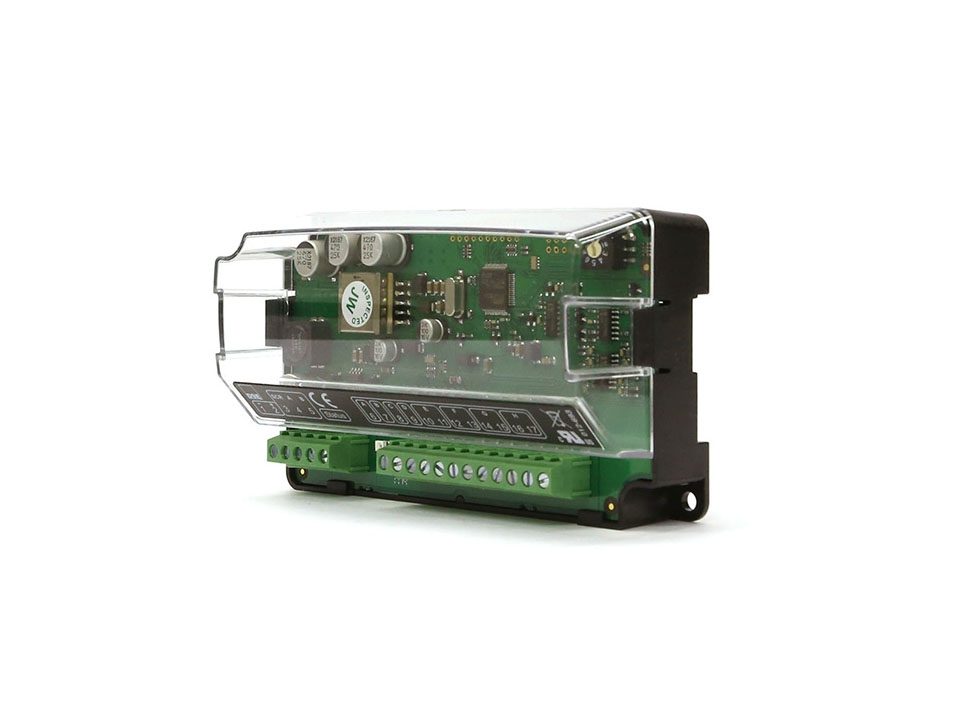

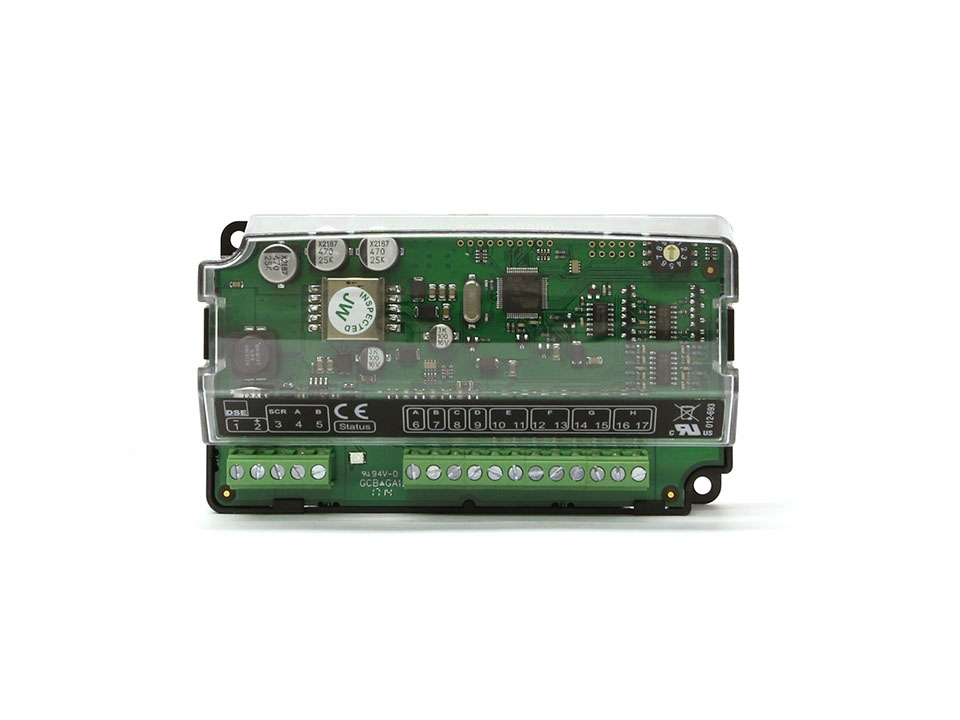

The DSE2130 is an input expansion module designed to give Original Equipment Manufacturers (OEMs) greater flexibility when trying to meet complex industry generator control specifications.

The module includes eight digital inputs. Four of these can be configured for use as analogue inputs. All configurations are controlled within the host control module.

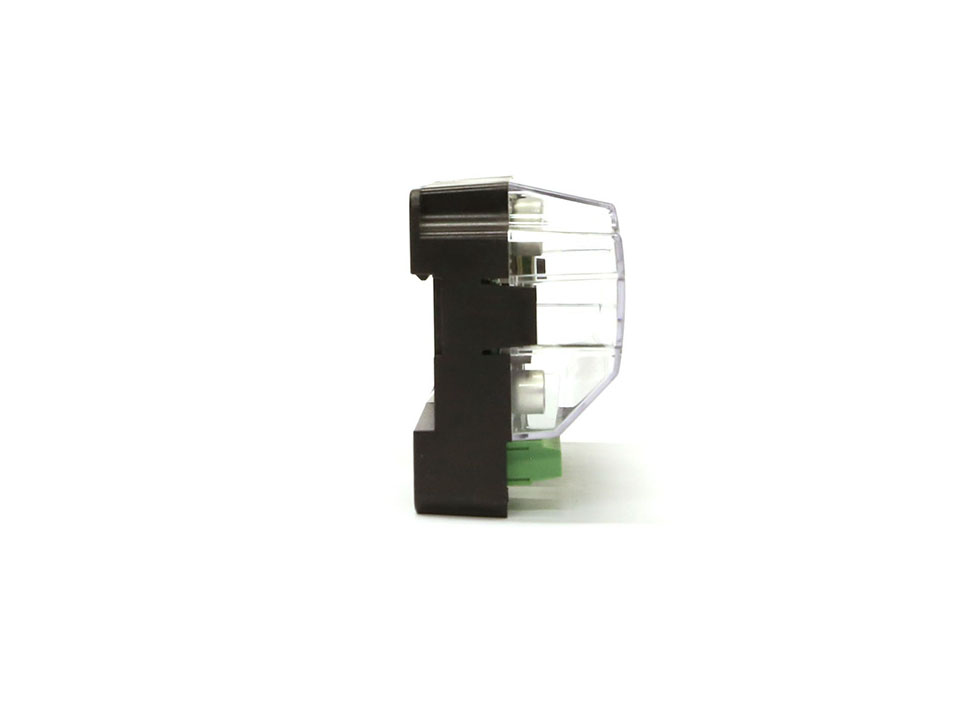

OVERALL SIZE – 134 mm x 76 mm x 49 mm (5.3” x 3.0” x 1.9”)

WEIGHT – 0.18kg


Description

Deep Sea Electronics DSE2130 DSENet® Input Expansion Module

The DSE2130 is an input expansion module designed to give Original Equipment Manufacturers (OEMs) greater flexibility when trying to meet complex industry generator control specifications.

The module includes eight digital inputs. Four of these can be configured for use as analogue inputs. All configurations are controlled within the host control module.

KEY Features and Benefits

• DIN rail & chassis mount.
• Power on/link lost LED.
• 2km (0.75 Mile) working range.
• Connect maximum of 4 x DSE2130’s to a single host controller.
• Rotary ID switch to select address of DSE2130 to talk with host module when multiple DSE2130 modules are in use.
• Max of 32 digital inputs – 16 can be configured for use as analogue.

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
200 mA at 12 V, 100 mA at 24 V

MAXIMUM STANDBY CURRENT
120 mA at 12 V, 60 mA at 24 V
