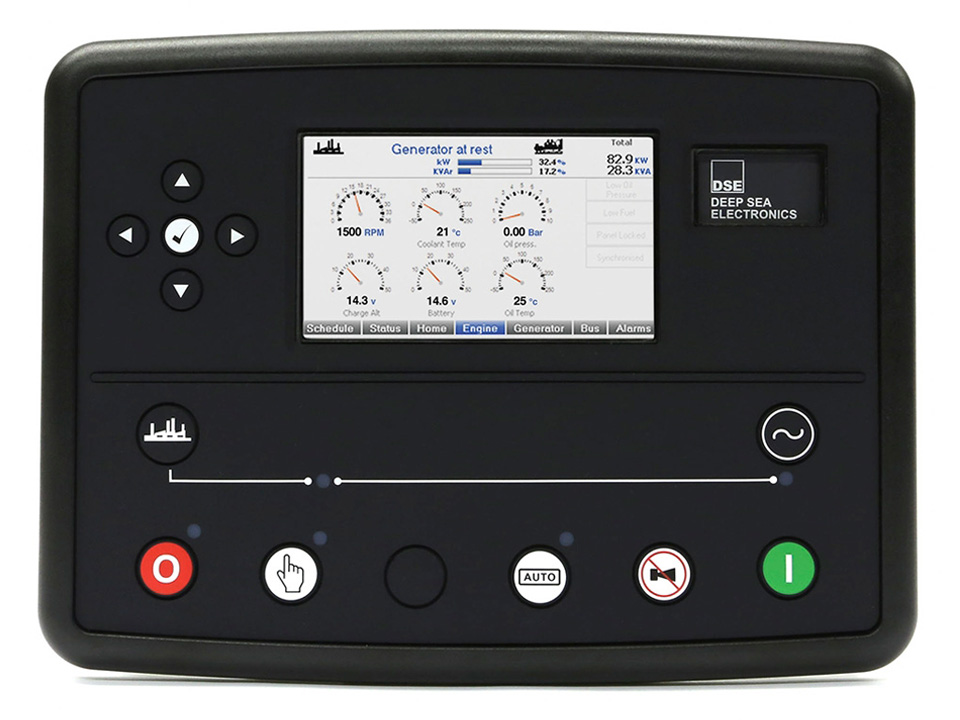

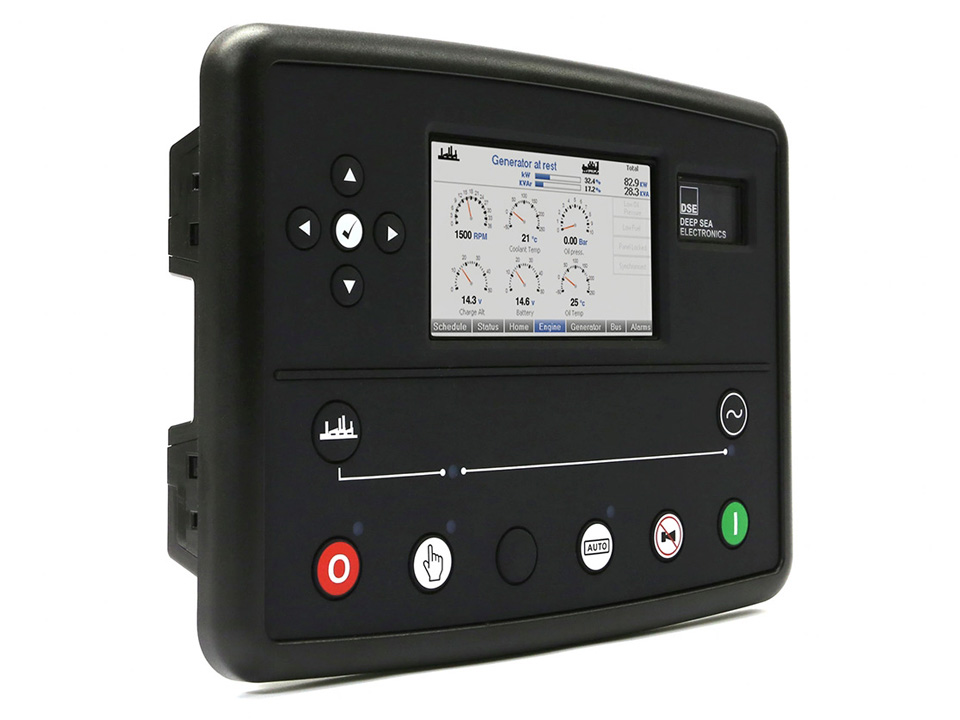

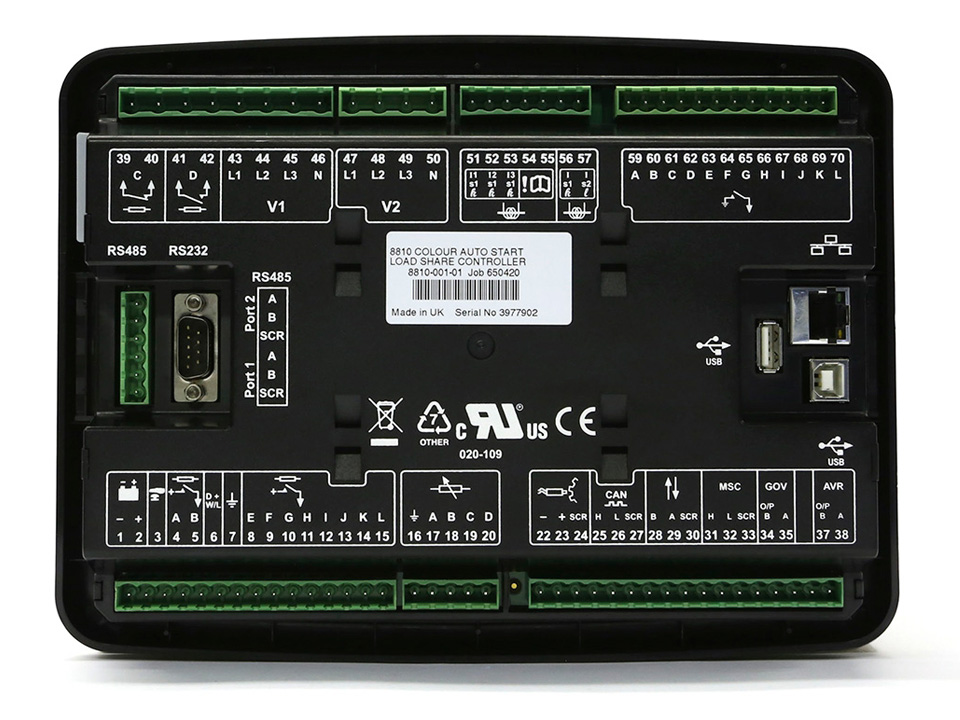

Deep Sea Electronics DSE8810 Load Share Control with Graphical Color Display

The DSE8810 is an intelligent graphical colour display load share control module packed with industry leading features to enhance multi-set control. The module can be synchronised with up to 32 generators within the same system.

OVERALL SIZE
245 mm x 184 mm x 50 mm (9.6” x 7.2” x 2.0”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.98kg

Key Features and Benefits:

• 32-set synchronisation.
• Offers optimum flexibility for system expansion.
• Configurable inputs/outputs (11/8).
• Provides multiple installation options.
• Dead bus sensing.
• Provides rapid power delivery on multi-set systems.
• Direct governor & AVR control.
• Eliminates the requirement for external control equipment.
• kW & kV Ar load sharing.
• Provides controlled power delivery.
• Remote communications (RS232, RS485 x2, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• Load switching, load shedding & dummy load outputs.
• Allows load options and dummy load requirements to be independently controlled.
• Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.
• Provides clear accurate power measurement information.
• Data logging (HDD/USB).
• Provides current and historical status information.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

• Description

  Deep Sea Electronics DSE8810 Load Share Control with Graphical Color Display

  The DSE8810 is an intelligent graphical colour display load share control module packed with industry leading features to enhance multi-set control. The module can be synchronised with up to 32 generators within the same system.

  OVERALL SIZE
  245 mm x 184 mm x 50 mm (9.6” x 7.2” x 2.0”)

  PANEL CUTOUT SIZE
  220 mm x 160 mm (8.7″ x 6.3″)

  MAXIMUM PANEL THICKNESS
  8.0 mm (0.3”)

  WEIGHT
  0.98kg

  Key Features and Benefits:

• 32-set synchronisation.
• Offers optimum flexibility for system expansion.
• Configurable inputs/outputs (11/8).
• Provides multiple installation options.
• Dead bus sensing.
• Provides rapid power delivery on multi-set systems.
• Direct governor & AVR control.
• Eliminates the requirement for external control equipment.
• kW & kV Ar load sharing.
• Provides controlled power delivery.
• Remote communications (RS232, RS485 x2, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• Load switching, load shedding & dummy load outputs.
• Allows load options and dummy load requirements to be independently controlled.
• Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.
• Provides clear accurate power measurement information.
• Data logging (HDD/USB).
• Provides current and historical status information.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

• DC SUPPLY

  CONTINUOUS VOLTAGE RATING
  8 V to 35 V continuous

  CRANKING DROPOUTS

  Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

  MAXIMUM OPERATING CURRENT
  600 mA at 12 V, 300 mA at 24 V

  MAXIMUM STANDBY CURRENT
  330 mA at 12 V, 160 mA at 24

  CHARGE FAIL/EXCITATION RANGE
  0 V to 35 V

  OUTPUTS

  OUTPUT A (FUEL)
  15 A DC at supply voltage

  OUTPUT B (CRANK)
  15 A DC at supply voltage

  OUTPUTS C & D
  8 A AC at 250 V AC (Volt free)

  AUXILIARY OUTPUTS E TO L
  2 A DC at supply voltage

  GENERATOR & BUS

  VOLTAGE RANGE
  15 V to 333 V AC (L-N)

  FREQUENCY RANGE
  3.5 Hz to 75 Hz

  MAGNETIC PICK-UP

  VOLTAGE RANGE
  +/- 0.5 V to 70 V

  FREQUENCY RANGE
  10,000 Hz (max)

  BUILT-IN GOVERNOR CONTROL

  MINIMUM LOAD IMPEDANCE
  1000Ω
  Fully isolated

  GAIN VOLTAGE
  0 V to 10 V DC
  Fully isolated

  OFFSET VOLTAGE
  +/- 10 V DC
  Fully isolated

  BUILT-IN AVR CONTROL

  MINIMUM LOAD IMPEDANCE
  1000Ω
  Fully isolated

  GAIN VOLTAGE
  0 V to 10 V DC
  Fully isolated

  OFFSET VOLTAGE
  +/- 10 V DC
  Fully isolated
