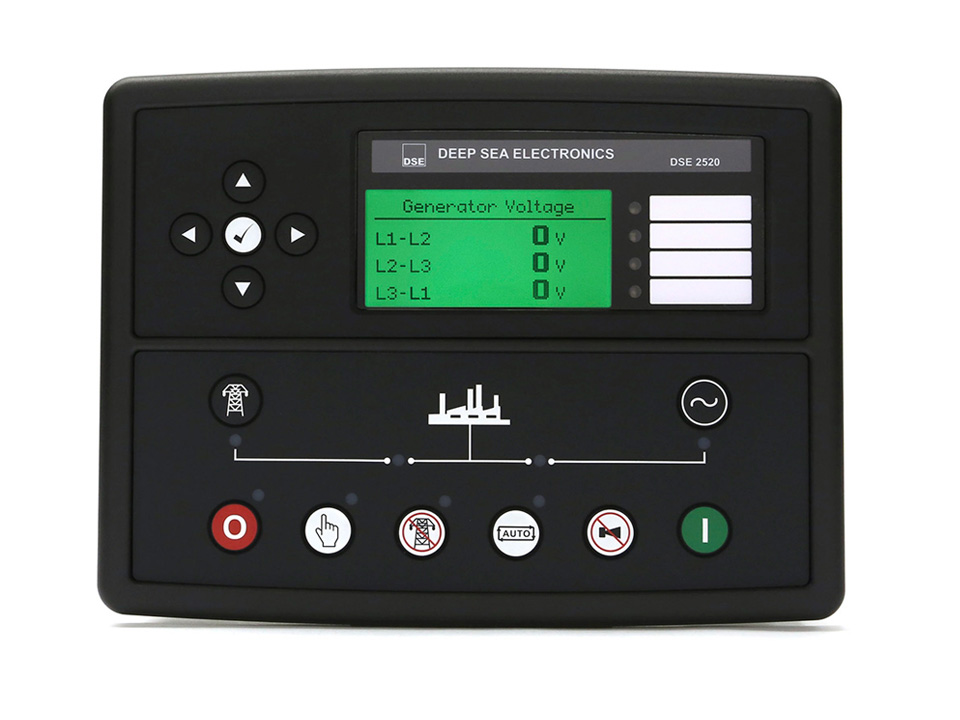

The DSE2520 remote display module is designed specifically for use with the DSE73xx control modules. A maximum of three remote display controls can be connected to a single host controller. The remote display can be located up to a maximum of 1km away.

Each remote display provides the same high level of instrumentation that can be found in the host control module. All remote displays connected show the same display information. The host controller can be configured to show different information.

OVERALL SIZE – 240 mm x 181.1 mm x 41.7 mm (9.4” x 7.1” x 1.6”)

WEIGHT – 0.75kg


Deep Sea Electronics DSE2520 Remote Display Module Auto Mains Utility Failure

The DSE2520 remote display module is designed specifically for use with the DSE73xx control modules. A maximum of three remote display controls can be connected to a single host controller. The remote display can be located up to a maximum of 1km away.

Each remote display provides the same high level of instrumentation that can be found in the host control module. All remote displays connected show the same display information. The host controller can be configured to show different information.

OVERALL SIZE – 240 mm x 181.1 mm x 41.7 mm (9.4” x 7.1” x 1.6”)

WEIGHT – 0.75kg

KEY Features and Benefits

• Panel mount.
• 1 km (0.6 Mile) working range.
• Connect maximum of 3 x DSE2520’s to a single host control module.
• Test button.
• Load switch button.
• Configured via the host module.

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
340mA at 12V 160mA at 24V

MAXIMUM STANDBY CURRENT
160mA at 12V 80mA at 24V
