Brief introduction:
The DSE103MKII Speed Switch Controller has been designed to monitor the speed of an engine bydetecting pulses from a magnetic pick-up device or alternative outp...MORE >>
Classification:deepsea controller
Size:10X8X6 cm
Weight:0.2kg
Price:
Introduction

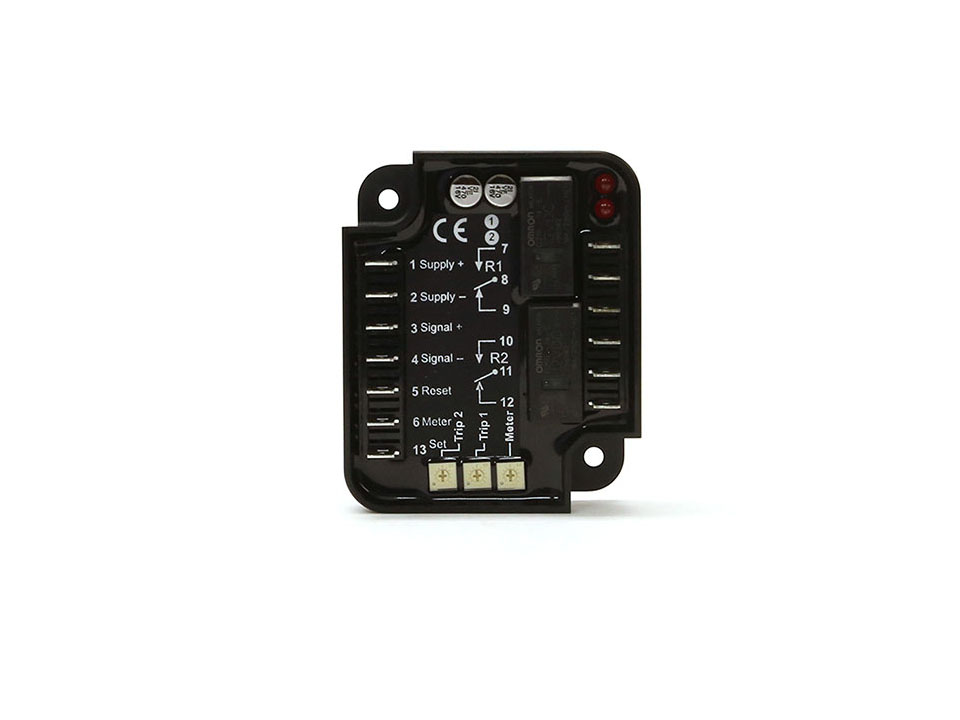

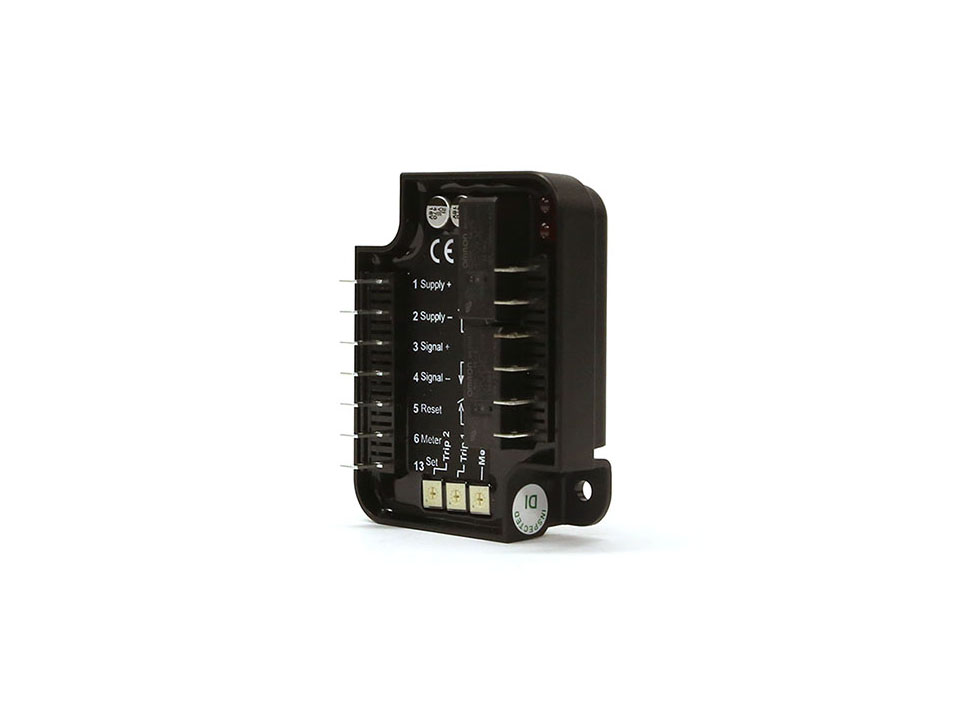

The DSE103MKII Speed Switch Controller has been designed to monitor the speed of an engine by
detecting pulses from a magnetic pick-up device or alternative output.
The speed switch can be set to operate the independent relays at different speed settings. Both
relays can be adjusted to operate from between 0% and 400% of the engine’s rated running speed.
This flexibility allows the module to be used for many different applications including under speed
or over speed protection or crank disconnect. The nominal speed input can be set on the unit meaning that the majority of applications will not
require any PC software configuration. Meter calibration can be achieved using the pre-set potentiometer or the PC software. Configuration enables the meter output to be scaled to match the optional RPM meter. The speed switch is presented in a durable ABS plastic enclosure and is fully potted to protect against the harshest environments.
KEY FEATURES
• Configurable trip points • Configurable nominal speed • Trip points can be configured to be latching or non-latching • Analogue meter output • Potted enclosure • Spade terminals for easy connection
KEY BENEFITS
• Can be used for magnetic pick-up or alternator frequency sensing • Intuitive manual set-up procedure for nominal speed and trip points • Comprehensive PC configuration using Configuration Suite Lite • Compact design
DC SUPPLY CONTINUOUS VOLTAGE RATING 8 V to 35 V Continuous
CRANKING DROPOUTS Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
MAXIMUM OPERATING CURRENT 95 mA at 12 V, 100 mA at 24 V
MINIMUM OPERATING CURRENT 21 mA at 12 V, 22 mA at 24 V
OUTPUTS TRIP 1 & 2 16 A at 35 V DC/AC
TACHOMETER 1mA Full Scale
ALTERNATOR VOLTAGE RANGE 15 V – 333 V AC (L-N) RMS
FREQUENCY RANGE 3.5 Hz to 75 Hz
MAGNETIC PICK UP VOLTAGE RANGE +/- 0.7 V to 70 V RMS
FREQUENCY RANGE 10,000 Hz (max)
DIMENSIONS OVERALL 88 mm x 72 mm x 26 mm 3.4” x 2.8” x 1.0”
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2 EMC Generic Immunity Standard for the Industrial Environment BS EN 61000-6-4 EMC Generic Emission Standard for the Industrial Environment
ELECTRICAL SAFETY
BS EN 60950 Safety of Information Technology Equipment, including Electrical Business Equipment
TEMPERATURE
BS EN 60068-2-1 Ab/Ae Cold Test -30 °C BS EN 60068-2-2 Bb/Be Dry Heat +70 °C
VIBRATION
BS EN 60068-2-6 Ten sweeps in each of three major axes 5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn
HUMIDITY
BS EN 60068-2-30 Db Damp Heat Cyclic 20/55 °C @ 95% RH 48 Hours BS EN 60068-2-78 Cab Damp Heat Static 40 °C @ 93% RH 48 Hours
SHOCK
BS EN 60068-2-7 Three shocks in each of three major axes 15 gn in 11 mS
