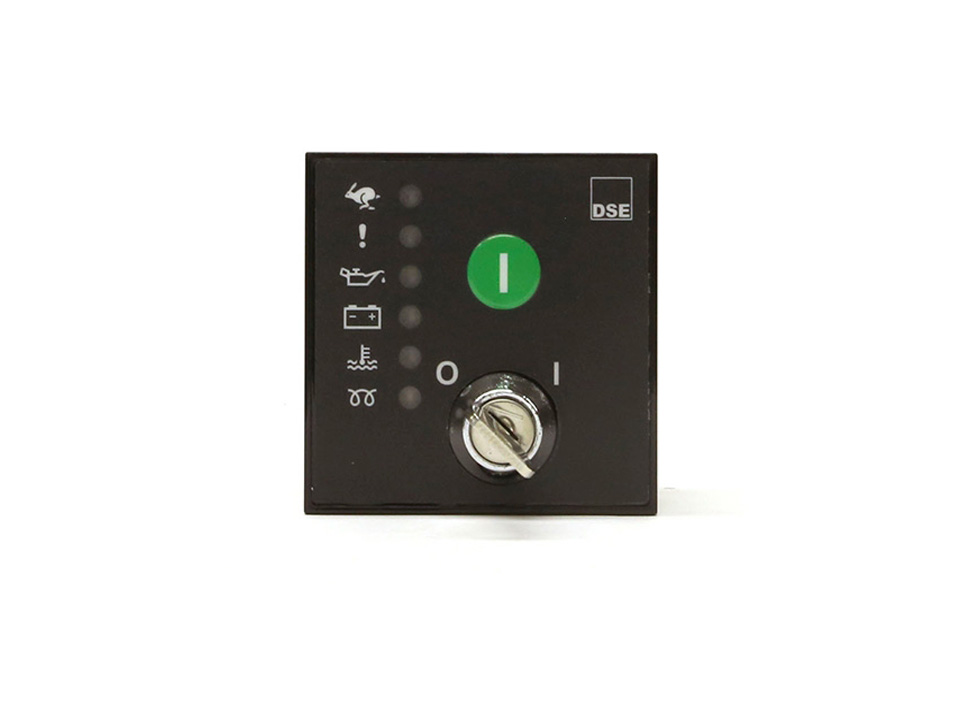

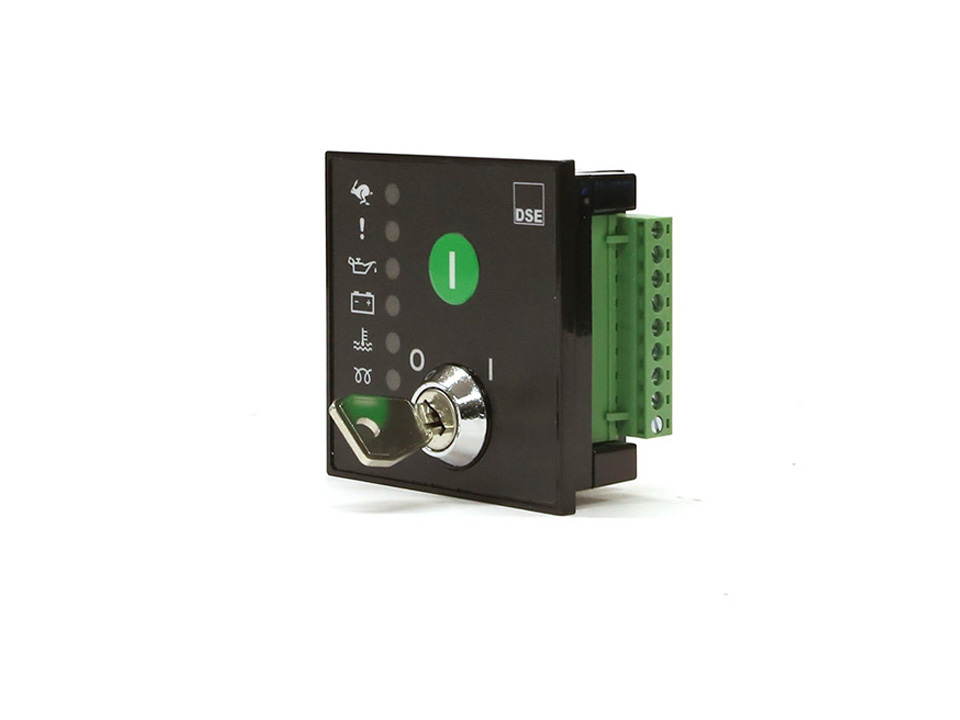

Deep Sea Electronics DSE701 MKII Auto Start Control Module

The DSE701 MKII is a compact control module that offers a range of features for single-set applications.

OVERALL SIZE
72 mm x 72 mm x 38 mm (2.8” x 2.8” x 1.5”)
Excludes Key Switch

PANEL CUTOUT SIZE
68 mm x 68 mm (2.7 ” x 2.7″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.14kg

KEY Features and Benefits

• Front panel key switch.
• Ensures the generator can only be operated when the key is used.
• Configurable for use as a manual or auto start control module.
• Helps to reduce module variants held in stock.
• Auxiliary shutdown input (manual mode only).
• Provides a simple input for a remote stop switch.
• LED status indication.
• Provides instant generator operating status.
• Engine pre-heat.
• Warms the engine to a safe temperature at start-up to increase engine life.
• Engine monitoring & protection.
• Protects engine from long-term damage.
• Over speed protection.
• Prevents engines running too fast and becoming damaged.
• DSE Configuration Suite Lite PC Software (DSE813 required).
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
• Monitors battery charging status using the WL terminal on the charge alternator.
• When the battery has a charging fault the module illuminates an LED on its front panel.
