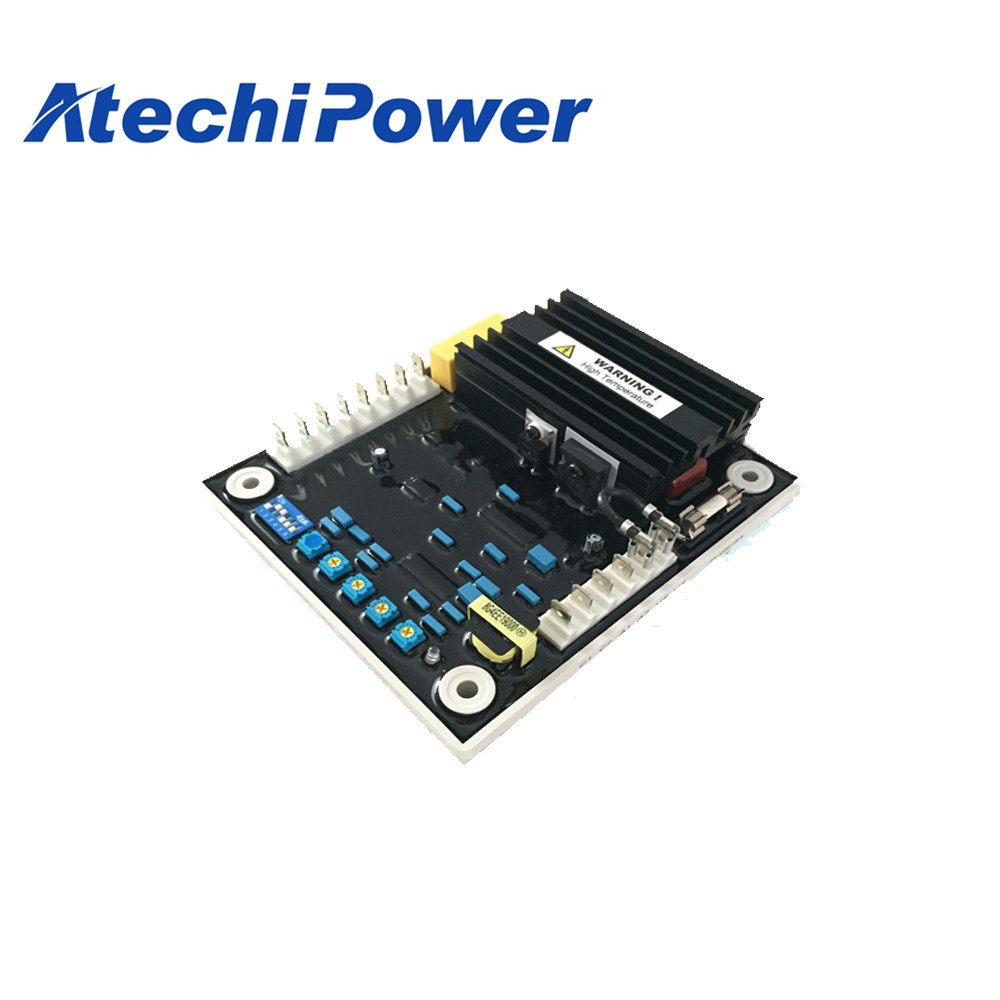

AVR EA63-5 for Synchronous Generator

Brief introduction：

Power Genset Universal AVR EA63-5 for Synchronous GeneratorEA63-5 is an automatic voltage regulator (AVR) for AMG synchronous generator industrialapplication se...MORE >>

Classification：KUTAI AVR

Size：20X15X10 cm

Weight：1KG

Price：

Introduction

Power Genset Universal AVR EA63-5 for Synchronous Generator

EA63-5 is an automatic voltage regulator (AVR) for AMG synchronous generator industrial

application series. The AVR is typically supplied by a single-phase auxiliary winding wound into the
stator slots. It also can be supplied by permanent magnet generator (PMG) or phase voltage of
main terminal.

Specification

Sensing Input	Voltage 220/440 VAC 50/60 Hz 1Ø 185~290 VAC @ 220 Vac 330~515 VAC @ 440 VAC
Power Input	Input(1Ø) 30~260 VAC 40~500Hz Output 85VDC @ 110 VAC Power input , 170 Vdc @ 220 Vac Power input
Output	Current Continuous 5ADC , Maximum 40ADC
Frequency	50/60 Hz (SW3 Selectable) 40~50Hz @ 50Hz Preset 47Hz 49~60Hz @ 60Hz Preset 57Hz
Build Up Voltage	Residual volts at AVR terminal > 5 VAC @ 25Hz
Voltage Adjustment	< 1.0% (Engine speed variation within 4%)
Thermal Drift	< 0.45% @ -35~+65°C
External Volts Adjustment VR	±10% with 1K ohm 0.5 watt trimmer
Excitation Resistance	> 9 ohm
Current Compensation	1 or 5A > 0.2 VA (SW2 Selectable) Max. ±7% @ P.F ±0.7
Analogue Voltage Input	Un 0~15% @ 0~10 Vdc
Respond Time	< 1 Cycle
Unit Power Dissipation	Max. 12 watts
Dimensions	140.0 x 125.0 x 43.0 mm
