Brief introduction:

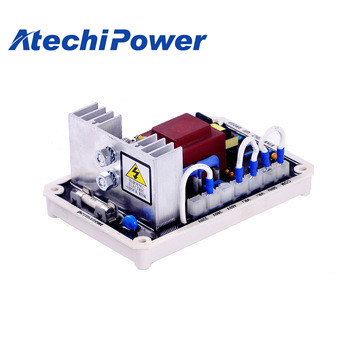

AVR EA15A-2 Sensing Input 220/380/440VAC , 1 phase 2 wire Frequency: 50-60Hz nominal Voltage input: 100-300VAC max...MORE >>
Classification:KUTAI AVR
Size:20X15X10 cm
Weight:1KG
Price:
Introduction
AVR | EA15A-2 |
Sensing Input | |
220/380/440VAC , 1 phase 2 wire | |
Frequency: | 50-60Hz nominal |
Voltage input: | 100-300VAC |
max90VDC at 240VAC input | |
Current: | continuous 5A,intermittent 20A for 10 secs |
Resistance: | 15 Ω minimum |
Regulation: | +/-0.5% RMS with 4% engine governing |
Voltage build up: | residual voltage at avr terminal >5VAC |
External Voltage Adustament: | +/15% with 5k ohm 1 watt trimmer |
Atechi Power Machinery Co., Ltd., located in Shanghai, China, is a professional supplier of generator spare parts and accessories. We provide full range of spare parts and accessories for generating set which include control module, sensors, meters, fuel pumps, mains floating charger, relay, engine starter, DC alternator, solenoid, lock and hinges, soundproof material, ATS etc. In one word, Atechi aims to provide one-stop service for your generator spare part demand. The quality of our spare parts is very reliable because we have used original and genuine spare parts used by the original engine manufacturer.
