Brief introduction：
5 Amp Automatic Voltage Regulator EA64-5 is designed for AMG synchronous generator. It can also be used for Permanent Magnet Generator. EA64-5 can replace ABB E...MORE >>
Classification：KUTAI AVR
Size：20X15X10 cm
Weight：1KG
Price：
Introduction

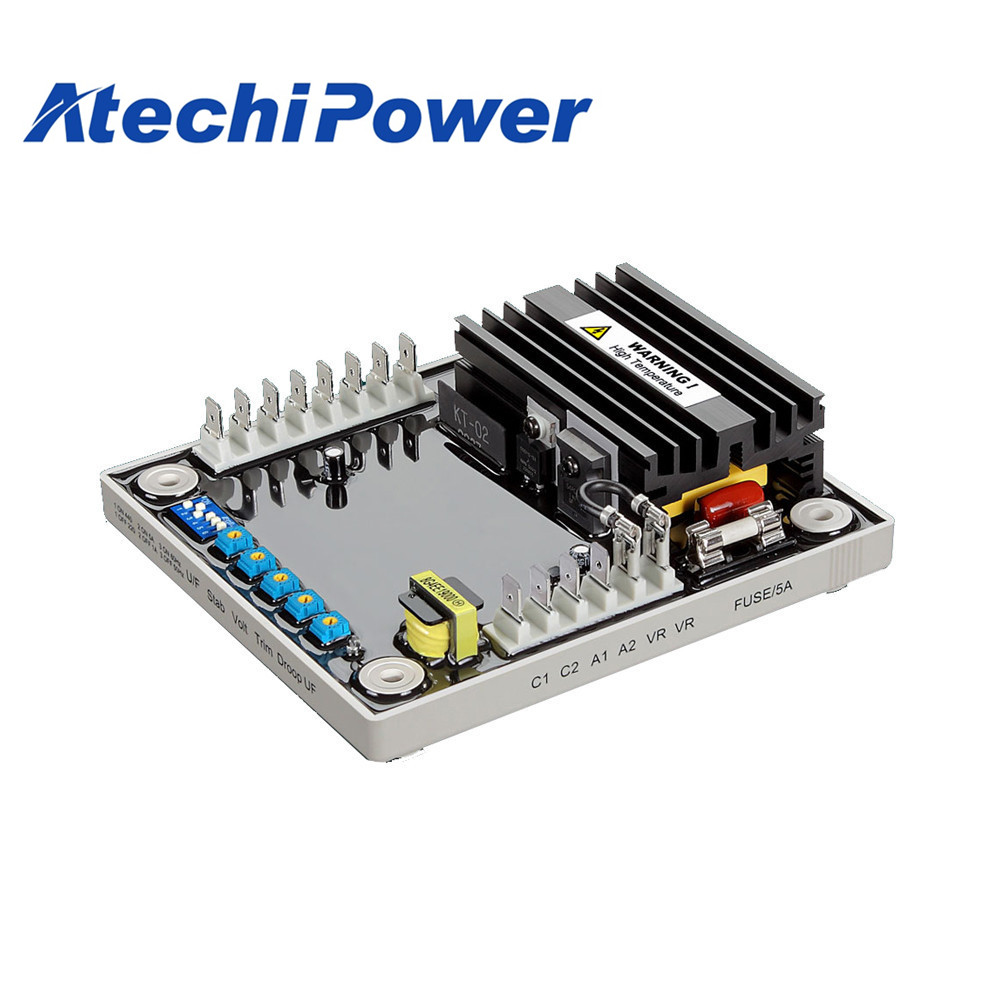

5 Amp Automatic Voltage Regulator EA64-5 is designed for AMG synchronous generator. It can also be used for Permanent Magnet Generator. EA64-5 can replace ABB EA63-5.
NOTE : All manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturer.
Specification
| Sensing Input | Voltage 220/440 VAC 50/60 Hz 1Ø 190~290 VAC @ 220 Vac 330~515 VAC @ 440 VAC |
|---|---|
| Power Input | Input(1Ø) 30~260 VAC 40~500Hz Output 85VDC @ 110 VAC Power input , 170 Vdc @ 220 Vac Power input |
| Output | Current Continuous 5ADC , Maximum 10ADC for 60 sec. |
| Frequency | 50/60 Hz (SW3 Selectable) 40~50Hz @ 50Hz Preset 47Hz 49~60Hz @ 60Hz Preset 57Hz |
| Build Up Voltage | Residual volts at AVR terminal > 5 VAC @ 25Hz |
| Voltage Adjustment | < ±0.5% (Engine speed variation within 4%) |
| Thermal Drift | < 0.05% @ -35~+65°C |
| External Volts Adjustment VR | ±5% with 1K ohm 0.5 watt trimmer ±10% with 2K ohm 0.5 watt trimmer |
| Excitation Resistance | > 9 ohm |
| Current Compensation | 1 or 5A > 0.2 VA (SW2 Selectable) Max. ±7% @ P.F ±0.7 |
| Analogue Voltage Input | Un 0~15% @ 0~10 Vdc |
| Respond Time | < 1 Cycle |
| Unit Power Dissipation | Max. 12 watts |
| Environment | Operation Temperature -40~70°C Storage Temperature -40~85°C Relative Humidity Max. 95% Vibration 3G @ 100~2KHz |
| AVR Control Function | VOLT : Voltage Adjustment STAB : Stability Adjustment U/F : To Set the U/F Knee Point (*U/F : Under Frequency Protection) Droop : Droop Adjustment TRIM : Analogue Input Adjustment |
| Dimensions | 140.0 x 125.0 x 51.0 mm |
| Weight | 578 g ±2% |
