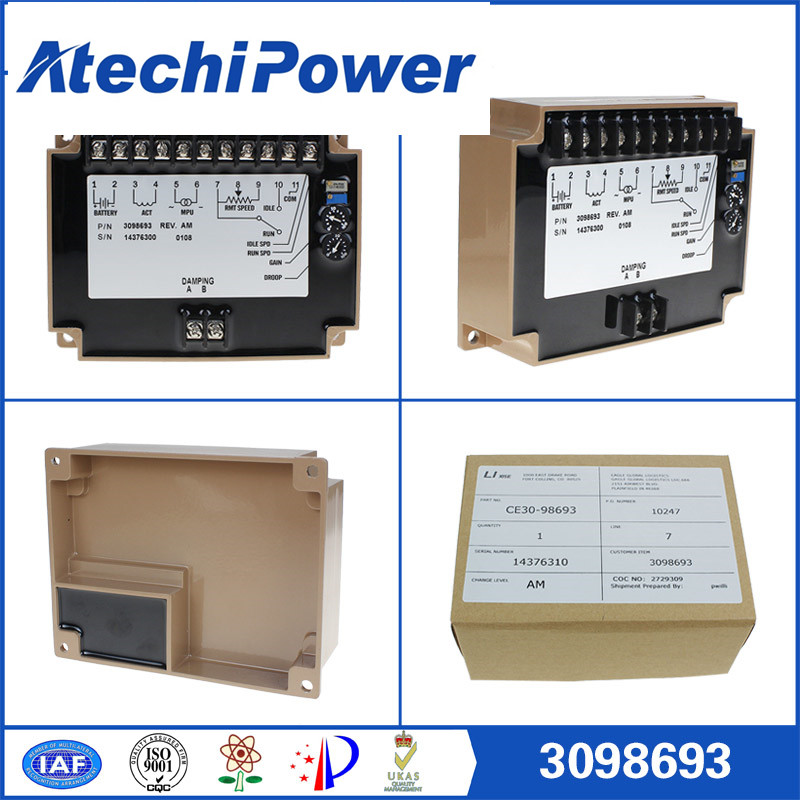

3098693 speed governor

Brief introduction：

3098693 is a engine speed controller designed by all electronic device for s actuator, It can fast and precise response to transient load changes. It has a wide...MORE >>

Classification：Speed Controller

Size：20X15X10 cm

Weight：1KG

Price：

Contact us

Introduction

3098693 is a engine speed controller designed by all electronic device for s actuator, It can fast and precise response to transient load changes. It has a wide speed control range.   For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.



3098693
RPM Stability <±0.25%
Speed Range 1KHz ~ 6.5KHz
Thermal Stability Max ±0.7%
IDLE Regulation 260 ±20Hz
DROOP Regulation Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity 148Hz / 1V., ±10Hz
Impedance 1MΩ
Working Temp Range -40 ~ 85 °C
Working Humidity Range Maximum 95%
Stocking Temp -55 ~ 92 °C
Shocking 20-100HZ 500mm/Sec.
Voltage 12 or 24V
Grounding Pole Negative pole
Power Supply 40mA
Actuator Continuous Current Minimum 1A, Maximum 4.5A
Signal 2 ~ 120V RMS
