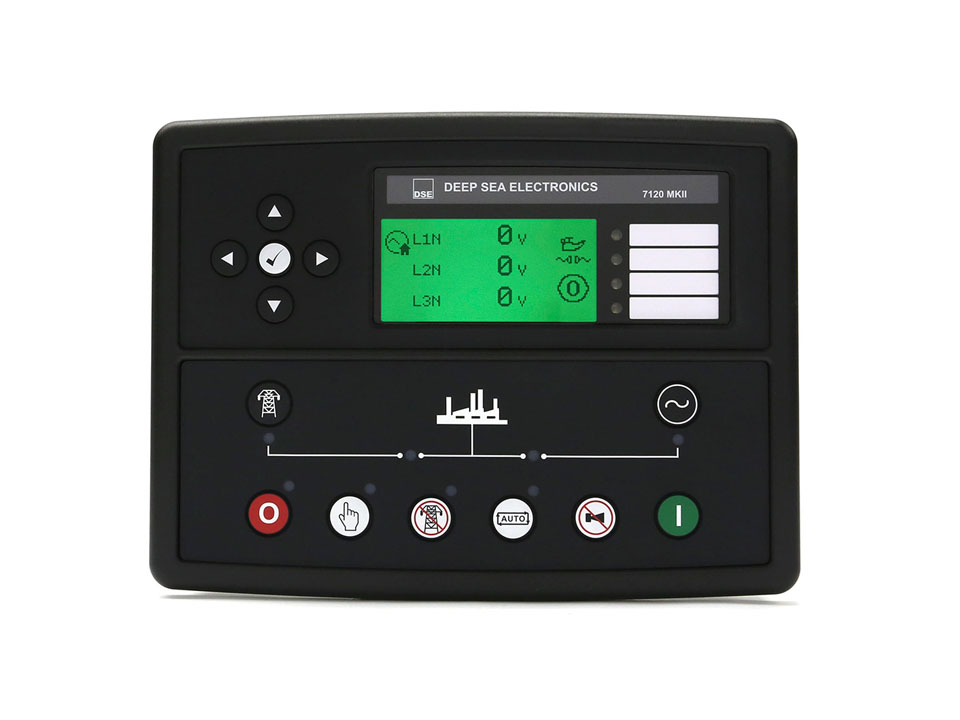

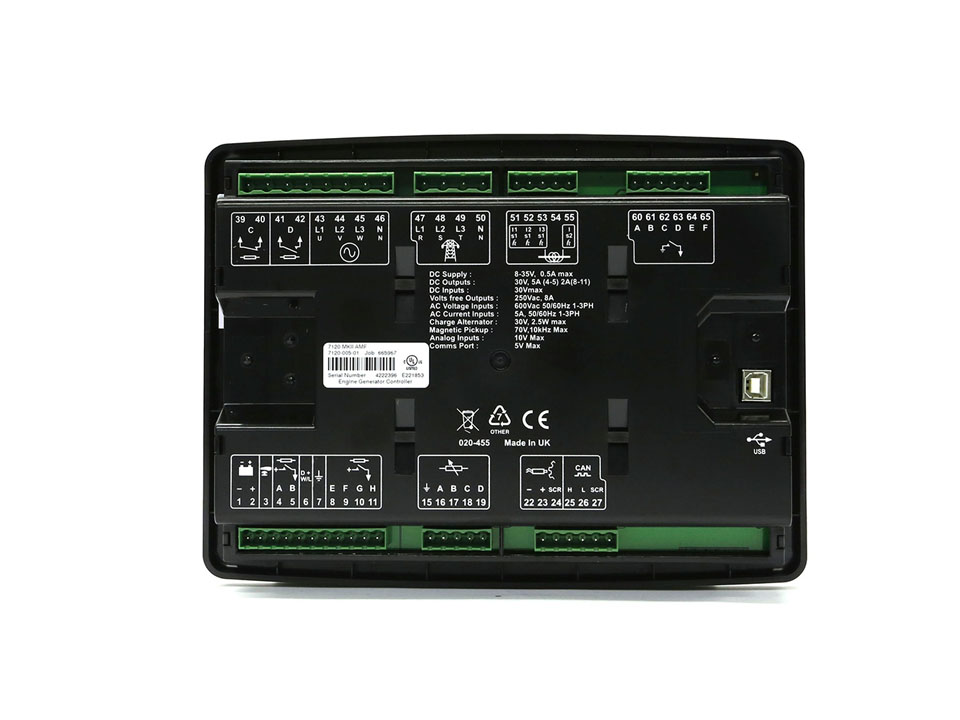

Deep Sea Electronics DSE7120 MKII Auto Mains Utility Failure Control Module

The DSE7120 is an Auto Mains (Utility) Failure Control Module with an icon-based display. The control module has been designed to control single diesel or gas gen-set applications.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.82kg

Key Features and Benefits:

• Large back-lit icon LCD display.
• Displays information to the operator in a clear and concise format.
• Heated display option.
• Ensures the display continues to operate in extreme cold weather conditions.
• 3-phase generator sensing.
• Provides true generator sensing.
• 3-phase generator and mains (utility) sensing.
• Provides true generator and mains (utility) sensing.
• Generator & load power monitoring (kW, kV A, kV Ar, pf).
• Provides clear accurate power measurement information.
• Generator overload protection (kW).
• Provides engine overload protection.
• Generator/load current monitoring & protection.
• Provides convenience of monitoring and protection of the generator or monitoring of the load current.
• Configurable analogue/digital inputs.
• Provides multiple installation options.
• Configurable DC, volt-free and staged loading outputs.
• Provides multiple installation options.
• CAN, MPU & alternator speed sensing (selectable depending on engine type).
• Makes the module ideal for standard and electronic engine applications.
• Tier 4 CAN engine support.
• Ensures the control module can be used with the latest in modern electronic engine technology.
• Configurable event log (50).
• Provides access to historical alarms and operational status.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

Deep Sea Electronics DSE7120 MKII Auto Mains Utility Failure Control Module

The DSE7120 is an Auto Mains (Utility) Failure Control Module with an icon-based display. The control module has been designed to control single diesel or gas gen-set applications.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.82kg

Key Features and Benefits:

• Large back-lit icon LCD display.
• Displays information to the operator in a clear and concise format.
• Heated display option.
• Ensures the display continues to operate in extreme cold weather conditions.
• 3-phase generator sensing.
• Provides true generator sensing.
• 3-phase generator and mains (utility) sensing.
• Provides true generator and mains (utility) sensing.
• Generator & load power monitoring (kW, kV A, kV Ar, pf).
• Provides clear accurate power measurement information.
• Generator overload protection (kW).
• Provides engine overload protection.
• Generator/load current monitoring & protection.
• Provides convenience of monitoring and protection of the generator or monitoring of the load current.
• Configurable analogue/digital inputs.
• Provides multiple installation options.
• Configurable DC, volt-free and staged loading outputs.
• Provides multiple installation options.
• CAN, MPU & alternator speed sensing (selectable depending on engine type).
• Makes the module ideal for standard and electronic engine applications.
• Tier 4 CAN engine support.
• Ensures the control module can be used with the latest in modern electronic engine technology.
• Configurable event log (50).
• Provides access to historical alarms and operational status.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
290 mA at 12 V, 140 mA at 24 V

MAXIMUM STANDBY CURRENT
75 mA at 12 V, 40 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V

MAINS (UTILITY)

VOLTAGE RANGE
15 V – 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage

OUTPUT B (START)
15 A DC at supply voltage

OUTPUTS C & D
8 A 250 V (Volt free)

AUXILIARY OUTPUTS E, F, G & H
2 A DC at supply voltage

GENERATOR

VOLTAGE RANGE
15 V – 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)
