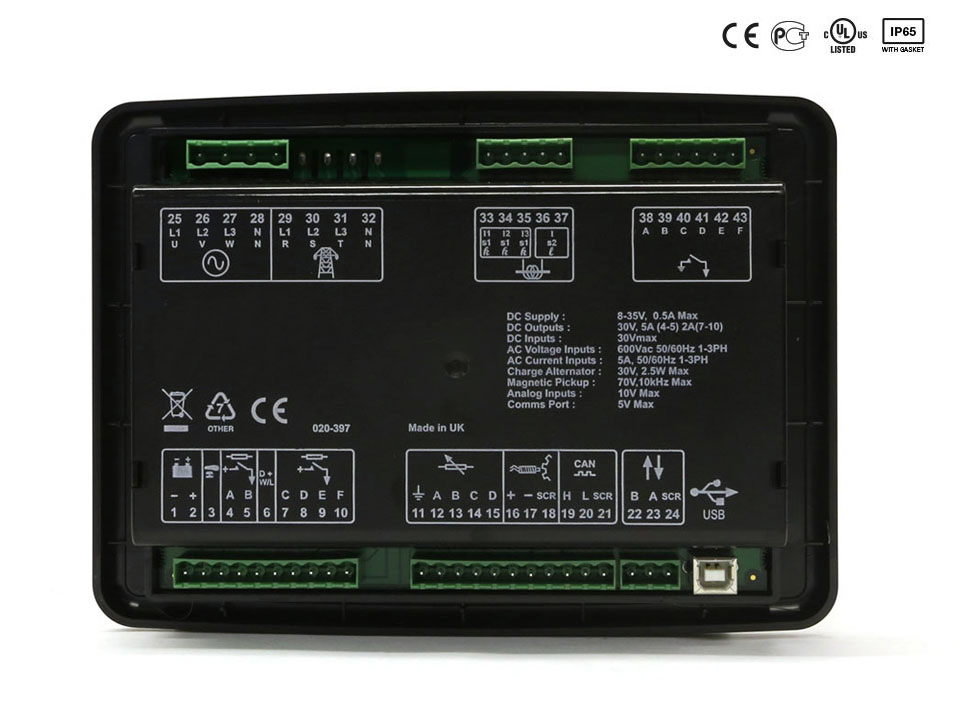

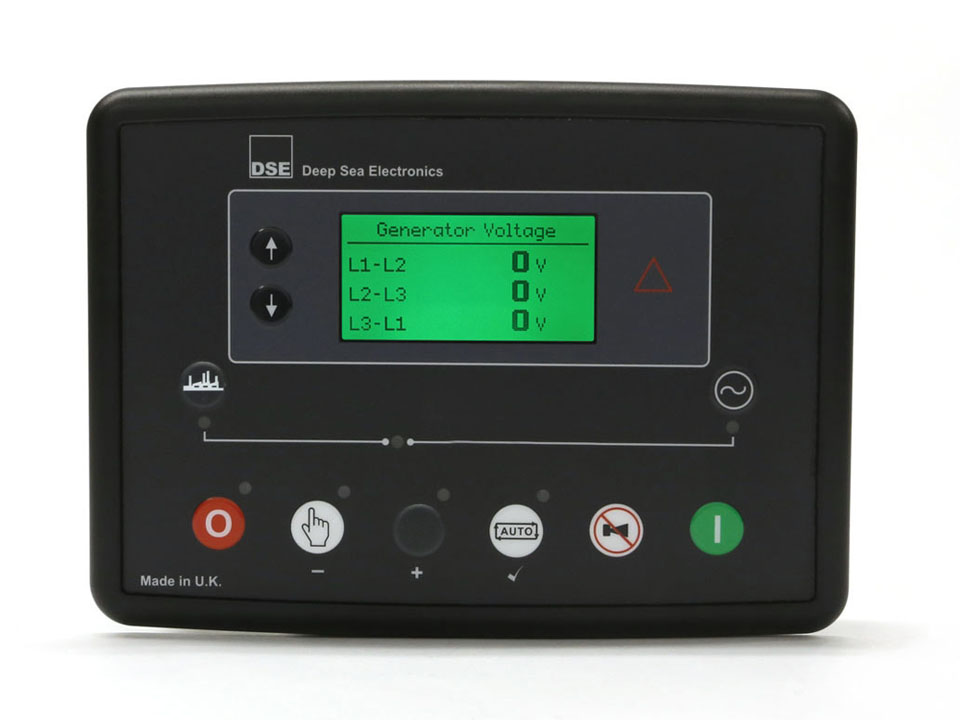

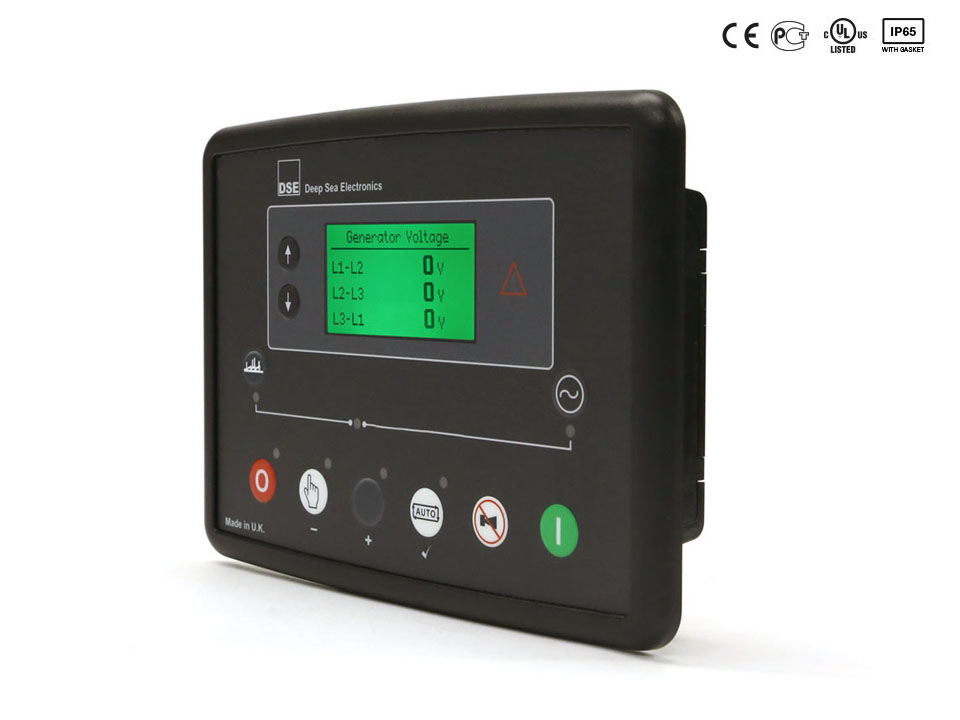

Deep Sea Electronics DSE6110 MKII Auto Start Control Module

The DSE 6110 MKII is an Auto Start Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.

OVERALL SIZE – 216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)

PANEL CUTOUT SIZE – 184 mm x 137 mm (7.2″ x 5.3″)

MAXIMUM PANEL THICKNESS – 8.0 mm (0.3”)

WEIGHT – 0.5kg

 Key Features and Benefits:

• Support for 0-10 V & 4-20mA oil pressure senders
• Heated display option
• 3-phase generator sensing
• Generator/load current monitoring & protection
• Configurable analogue/digital inputs (9)
• Configurable DC, volt-free and staged loading outputs (6)
• CAN, MPU & alternator speed sensing (selectable depending on engine type)
• Tier 4 CAN engine support
• Configurable event log (100)
• DSE Configuration Suite PC Software
• Fuel and start outputs (configurable on CAN)
• Provides flexibility for use with multiple sensors and engine types
• Ensures the display continues to operate in extreme cold weather conditions
• Provides true generator sensing
• Provides convenience of monitoring and protection of the generator or monitoring of the load current
• Provides multiple installation options
• Provides full generator load control
• Ensures the module can be used with a wide number of engine types
• Ensures the control module can be used with the latest in modern electronic engine technology
• Provides access to historical alarms and operational status
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring

• Deep Sea Electronics DSE6110 MKII Auto Start Control Module

  The DSE 6110 MKII is an Auto Start Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.

  OVERALL SIZE – 216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)

  PANEL CUTOUT SIZE – 184 mm x 137 mm (7.2″ x 5.3″)

  MAXIMUM PANEL THICKNESS – 8.0 mm (0.3”)

  WEIGHT – 0.5kg

   Key Features and Benefits:

• Support for 0-10 V & 4-20mA oil pressure senders
• Heated display option
• 3-phase generator sensing
• Generator/load current monitoring & protection
• Configurable analogue/digital inputs (9)
• Configurable DC, volt-free and staged loading outputs (6)
• CAN, MPU & alternator speed sensing (selectable depending on engine type)
• Tier 4 CAN engine support
• Configurable event log (100)
• DSE Configuration Suite PC Software
• Fuel and start outputs (configurable on CAN)
• Provides flexibility for use with multiple sensors and engine types
• Ensures the display continues to operate in extreme cold weather conditions
• Provides true generator sensing
• Provides convenience of monitoring and protection of the generator or monitoring of the load current
• Provides multiple installation options
• Provides full generator load control
• Ensures the module can be used with a wide number of engine types
• Ensures the control module can be used with the latest in modern electronic engine technology
• Provides access to historical alarms and operational status
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring
• Provides multiple installation options

•
  Additional Features:

• Configurable staged loading outputs
• Breaker control buttons on front fascia
• Engine hours counter
• Engine pre-heat
• Remote start input
• Battery voltage monitoring
• Up/down front panel scroll buttons
• DSENet® expansion device compatibility (limited)
• Power monitoring
• Test button

•

  DC Supply:

• CONTINUOUS VOLTAGE RATING – 8V to 35V Continuous
• CRANKING DROPOUTS – Able to survive 0V for 50 mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
• MAXIMUM OPERATING CURRENT – 100 mA at 12V, 105 mA at 24V
• MAXIMUM STANDBY CURRENT – 60 mA at 12V, 55 mA at 24V
• MAXIMUM SLEEP CURRENT – 40 mA at 12V, 35 mA at 24 V

•
  Generator & Mains (Utility):

• VOLTAGE RANGE – 15V to 415V AC (Ph to N)
• VOLTAGE RANGE – 26V to 719V AC (Ph to Ph)
• FREQUENCY RANGE – 3.5 Hz to 75 Hz

•
  Outputs:

• OUTPUT A (FUEL) – 10A short term, 5 A continuous, at supply voltage
• OUTPUT B (START) – 10A short term, 5 A continuous, at supply voltage
• AUXILIARY OUTPUTS C, D, E, F – 2 A DC at supply voltage

•
  Magnetic Pick Up:

• VOLTAGE RANGE – +/- 0.5V to 70V
• FREQUENCY RANGE – 10,000 Hz (max)

•
  Inputs:

• DIGITAL INPUTS A to F – Negative switching
• ANALOGUE INPUT A – Configurable as: Negative switching digital input
  0 V to 10 V, 4 mA to 20 mA, 0 Ω to 240 Ω
• ANALOGUE INPUTS B to D – Configurable as: Negative switching digital input
  0 Ω to 480 Ω
