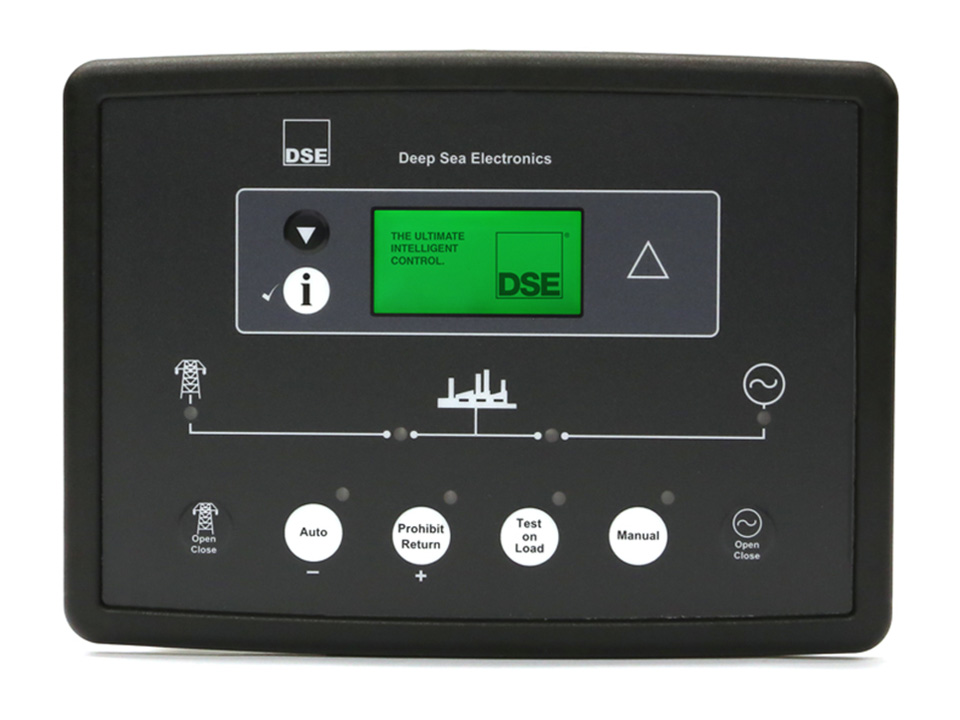

Deep Sea Controller DSE333 Auto Transfer Switch Control Module

Main Features

KEY FEATURES

• Volt-free relays
• Supports many topologies
• Automatic switch-over between supplies
• Check sync feature
• Real-time clock
• 10 configurable inputs
• 5 configurable outputs
• Event log (10)
• Configurable timers
• Automatic shutdown or warning when fault conditions are detected

• PC configuration
• Front panel configuration
• LED indicators
• Back-lit 4-line text LCD display
• External mains (utility) or genset failure inputs
• Auto start inhibit
• Load inhibit
• Manual restore to mains (utility)
• Optional current monitoring

KEY BENEFITS

• Fully automatic monitoring and switch-over control minimises the effects of power disruptions
• Real-time clock provides accurate event information for easy maintenance diagnostics
• User-friendly set-up and button layout
• Will work with external synchroniser for seamless return to mains (utility)
