Brief introduction:
The DSE2510 display module is designed to work with the DSE7310 Auto Start Control Module. Up to three display modules can be connected to one host control mod...MORE >>
Classification:deepsea controller
Size:20X15X10 cm
Weight:1KG
Price:
Introduction
The DSE2510 display module is designed to work with the DSE7310 Auto Start Control Module. Up to three display modules can be connected to one host control module, and can be positioned up to a maximum distance of 1km away.
The remote display offers exactly the same instrumentation, control and monitoring capabilities as the host control module, including starting and stopping of the engine.All remote displays connected to the same system, will show the same information at any one time, while the host controller is able to display different information. The module is simple to operate and features the same user-friendly menu layout as the host module.
All communications and configuration is done via the host module only. The remote devices simply mirror the configuration of the host module, making the system quick and easy to install.
KEY FEATURE
Expands the application possibilities of the DSE7300 Series by offering remote control and monitoring from up to 3 seperate locations.
OPERATION

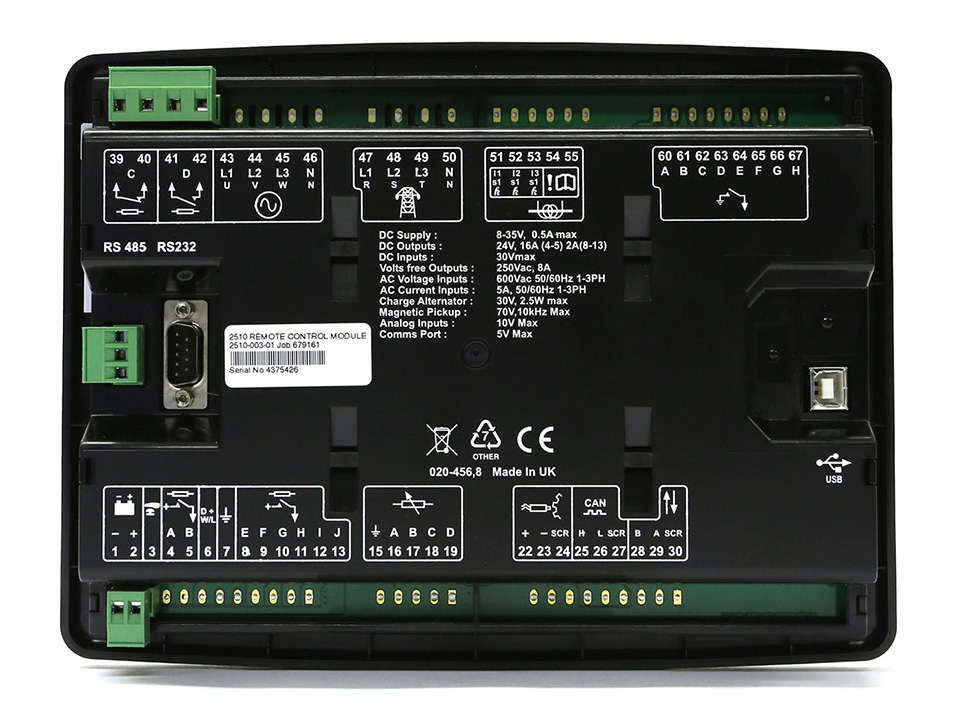

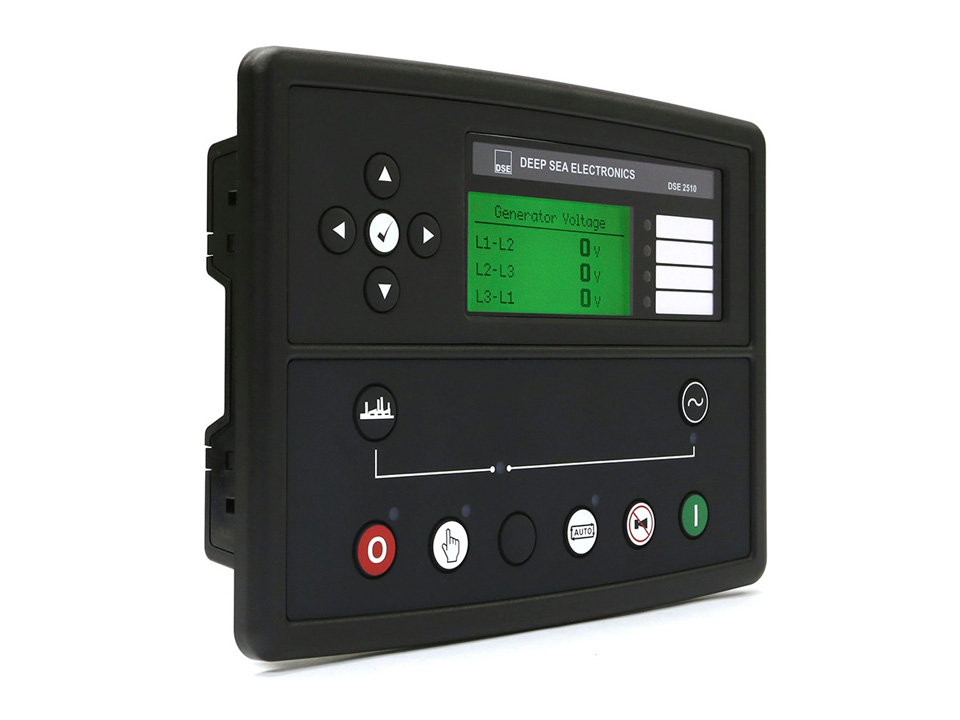

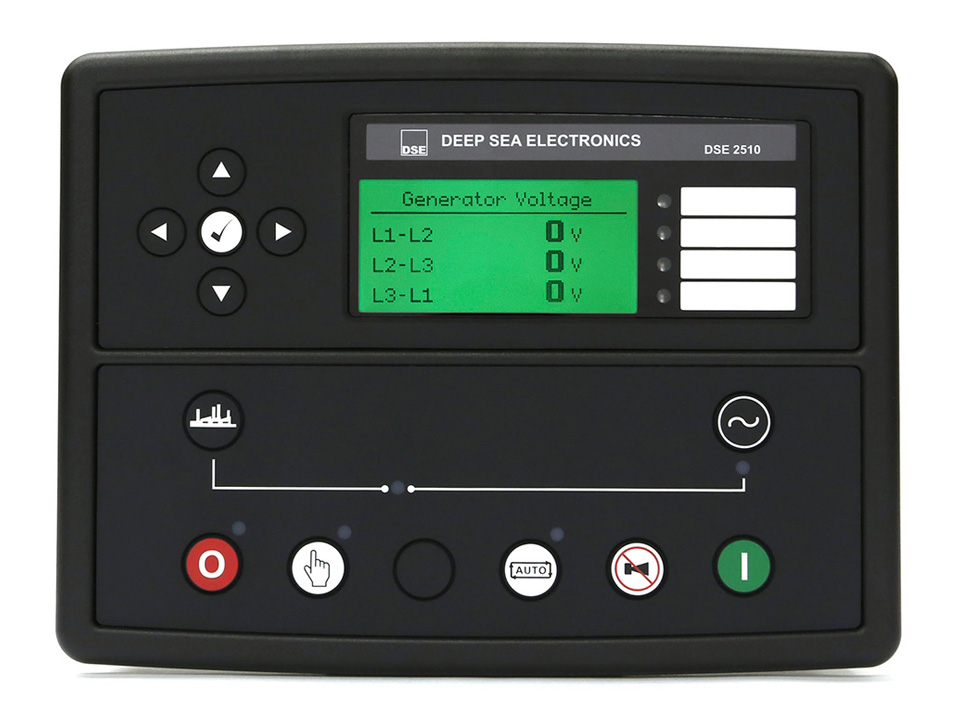

The remote displays are operated via the START, STOP, AUTO and MANUAL soft touch membrane buttons on the front panel. Both versions include load switch buttons. The main menu system is accessed using the five navigation buttons to the left of the LCD display.
For a more detailed list of module features, please refer to the DSE7310 Data Sheet.
DC SUPPLY
CONTINUOUS VOLTAGE RATING 8 V to 35 V Continuous
CRANKING DROPOUTS Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT 340mA at 12V 160mA at 24V
MAXIMUM STANDBY CURRENT 160mA at 12V 80mA at 24V
DIMENSIONS
OVERALL 240mm x 181.1mm x 41.7mm 9.4” x 7.1” x 1.6”
PANEL CUT-OUT 220mm x 160mm 8.7” x 6.3”
MAXIMUM PANEL THICKNESS 8 mm 0.3”
ELECTRO-MAGNETIC COMPATIBILITY BS EN 61000-6-2 EMC Generic Immunity Standard for the Industrial Environment BS EN 61000-6-4 EMC Generic Emission Standard for the Industrial Environment
ELECTRICAL SAFETY BS EN 60950 Safety of Information Technology Equipment, including Electrical Business Equipment
TEMPERATURE BS EN 60068-2-1 Ab/Ae Cold Test -30 °C BS EN 60068-2-2 Bb/Be Dry Heat +70 °C
VIBRATION BS EN 60068-2-6 Ten sweeps in each of three major axes 5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn
HUMIDITY BS EN 60068-2-30 Db Damp Heat Cyclic 20/55 oC @ 95% RH 48 Hours BS EN 60068-2-78 Cab Damp Heat Static 40 oC @ 93% RH 48 Hours
SHOCK BS EN 60068-2-27 Three shocks in each of three major axes 15 gn in 11 mS
DEGREES OF PROTECTION PROVIDED BY ENCLOSURES BS EN 60529 IP65 – Front of module when installed into the control panel with the supplied sealing gasket.
