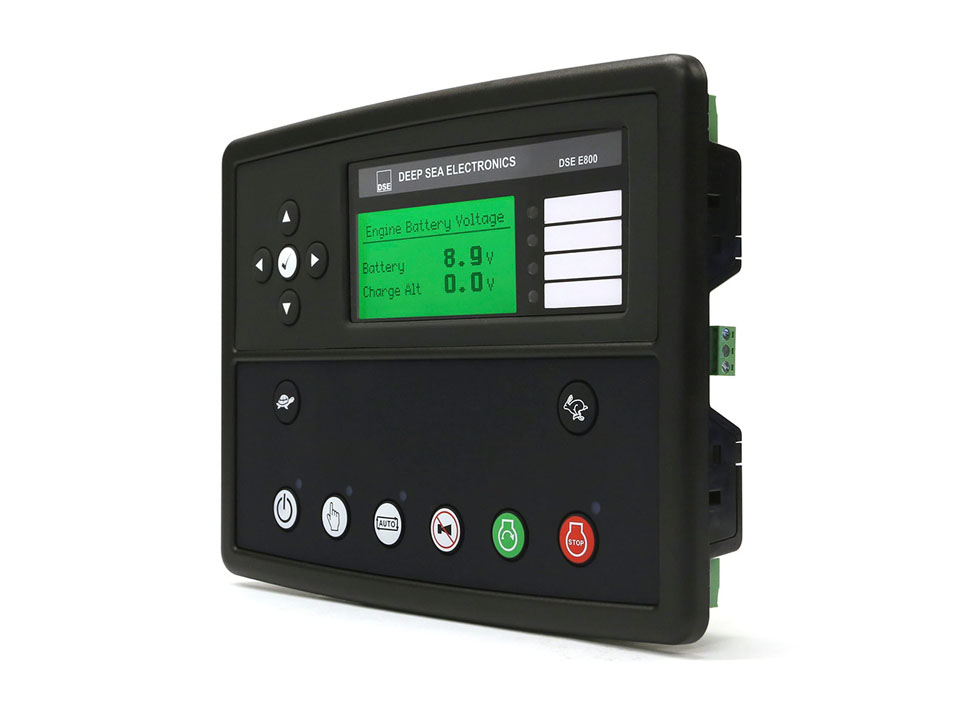

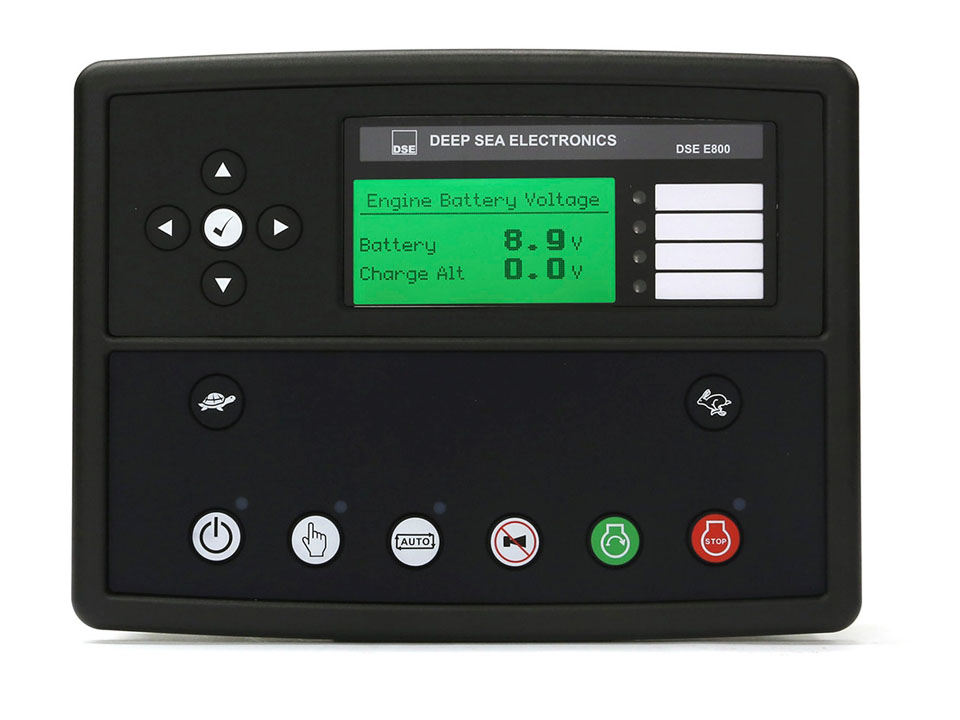

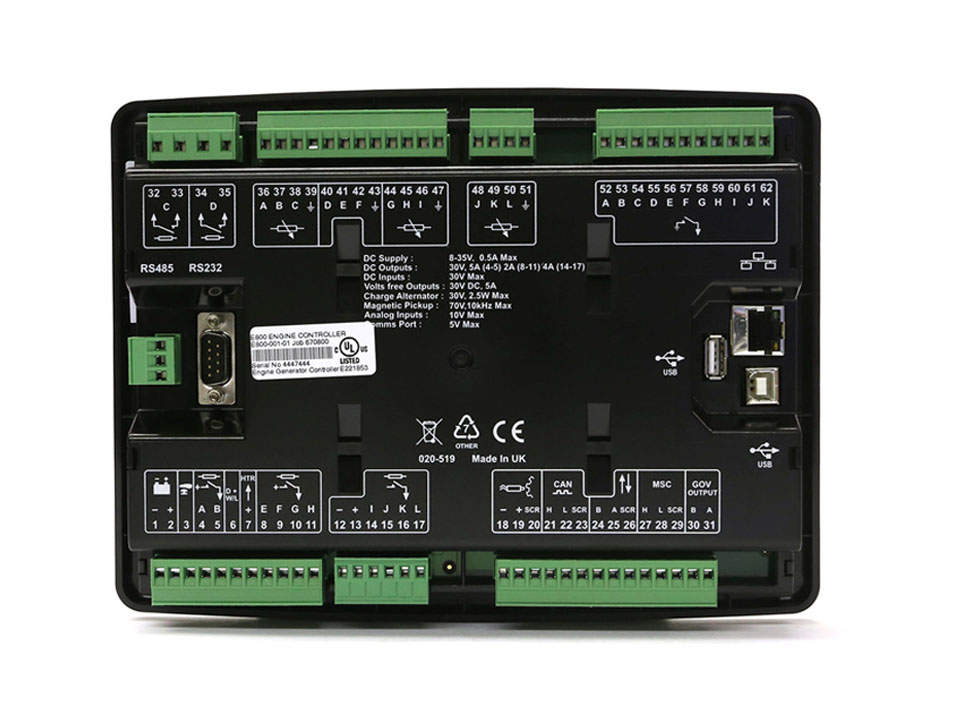

Deep Sea Electronics DSEE800 Engine Control Module

The DSEE800 is an intelligently design engine control module that provides flexible control, comprehensive monitoring and protection features.

The control module is suitable for use with standard and electronic engines and can handle a wide range of applications including engine driven pumps, compressors, and hydraulic power packs and off highway machinery.

OVERALL SIZE
240 mm x 172 mm x 57 mm (9.4” x 6.8” x 2.2”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7 ” x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.88kg

Key Features and Benefits:

• Configurable digital inputs (11).
• Provides multiple installation options.
• Configurable ratio metric inputs (12).
• Provides multiple installation options.
• Configurable DC outputs (4).
• Provides protocols for monitoring of the battery charging and charger status from a remote location.
• Configurable PWM (pulse width modulation) outputs (4).
• Provides output control flexibility with the option to enter user-defined curves.
• Direct governor & AVR control.
• Eliminates the requirement for external control equipment.
• Automatic and manual speed control.
• Provides the user the option to manually raise the engine speed.
• Clutch control.
• Provides a gradual increase and decrease in speed as determined by the user.
• CAN, magnetic pick-up or tachometer speed sensing.
• Provides the option for engine speed monitoring, either for electronic or traditional non-electronic engines.
• Remote communications (RS232, RS485, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Data logging & trending.
• Provides current and historical status information.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

Deep Sea Electronics DSEE800 Engine Control Module

The DSEE800 is an intelligently design engine control module that provides flexible control, comprehensive monitoring and protection features.

The control module is suitable for use with standard and electronic engines and can handle a wide range of applications including engine driven pumps, compressors, and hydraulic power packs and off highway machinery.

OVERALL SIZE
240 mm x 172 mm x 57 mm (9.4” x 6.8” x 2.2”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7 ” x 6.3″)

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.88kg

Key Features and Benefits:

• Configurable digital inputs (11).
• Provides multiple installation options.
• Configurable ratio metric inputs (12).
• Provides multiple installation options.
• Configurable DC outputs (4).
• Provides protocols for monitoring of the battery charging and charger status from a remote location.
• Configurable PWM (pulse width modulation) outputs (4).
• Provides output control flexibility with the option to enter user-defined curves.
• Direct governor & AVR control.
• Eliminates the requirement for external control equipment.
• Automatic and manual speed control.
• Provides the user the option to manually raise the engine speed.
• Clutch control.
• Provides a gradual increase and decrease in speed as determined by the user.
• CAN, magnetic pick-up or tachometer speed sensing.
• Provides the option for engine speed monitoring, either for electronic or traditional non-electronic engines.
• Remote communications (RS232, RS485, Ethernet).
• Provides secure and simple off site monitoring. All ports are continuously active.
• Data logging & trending.
• Provides current and historical status information.
• Configurable event log (250).
• Provides access to historical alarms and operational status.
• Integral PLC editor.
• Ensures additional applications are easily integrated into the system.
• DSE Configuration Suite PC Software.
• Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

DC SUPPLY

CONTINUOUS VOTLAGE RATING
8 V to 35 V continuous

CRANKING DROPUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.

MAXIMUM OPERATING CURRENT
510 mA at 12 V, 238 mA at 24 V

MAXIMUM STANDBY CURRENT
226 mA at 12 V, 107 mA at 24 V

MAXIMUM OFF MODE CURRENT
180 mA at 12 V, 86 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V

INPUTS

DIGITAL INPUTS A to K
Configurable as:
Positive switching
Negative switching

RATIOMETRIC INPUTS B to L
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 1920 Ω

OUTPUTS

DC OUTPUT A (FUEL) & B (START)
10 A for 10 seconds,
5 A continuous at supply voltage

VOLT-FREE OUTPUTS C & D
5 A DC at 35 V DC
8 A AC at 250 V AC

DC OUTPUTS E, F, G & H
2 A DC at supply voltage

PWM OUTPUTS I, J, K & L
4 A at supply voltage
20 Hz to 250 Hz

PULSE PICK-UP

VOLTAGE RANGE
±0.5 V to 60 V RMS
Fully isolated

FREQUENCY RANGE
10,000 Hz (max)

BUILT-IN GOVERNOR CONTROL

MINIMUM LOAD IMPEDANCE
1000 Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC

OFFSET VOLTAGE
±10 V DC
