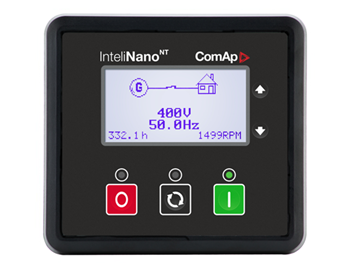

InteliNano NT Plus

Brief introduction：

Stand-by and prime power application in one model 1/3 Phase generator voltage measurement (3/3 phase when used as MRS controller) 1 Phase generator current mea...MORE >>

Classification：Comap controller

Size：20X20X20 cm

Weight：1KG

Price：

Contact us

Introduction

  • Order code: IN-NT PLUS
  • Stand-by and prime power application in one model
  • 1/3 Phase generator voltage measurement (3/3 phase when used as MRS controller)
  • 1 Phase generator current measurement
  • 3 Phase mains voltage measurement
  • Connection type and voltage auto detect
  • Various generator and engine protections
  • Biggest LCD screen in its class
  • Icon menu, no text
  • Automatic or manual MCB and GCB control
  • "Zero" power consumption mode
  • Battery voltage, Service time and Running hours indication
  • All setpoints and I/O's configurable via front panel
  • Ability to catch up on running engine (for manual engine start)
  • Light Tower mode supported
  • Event log (10 events)
  • Up to 3 analog inputs (shared with binary inputs)
  • Up to 6 binary inputs (1 binary input is shared with binary output)
  • 2 high side - high current outputs
  • 4 high side binary outputs
  • D+ pre-excitation terminal
  • ECU support (CAN J1939)
  • USB one-cord power supply and programing
  • License free PC configuration software (NanoEdit)
  • Standard cut-out dimension 96x96
  • Outside dimension 110x100
  • IP 65 (when optional gasket is used)
