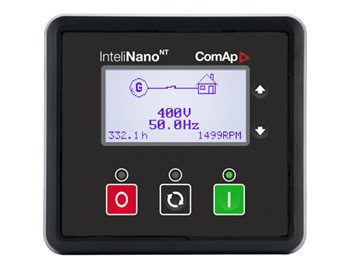

InteliNano MRS3

Brief introduction:

Controller for single gen-set operating in prime power applications 3 Phase generator voltage & current measurement Power measurement and energy counters Conne...MORE >>

Classification:Comap controller

Size:20X20X20 cm

Weight:1KG

Price:

Introduction

  • Order code: IN-NT MRS 3
  • Controller for single gen-set operating in prime power applications
  • 3 Phase generator voltage & current measurement
  • Power measurement and energy counters
  • Connection type and voltage auto detect
  • Generator and engine protections
  • Symbolic interface
  • Automatic or manual GCB control
  • "Zero" power consumption mode
  • Battery voltage, Service time and Running hours indication
  • Automatic recharge of batteries
  • Configurable via front panel
  • Light Tower mode supported
  • Event log (15 events)
  • Up to 6 inputs /  Up to 6 outputs
  • 2 high current outputs, for Starter and Fuel Solenoid, internally connected to the Emergency Stop input
  • D+ pre-excitation terminal
  • Magnetic pickup
  • ECU support (CAN J1939)
  • USB one-cord power supply and programing
  • License free PC configuration software (NanoEdit)
  • Standard cut-out dimension 96x96
  • Outside dimension 110x100
  • IP 65 (if optional gasket is used)
