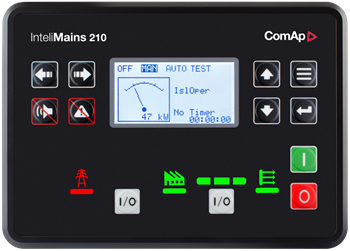

InteliMains 210

New Generation of Mains Supervision Controller

Order code: IM3210XXBAA

InteliMains power in a "compact" package

• Synchronising - for multiple up to 31 gen-sets operating in parallel to mains
• PLC - Utilise our unique, and easy to use PLC drag-and-drop blocks for configuration.
• New design - Flexibility to change the application e.g. MCB & MGCB.
• Plug-in modules - Customize your controller with our plug-in extension and communication modules.
• 4G/LTE - Connect to your gen-set via 4G/LTE for alerts or use ComAp's WebSupervisor.
• GPS - Always know the location of your gen-set using geofencing for theft or movement alerts.
• InteliConfig - Our new configuration and monitoring PC tool will offer you multi gen-set control and monitoring as well as easy set-up.

​InteliMains 210 as a complementary product to InteliGen 200 is further offering:

• Two types of synchronisations: Phase Match or Slip Synchro
• Total remote monitoring and control
  • InteliConfig for configuration and monitoring
  • WinScope for precise tuning of PID regulators exactly according to gen-set type and application needs
  • WebSupervisor for cloud based monitoring and control of your whole gen-set fleet
• Wide range of communication and connection capabilities including:
  • USB, CAN and RS485 on board
  • USB master for configuration or firmware upload or download
  • RS232 and additional RS485 via plug-in module
  • internet access using Ethernet, GPRS/3G/4G via plug-in modules
  • configurable Modbus RTU or TCP and support of SNMP protocols v1 or v2c
• Internal PLC support with PLC editor and monitor included in InteliConfig
• Active SMS and emails in different languages
• Geofencing and tracking via WebSupervisor
• Option for additional inputs/outputs
• Flexible event based history with up to 350 events
• Multipurpose flexible timers
• UL listed certification

Note: some features require the use of additional expansion or communication cards.
