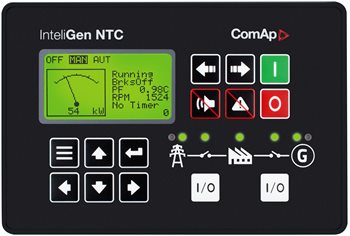

InteliGen NTC

Marine complex Parallel Gen-set Controller

Order code: IG-NTC GC
The InteliGen NTC, an enhanced version of ComAp’s bestseller – InteliGen NT, is a high-end controller suitable for any complex single or multiple gen-sets paralleling application operating in standby or island mode. It is a perfect unit for mission-critical installations such as datacenters, power stations or rental applications. InteliGen NTC features ComAp’s powerful in-built PLC delivering high-level of flexibility, advanced history log and fully configurable protections.
Marine certified controller. Overview of ComAp marine approved products available here.

• Gen-set controller for single or multiple generating sets operating in standby or parallel modes
• Support of engines with ECU (Electronic Control Unit)
• Many communication options – easy remote supervising and servicing
• To be used inde npendently or in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8,  InteliVision 12Touch, or InteliVision 18Touch
• Gen-set performance log for easy problem tracing
• Automatic synchronizing and power control (via speed governor or ECU)
• AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
• Generator measurement, Mains measurement
• Inputs and outputs configurable for various customer needs
• Controller redundancy
• Event-based history (up to 500 records) with customer-selectable list of stored values; RTC; statistic values
• Integrated PLC programmable functions
• Integrated fixed and configurable protections
• Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
• Secondary isolated RS232 / RS485 interface
• Support of external colour displays
• USB 2.0 slave interface
• With Solution of Application support - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)

GeCon functionality is included in IGS NT Standard Firmware version 3.9 and newer!
Order instruction: To run the GeCon software you need to order InteliGen NT, and then install the correct GeCon software:

• GeCon LandBased (included in standard firmware)
• GeCon Marine (special dedicated firmware)

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.
