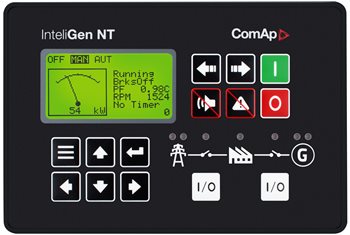

InteliGen NT

Complex Parallel Gen-Set Controller

Order code: IG-NT GC

Marine certified controller. Overview of ComAp marine approved products available here.

• Gen-set controller for single or multiple generating sets operating in standby or parallel modes
• Support of engines with ECU (Electronic Control Unit)
• Many communication options – easy remote supervising and servicing
• To be used inde npendently or in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8,  InteliVision 12Touch, or InteliVision 18Touch
• Gen-set performance log for easy problem tracing
• Automatic synchronizing and power control (via speed governor or ECU)
• AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
• Generator measurement, Mains measurement
• Inputs and outputs configurable for various customer needs
• Controller redundancy
• Event-based history (up to 500 records) with customer-selectable list of stored values; RTC; statistic values
• Integrated PLC programmable functions
• Integrated fixed and configurable protection
• With Solution of Application support - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)

GeCon functionality is included in IGS NT Standard Firmware version 3.9 and newer!


Order instruction: To run the GeCon software you need to order InteliGen NT, and then install the correct GeCon software:

• GeCon LandBased (included in standard firmware)
• GeCon Marine (special dedicated firmware)

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.
