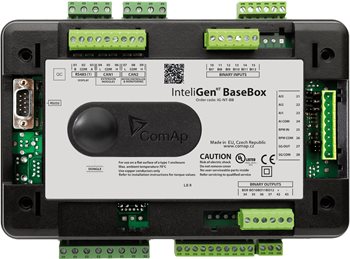

InteliGen NT BaseBox

Complex Parallel Gen-set Controller with Detachable Colour Display

Order code: IG-NT-BB

Marine certified controller. Overview of ComAp marine approved products available here.

• Gen-set controller for both single and multiple gensets operating in standby or paralleling modes.  Overview of ComAp marine approved products available here
• To be used indenpendently or in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8,  InteliVision 12Touch, or InteliVision 18Touch
• Support of engines with ECU (Electronic Control Unit)
• Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
• Many communication options – easy remote supervising and servicing
• Gen-set performance log for easy problem tracing
• Automatic synchronizing and power control (via speed governor or ECU)
• AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
• Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
• Mains measurement: U, I, Hz, kW, kVAr, PF
• True RMS (TRMS) is used with Voltage, Current and Power measurement
• Inputs and outputs configurable for various customer needs
• Bipolar binary outputs - possibility to use BO as High or Low side switch
• RS232 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface
• Controller redundancy
• Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
• Integrated PLC programmable functions
• Integrated fixed and configurable protections
• DIN-Rail mount
• Customized firmware solution
• With Solution of Application support - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)

GeCon functionality is included in IGS NT Standard Firmware version 3.9 and newer!

Order instruction: To run the GeCon software you need to order InteliGen NT BaseBox, and then install the correct GeCon software:

• GeCon LandBased (included in standard firmware)
• GeCon Marine (special dedicated firmware)

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement
