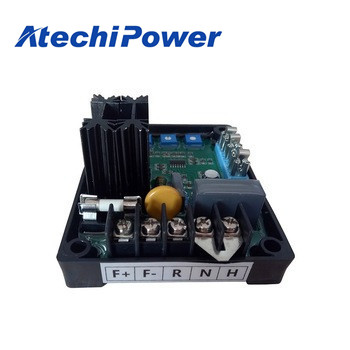

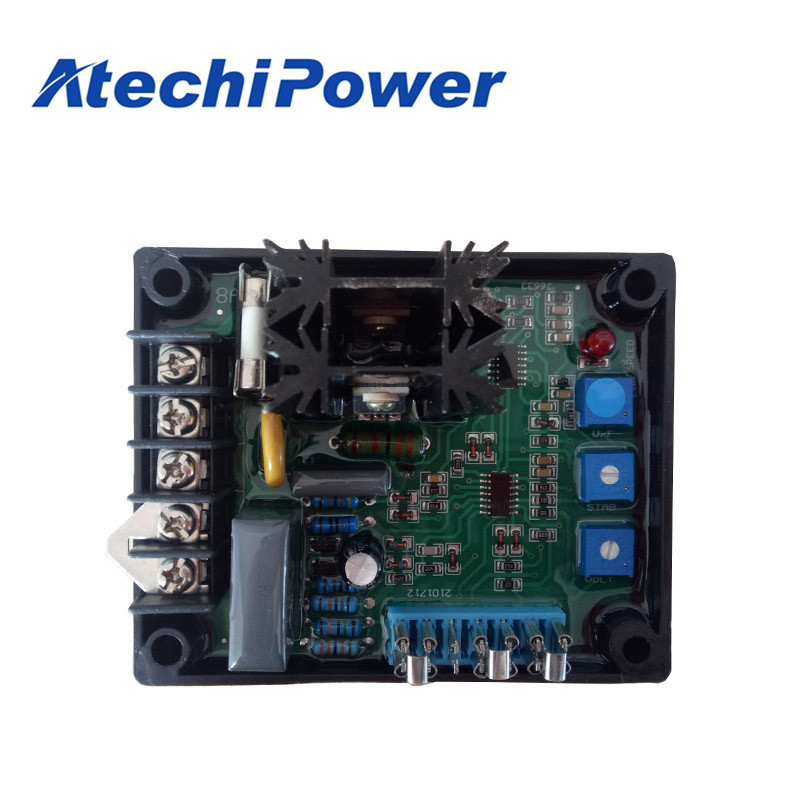

GAVR-8A AVR 8A

Brief introduction：

AVR GAVR-8A
Common brushless alternator avr GAVR-8A AVR 8A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the exci...MORE >>

Classification：GAVR

Size：20X15X10 cm

Weight：1KG

Price：

Introduction

AVR GAVR-8A
Common brushless alternator avr GAVR-8A AVR 8A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.

Product Name	Common brushless alternator avr GAVR-8A AVR 8A
Sensing/Power input	Voltage	110/220/400vac
	Frequency	95-270VAC,1 phase 2 wires
Output	Current	Continuous 8A Intermittent
	Voltage	Max 95 VDC at 240VAC input

FEATURES

Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
