Brief introduction:
AVR 15A diesel engine electronic regulator GAVR-15B is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation...MORE >>
Classification:GAVR
Size:20X15X10 cm
Weight:1KG
Price:
Introduction

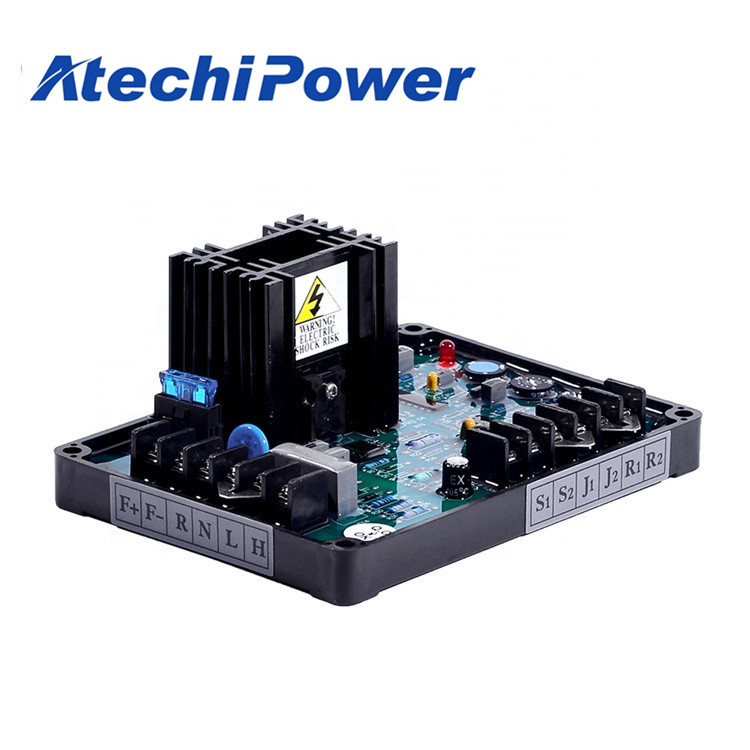

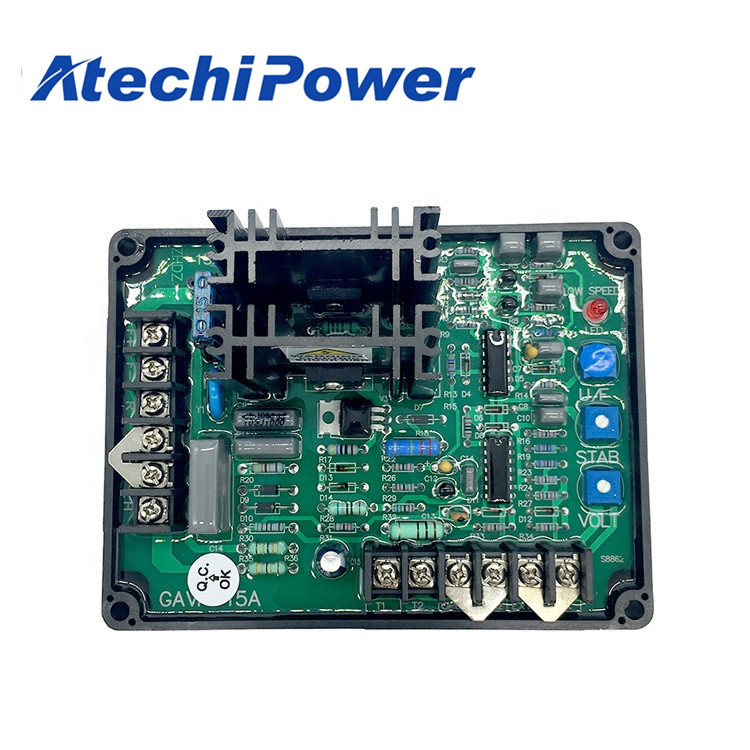

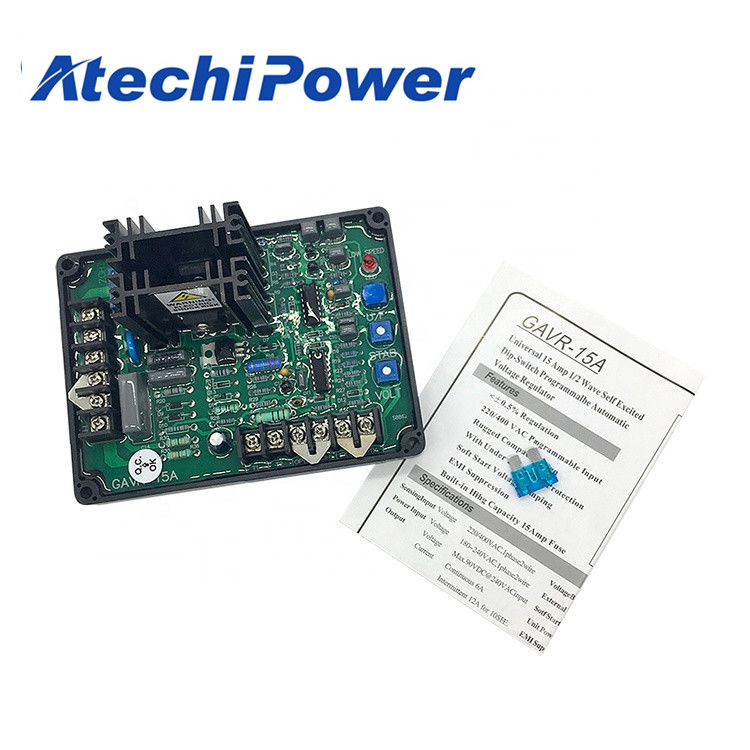

AVR 15A diesel engine electronic regulator GAVR-15B is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Model | GAVR-15A |
Sensing Input Voltage | 220/400VAC,1phase 2wire |
Power Input Voltage | 180~240VAC, 1phase 2wire |
Output Voltage | Max.90VDC@240VAC input |
Current Continuous 6A | |
Intermittent 12A for 10SEE | |
Resistance Min.10Ω Max 100Ω | |
Voltage Build-up | esidualvolts at AVR teminal>5VAC |
External Volts Adjustment | +/-7%with 1KΩ 1watt trimmer |
Unit Power Dissipation | Max.8Watt |
Under Frequency Protection 60Hz system presets knee point at 57Hz | |
Factory Settings | 50Hz system presets knee point at 47Hz |
