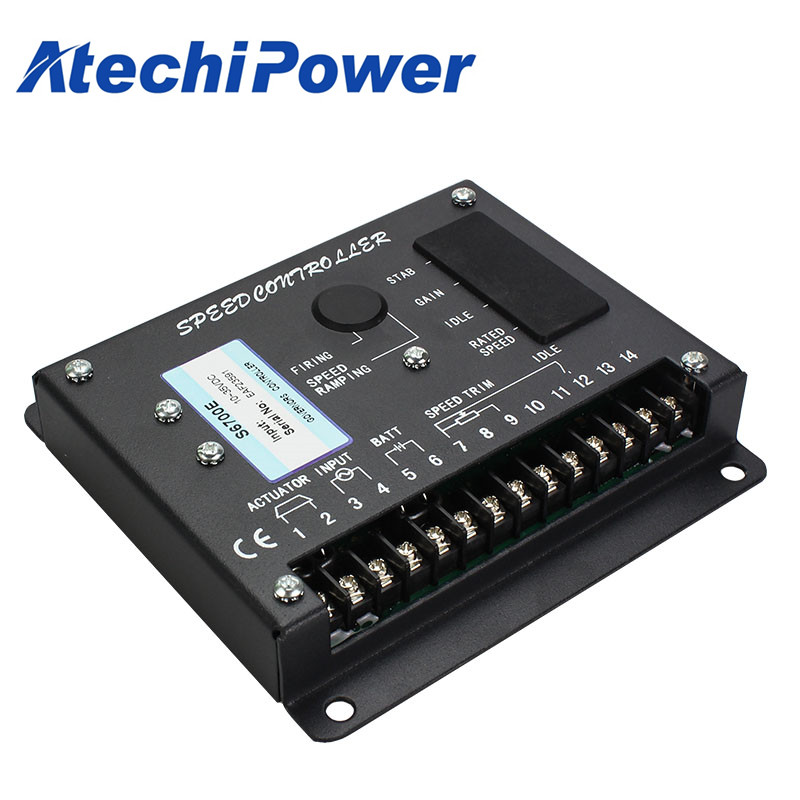

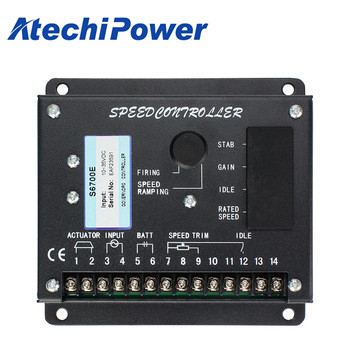

The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.

• Power reverse connection protection
• Actuator default protection
• Speed signal Lose protection
• Over-speed & External high Level input Alam

Environmental

Ambient operating temperature range   - 40 ~ 85 °C

Relative humidity   95%

Input Power

Supply           24VDC

Actuator current range   2.5-10A(continuous)

Speed sensor signal   1-20v

Characteristics

Speed fine adjustment range   ± 100% r / min

Frequency fluctuation          ± 0.25%

Steady speed droop           0~3% (variable)

Temperature drift               ± 1% (maximum)

2)Technical Data Of S6700E:
