ESD5522 speed governor

Brief introduction：

The ESD5522E /5525 Series speed control unit is anall electronic device designed to control engine speed with fast andprecise response transient load changes. ...MORE >>

Classification：Speed Controller

Size：20X15X8 cm

Weight：1KG

Price：

Introduction

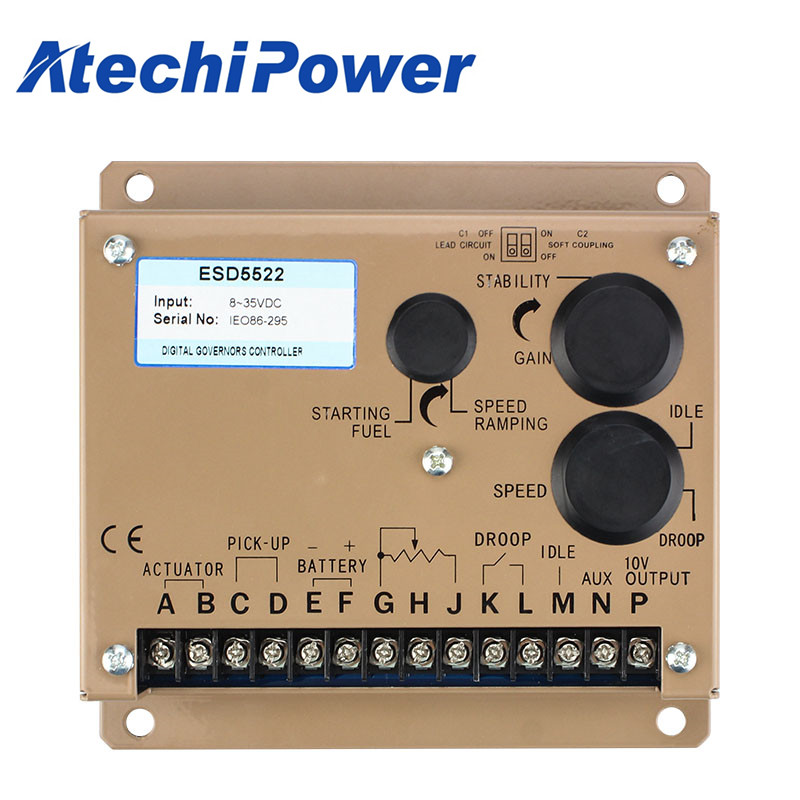

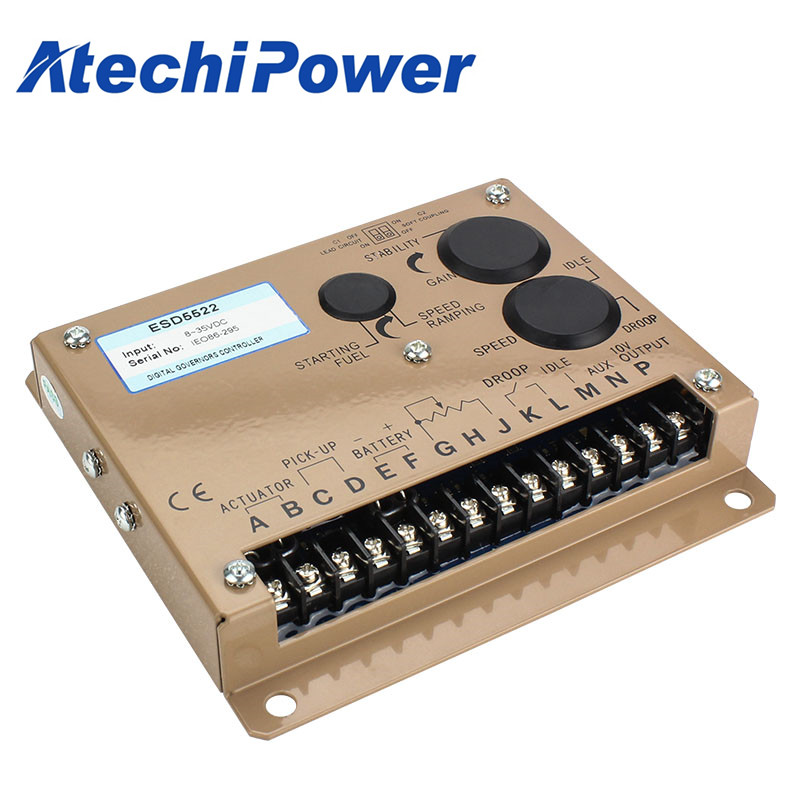

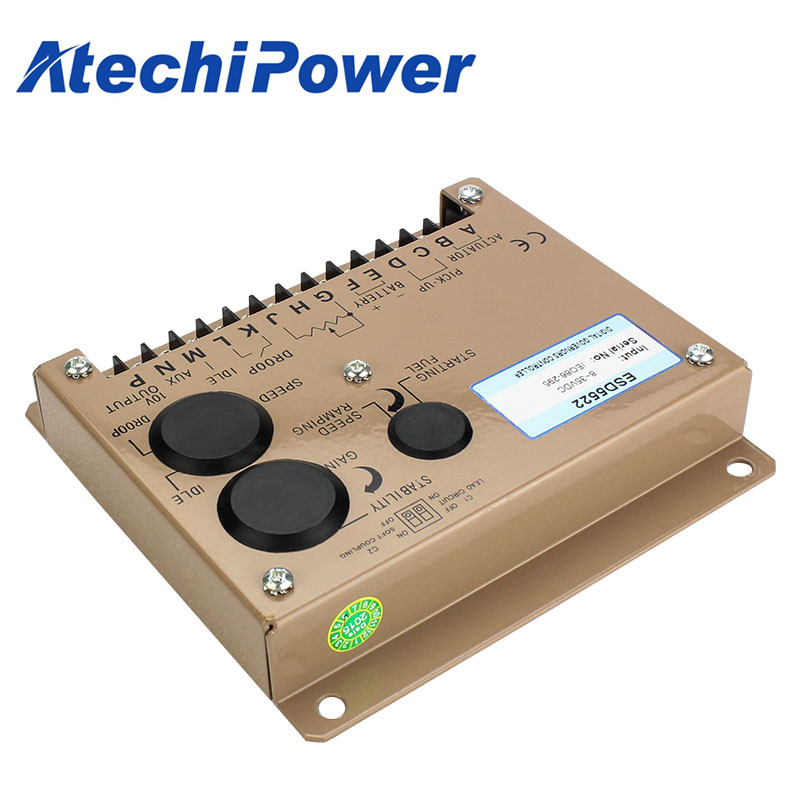

The ESD5522E /5525 Series speed control unit is an

all electronic device designed to control engine speed with fast and

precise response transient load changes.

(PER5520E is designed for EFC series.)

Isochronous Operation/Steady Stability---- +/-0.25%

or better Supply----12 or 24 VDC Battery Systems(transient&reverse voltage protected)

Power Consumption----50 ma continuous plus acutator current

Maximum Actuator Current at 25celsius (77celsius F)----10 Amps continuous

Specification

Input	Supply	12 or 24 VDC Battery System (Transient and Reverse Voltage)
	Polarity	Negative Ground (Case Isolated)
	Power Consumption	50 ma continuous plus actuator current
	Actuator Current Range @ 25 Deg. C - (Inductive Load)	Min.2.5 Amps; Max. 10Amps continuous
	PID	PID parameter is different with ESD5500
	Speed Sensor Signal	0.5-120 Volts RMS
Performance	Isochronous Operation/Steady State Stability	±0.25% or better
	Speed Range/Governor	1K to 7.5K Hz continuous
	Speed Drift with Temperature	±1 Max
	Idle Adjust CW	60% of set speed
	Idle Adjust CCW	Less than 1200 Hz.
	Droop Range	1-5% regulation
	Droop Adj. Max. (K-L Jumpered)	400 Hz., ±75Hz. Per 1.0A change
	Droop Adj. Min. (K-L Jumpered)	15Hz., ±6Hz. Per 1.0A change
	Speed Trim Range	±200 Hz
	Remote Variable Speed Range	500 - 7.5 Hz. Or any part there of
	Terminal Sensitivity J	100 Hz., ± 15Hz / Volt @ 5.0 K Impedance
	Terminal Sensitivity L	735 Hz., ±60 Hz / Volt @ 65 K Impedance
	Terminal Sensitivity N	148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance
	Terminal Sensitivity P	10 VDC Supply @ 20 ma Max
Environmental	Ambient Operating Temperature Range	-40 to +85 Deg. C
	Relative Humidity	Up to 95%
	All Surface Finishes	Fungus Proof and Corrosion Resitant
Reliability	Vibration	1G at 20 to 100 Hz.
Reliability	Testing	100% Functionally Tested

Note: The performance parameters in the frequency when measuring 4000Hz
